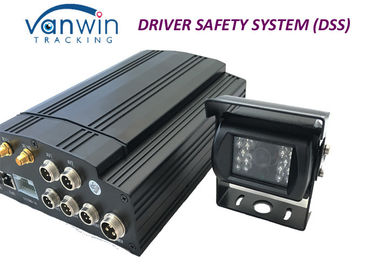

4 channel 12V 24V HD Video Recorder MDVR With Driver Fatigue Monitoring System

4 channel 12V 24V HD Video Recorder MDVR With Driver Fatigue Monitoring System

    • 4 channel 12V 24V HD Video Recorder MDVR With Driver Fatigue Monitoring System
    • 4 channel 12V 24V HD Video Recorder MDVR With Driver Fatigue Monitoring System
    • 4 channel 12V 24V HD Video Recorder MDVR With Driver Fatigue Monitoring System
    • 4 channel 12V 24V HD Video Recorder MDVR With Driver Fatigue Monitoring System
  • 4 channel 12V 24V HD Video Recorder MDVR With Driver Fatigue Monitoring System

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW619HD-GS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month ; 4 channel 12V 24V HD DVR Recorder MDVR With Driver Fatigue Monitoring System
    Contact Now
    Detailed Product Description
    Features: GPS , 3G , G-sensor , Alarm Input , UPS Technology Power Supply: 8V-36V Wide Power Supply
    Storage Capacity: 1TB HDD Or SSD Software Support: Client,server,playback Software
    Compression Format: H.264 Main Profile APN: Can Customize
    Warranty: 16 Months Customized Function: FRID, Finger Identification, APN, IR Port, Customized Softwares
    Application: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Cameras: Driver Front Camera With Fatigue Sensor, 3 Normal Camera With Analog/AHD
    Weight: Net: 2200g, Gross: 3500g Size: 160(W) X62(H) X200(D) Mm

    4 channel 12V 24V HD DVR Recorder MDVR With Driver Fatigue Monitoring System

    Fatigue and distraction are an inevitable force of nature. Their consequences can be costly, even fatal. Intervene before it’s too late with a driver fatigue monitoring system. The Driver Safety System is a non-intrusive, in-cab fatigue detection technology that instantly alerts operators the moment fatigue or distraction is identified.



    Driver fatigue technology works by monitoring eye-closure duration and head pose. If the Driver Safety System detects a fatigue or distraction event the operator is immediately alerted through configurable in-vehicle seat vibration and / or audio alarm.



    The fatigue or distraction event detected by the driver fatigue monitoring system is sent to a 24-hour monitoring center to classify and confirm the event. It works with other cameras as the complete vehicle security system to KEEP OPERATORS ALERT AND ALIVE.



    Main Features



    1) Support 1-4 cameras

    2) H.264 compression format

    3) 2.5“ SATA 1TB Hard disk or SSD

    4) GPS tracking

    5) 3G remote control

    7) 4 alarm input, 1 alarm output

    8) 2 way intercom

    9) Patent UPS continuously working to protect data upon sudden power-off



    Specification



    Item

    Description

    OS

    Linux

    Graphics Operation Interface

    System parameters can be set through external display and remote controller

    Security Management

    2-level management for user password, administrator password, supporting encrypted transmission

    Video and Preview

    Video Input, Output

    4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

    OSD

    Character superposition function, information superposition of time and date, device ID and GPS, etc.

    Video Compression Format

    Compression coding. Applying Hisilicon hi-performance processor.

    Dual-Stream

    Supported

    Preview Function

    Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images

    Frame Rate

    PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

    Resolution

    CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most

    Quality

    Grade 1 to grade 5 for selection (descending)

    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    Audio

    Audio Input, Output

    4-channel input, 1-channel output

    Compression Format

    G.726 coding

    Recording

    Storage Medium

    Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;

    File Format/ System

    ASF/FAT32

    Video Strategies

    Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

    Video Search

    Searching by time, type, storage device and other conditions

    Video Playback

    Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

    Alarm

    Alarm Input/ Output

    6-channel on/off signal alarm input, 1-channel on/off signal alarm output

    Alarm Recording

    Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

    Storage Space Alarm

    Supporting settings for alarm of storage space

    Function Alarm

    GPS overspeed alarm, acceleration alarm, motion detection alarm

    Communication Ports

    RS232, RJ45 10M/100M self-adaptable network interface

    Wireless Transmission (Optional)

    Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;

    Compatible with GPRS, EDGE;

    Embedded Wi-Fi module;

    GPS (Optional)

    Supporting external GPS

    Remote Data Transmission Channel Selection

    Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

    PTZ Control

    Supporting PTZ control realized by local ad client software;

    Parameter Configuration

    Supporting parameter configuration functions for mobile DVR coding channel;

    G-Sensor

    Embedded

    System Upgrading

    Supporting SD card, hard drive upgrading and remote upgrading

    Power Supply and Power Consumption

    Power Supply

    1. ACC on/off

    2. Hard drive lock on/off

    3. Delayed shutdown

    4. Timed on/off

    Input Voltage

    DC:+8V ~ +36V

    Output Voltage

    +12V@4*0.5A; +5V@0.5A

    Power-off Protection

    With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

    Power Consumption

    <10W in normal operation; <0.5W in standby mode

    Operating Environment

    Temperature

    Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

    Humidity

    10% to 95%

    Dimensions

    160(W) x62(H) x200(D) mm.

    Weight

    Net: 2200g, Gross: 3500g























































































































































































    Our Advantages



    1. Professional Manufacturer of MDVR.We can produce 4CH or 8CH DVR for optiona.

    Customize Different Projects like VPN MDVR, RFID, Video people counter system, Train Surveillance Customization, Oil Sensor and so on. They all are some of our examples.



    2. The World Class Anti-vibration Technology with Very Stable Quality



    3. Very Reasonable Price for Military Demand DVR



    4. Our DVR, our Software, our Best Service. Welcome you.
