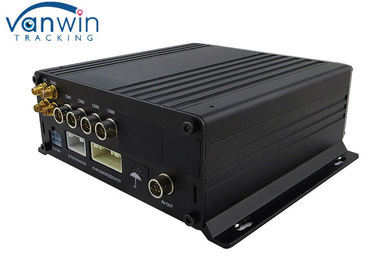

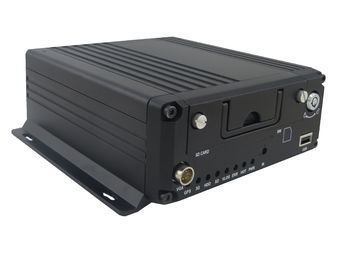

4CH HD 1080P Mobile NVR Support Dahua Hikvision Ip Camera 3G Wcdma Gps Car Mobile DVR

4CH HD 1080P Mobile NVR Support Dahua Hikvision Ip Camera 3G Wcdma Gps Car Mobile DVR

    • 4CH HD 1080P Mobile NVR Support Dahua Hikvision Ip Camera 3G Wcdma Gps Car Mobile DVR
    • 4CH HD 1080P Mobile NVR Support Dahua Hikvision Ip Camera 3G Wcdma Gps Car Mobile DVR
    • 4CH HD 1080P Mobile NVR Support Dahua Hikvision Ip Camera 3G Wcdma Gps Car Mobile DVR
  • 4CH HD 1080P Mobile NVR Support Dahua Hikvision Ip Camera 3G Wcdma Gps Car Mobile DVR

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW710NVR-GSW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month; 4CH HD 1080P Mobile NVR support dahua hikvision ip camera 3G wcdma gps car mobile DVR
    Contact Now
    Detailed Product Description
    Power Name: HDD Mobile NVR Storage Capacity: HDD / SSD, Can Support 2TB HDD
    Functions: 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 6CH Alarm Input, Lan Port Software Support: Client, Server, Playback Software
    Accessories: HDD, Cameras, Extension Cables, Monitor, Sound Pik-up Customization: RFID, APN, IR Port, Softwares, LOGO And Ect.
    Network: WCDMA, CDMA200, TDD-LTE, FDD-LTE Resolution: 1080P/720P/CIF/HD1/D1
    SD Card: Support Power Supply: 8~32V Wide Voltage
    AV Inputs: 4CH Video Input And 4CH Audio Input Size: 187(D)*188(W)*67(H)mm

    4CH HD 1080P Mobile NVR support dahua hikvision ip camera 3G wcdma gps car mobile DVR



    Main Features



    1. Real time HD video record,1080p/720p/D1/HD1/CIF optional,video quality adjustable,support 4ch 1080p video record,2ch video output.
    2. Professional vehicle voltage design,support 8-36v wide voltage input;transient voltage can be 6-70v,over-load/over-voltage/short circuit/reverse protection for kinds of vehicle;
    3. ACC delay (max support 24 hours delay);
    4. Support 1CH CAN,OBD;
    5. Support PTZ control/pos/fuel sensor,led advertisement;
    6. Support SD card upgrading/OTA upgrading
    7. Support wireless AP hotspot;
    8. Support local picture capture when alarm trigger;
    9. 2CH alarm output,support audible&visual alarm,oil/power cut off;
    10. 8CH alarm input (door open/close;lighting;turning;braking;reversing etc),multi-alarm linkage;
    11. Support manual ,overspeed /lowspeed,parking,motiondetection,cross the border,route deviation fatigue
    12. driving,dangerous driving and lane departure, detection alarm;
    13. Support remote video/audio monitor, talk back function, remote PTZ control;
    14. Support IE web configuration,support MSG/software configuration/Software get configuration;
    15. Auto record/timing record /alarm record working mode option,for different request;display&record vehicle driving status/plate no;driving route,speed information for easily management;

    16. Special file predistribution function, solve the file fragmentation of disk re-writing;
    17. Watch dog function, protect device and video lost from device reboot;
    18. HDD+SD card record (support 2.5”1TB HDD and 128GB SD card )shockproof design protect data lost from shock&dust;
    19. DC12v voltage output,can offer power for cameras and some other accessories;
    20. HIS solution,H.264 video compression with multi-stream record;

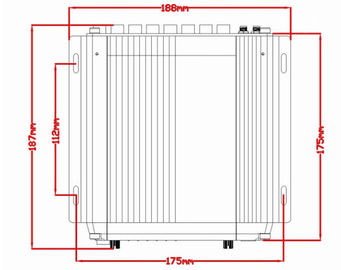

    21. Size:190mm(D)*188mm(W)*67mm(H)



    The complete kit:


    1. One MDVR with 3G/4G GPS WIFI G-sensor for Option
    2. 1~4 IP cameras with extension cables
    3. One monitor for the driver
    4. HDD 500GB/1TB/2TB
    5. Micphone, Talkback device, Panic button

    1. Standard configuration
    MDVR host 1pc
    Power cable 1pc
    I/O Cable 1pc
    Standard cables 5pcs
    Remote control 1pc
    keys 1pc
    3G/4G Antenna 1pc
    WIFI Antenna 1pc
    GPS Antenna 1pc
    User manual 1pc

    2. Optional configuration
    Cameras
    LCD monitor
    Extension cables
    Storage card
    Talkback device/Micphone
    Oil sensor/People Counter and ect.

    Main Specifications
    Item Parameter
    OS Linux
    Language Chinese/English/Others(can be customized)
    Video Compression H.264
    Operation Interface OSD menu

    Video

    Record

    System

    Video Input Support 4 CH Full real-time AHD 1080P
    Video Output 1 CH composite video output, 1CH VGA output
    Display 1/2/4 CH full screen
    Signal system PAL/NTSC (PAL @100Frame, NTSC@120 Frame
    Resolution Support 4 CH Full real-time AHD 1080P
    Record Format Synchronized A/V recording
    Audio Audio Input 4 CH
    Audio Output 1 CH
    Compression G.711
    Alarm Input 8 CH
    Output 2 CH
    Storage 2.5’’ HDD+ SD Card,each max 2TB HDD + 128GB SD Card
    Communication Port 2 CH RS232 / 2 CH RS485
    G-sensor Built in, support 3 Axis Motion Detection with user set ranges , for X,Y and Z coordinates
    Wireless communications GPS /3G /4G /WIFI optional
    GPS GPS /Glonass

    Video

    Playback

    Video Search Search video by Record Time/ Type etc
    Playback A/V,GPS,Map view,Speed,G-sensor,video files available for playback on PC.
    CMS Wireless(require Wi-Fi or cellular), real-time monitoring .GPS and alarm etc
    Operating Voltage Voltage Input 8V ~ 36V DC
    Voltage Output 12V @2.5A 5V @2.5A
    Power -off Protection All video information can be saved automatically when the power cut off, and make sure that all the files can not be damaged
    UPS External UPS battery optional, support 24 hours monitoring
    Other Operation Temperature - 20℃ ~ + 70℃
    Humidity 20% ~ 80%
    Dimension 187*188*67mm
    Weight 1.8KG
    4CH HD 1080P Mobile NVR Support Dahua Hikvision Ip Camera 3G Wcdma Gps Car Mobile DVR

    How to install?

    4CH HD 1080P Mobile NVR Support Dahua Hikvision Ip Camera 3G Wcdma Gps Car Mobile DVR

    If you're interested in the 1080P HDD Mobile DVR system above or other vehicle security system, please be free to get the high-quality solution and system with us.
