8 Channel HDD 4G GPS WIFI Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation

8 Channel HDD 4G GPS WIFI Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation

    • 8 Channel HDD 4G GPS WIFI  Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation
    • 8 Channel HDD 4G GPS WIFI  Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation
    • 8 Channel HDD 4G GPS WIFI  Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation
    • 8 Channel HDD 4G GPS WIFI  Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation
  • 8 Channel HDD 4G GPS WIFI  Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW613B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month; 8 Channel HDD 4G GPS WIFI Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Storage Capacity: HDD/SSD, Can Support 2TB
    Basic Function: 8 Cameras Monitoring With 3G Real Time, GPS Tracking,Wi-Fi Software Support: Client, Server, Playback Software
    Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Quality: The World Class Anti-vibration Technology
    System Upgrading: Supporting SD Card, Hard Drive Upgrading And Remote Upgrading Cameras: 1~8 Analog Cameras
    WIFI Download: Support Dimensions: 180(W) X60(H) X195(D) Mm

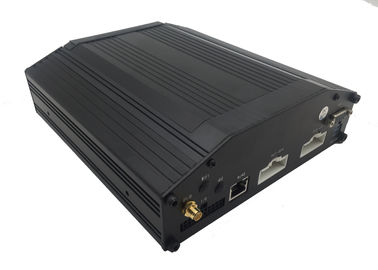

    8 Channel HDD 4G GPS WIFI Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation

    The MDVR supports 8 channel FULL 720P video recording, 3G/4G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45, RS232&485, I/O port interface for multiple outer device integration. Its storage (max 2TB) lasts more than 80 days recording.

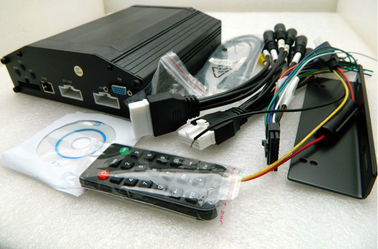

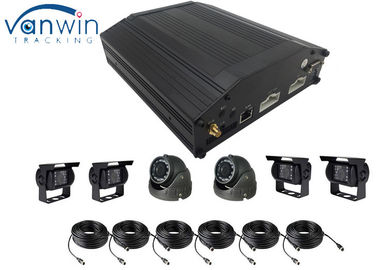

    The complete system includes:


    1. One MDVR with 3G GPS WIFI G-sensor for Option
    2. 8 cameras with extension cables
    3. One monitor for the driver
    4. HDD 500GB/1TB/2TB
    5. Micphone, Talkback device, Panic button


    Main Features



    1. H.264 video compression, multi code stream.

    2. Support 8CH 720P HD real-time video inputs. Also, support 8CH analog cameras inputs or compound inputs for 4CH HD cameras and 4CH analog cameras.

    3. 1CH VGA output is optional.

    4. With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.

    5. 8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.

    6. Support a 1T 2.5 -inch HDD and 1 256G SD card storage

    7. With watchdog abnormal restart protection function, it can better protect the machine and video.

    8. Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).

    9. Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.

    10. Support 8CH alarming inputs and 1CH independent alarm input.

    11. Optional for 1CH RS232 Serial port or 1CH RS485 extension.

    12. Support GPS/G-Sensor.

    13. Support remote operation and monitoring by 3G and 4G.

    14. Support Wifi and automatic data download.

    15. Support ministry of communications agreement, support SMS remote configuration and equipment control.

    16. Support voice broadcast, intercom and text schedule dispatch.

    17. Support fuel sensor, temperature sensor, POS, LED advertising screen.

    18. Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.

    19. With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.

    20. Support all vehicles, including bus, taxi, truck, school bus, etc.



    8 Channel HDD 4G GPS WIFI  Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation



    8 Channel HDD 4G GPS WIFI  Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation

    Specifications

    Operating System

    Linux

    Language

    English, Chinese or Customized language.

    Video Compression

    H.264

    OSD

    Support time, date, vehicle ID, image, etc.

    GUI

    OSD Interface

    Can external connect to LCD and set the system specifications

    by remote

    Video and Recording

    Video Input

    4CH 1080P/720P AHD/Analog/Compound video input, aviation connector,

    1.0Vp-p, 75Ω

    Video Output

    1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω.

    Support 1CH full screen and 4CH division.

    Preview

    Single/4CH Pictures Preview, support full screen of event trigger or

    back view of car reversing

    Recording

    Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 720P

    Resolution

    Recording

    Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest.

    Quality

    Video Rate

    PAL:100 fps,CCIR625line,50 scenes

    NTSC:120 fps,CCIR525line,60 scenes

    CIF:256Kbps - 1.5Mbps,8 grades image quality for optional

    HD1:600Kbps - 2.5Mbps,8 grades image quality for optional

    D1:800Kbps - 3Mbps,8 grades image quality for optional

    720P:800Kbps - 4Mbps,8 grades image quality for optional

    1080P:2Mbps - 6Mbps,8 grades image quality for optional

    Recording Mode

    Default automatic video recording, support ignition video recording,

    schedule video recording, alarm video recording, etc

    Audio

    Audio Input

    4CH Aviation connector inputs

    Audio Output

    1CH Aviation connector output, Output level:1V - 2V

    Compression format

    G.726, Speed for 8KB/s

    Alarm Input

    4CH level alarm inputs

    Alarm Output

    1CH level signal output

    Communication Interface

    Optional for 1CH RS232 or 1CH RS485

    Video Storage

    Storage

    Support a 2T 2.5 -inch HDD and 1 256G SD card storage

    Upgrade

    Support SD card local upgrade, remote upgrade automatically

    Method

    File Format

    H.264 general video format

    File System

    FAT32 exclusive file system

    Video Playback

    Video Search

    Search recorded video files by recording time and recording method

    Playback

    Support at max 4 channel synchronous playback, suspend,

    forward, backward

    Support 2/4/8/16 times speed forward or backward

    Security Management

    User Password or administrator password management,

    support screen locked

    Expansion functions

    TTS Voice broadcast

    Support TTS voice broadcast

    Series port expansion

    Support external equipment connecting for advertising screen,

    PTZ control, fuel sensor, etc

    Power and

    Power Management

    Self-adaptive wide voltage input, with protect functions for overload,

    undervoltage, short circuit, reversing connection, etc

    Consumption

    Support time setting startup/shutdown, delayed power off function

    Power and

    Consumption

    Input Voltage

    DC:+8V - +36V

    Output Voltage

    +12V-1.5A,+5V-1.5A

    Power-off Protection

    UPS technology to protect all recorded information automatically

    and make sure the files undamaged in case of sudden power off.

    Consumption

    Normal working < 14W, standby < 0.5W

    Working environment

    Temperature

    -20℃ - +70℃

    Humidity

    20% - 80%

    SD Card Type Series

    Dimension

    150*137*60MM

    Weight

    1.4KG



    8 Channel HDD 4G GPS WIFI  Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation

    8 Channel HDD 4G GPS WIFI  Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation

    Installing Cases from Customers

    8 Channel HDD 4G GPS WIFI  Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation

    Cameras for Option



    8 Channel HDD 4G GPS WIFI  Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation
