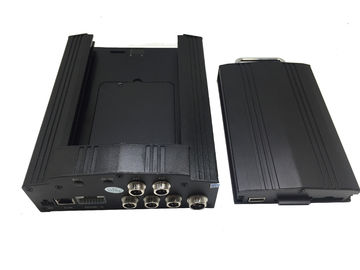

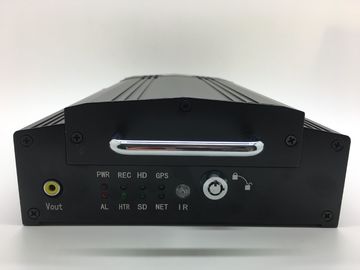

Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS

Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS
Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS

Large Image :  Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW619HD-S
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month; Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS

Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS

Description
Power Name: 4 Channel Mobile Dvr Storage Capacity: HDD / SSD, Can Support 2TB HDD
Functions: 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 6CH Alarm Input, Lan Port Software Support: Client, Server, Playback Software
Accessories: HDD, Cameras, Extension Cables, Monitor, Sound Pik-up Customization: RFID, APN, IR Port, Softwares, LOGO And Ect.
Network: WCDMA, CDMA200, TDD-LTE, FDD-LTE Power Supply: 8~32V Wide Voltage
RS232 / RS485: Supported Panic Button: Support
I/O Inputs: 6CH Alarm Inputs And 2ch Alarm Outputs Cameras: Analog / AHD
High Light:

4 camera car dvr

,

4 channel car dvr

Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS​



1. Vanwin offer a wide selection of mobile digital video recorders, Car cameras, monitors, the complete system, suitable for a range of in-car security and surveillance applications, from managing safety to improving vehicle performance.



2. The benefits of installing a mobile surveillance system include reducing unauthorized use of vehicles by capturing unapproved use of your vehicles during non-work hours; controlling fuel costs by eliminating unapproved or extended journeys; and increasing vehicle safety and security with 24/7.



3. 4 Channel Mobile DVR are designed to withstand the rigors of continuous use in a range of vehicles, on the road and off it. And with advanced features like built-in GPS, G-sensor, anti-shock housing, Overvoltage protection, 4G, Hotspot and ect.



The complete kit:


1. One MDVR with 3G GPS WIFI G-sensor for Option
2. 1~4 cameras with extension cables
3. One monitor for the driver
4. HDD 500GB/1TB/2TB
5. Micphone, Talkback device, Panic button

1. Standard configuration
MDVR host 1pc
Power cable 1pc
I/O Cable 1pc
Standard cables 5pcs
Remote control 1pc
keys 1pc
3G/4G Antenna 1pc
WIFI Antenna 1pc
GPS Antenna 1pc
User manual 1pc

2. Optional configuration

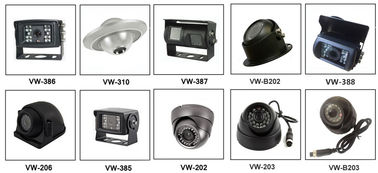

Monitoring Cameras 1~4 pcs
LCD monitor
Extension cables
Storage card
Talkback device/Micphone
Oil sensor/People Counter and ect.



Main Features



1. H.264 Video Compression, multiple steam recording, Support 4CH 720P HD video recording,

Support 4CH 720P AHD input/ 4CH analog SD camera input/ 2CH HD + 2CH SD mixed input;
2. High quality real time recording, 720P/CIF/HD1/D1 Optional, quality adjustable;
3. Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit               protection, to meet kinds of car application;

4. Support 12VDC/2.5Amp output voltage, power supply for Camera/Screen etc;
5. 1SSD/HDD+1SD Card Support, each max 2TB+128GB,,protect DVR from shock & Dust damage;
6. Watchdog abnormal restart function, protect SD Card and Record;
7. Exclusive File System protect data completeness,prevent SD Card fragment;
8. ACC Delay off, can set 24 hours;
9. Auto Record/Manual Record/Alarm Record/Timed Record etc working mode to meet different                    requirements;
10. Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
11. Support GPS/ G-sensor Optional;
12. Optional single RS232 serial port or single RS485 extension
13. 6CH Alarm input (Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
14. 2CH Alarm Output;
15. Support picture snap when alarm
16. Easily Smart GUI Interface, saving time in device setting;
17. Can upgrade the software via SD card/HDD.
18. Stability Aviation plug, easily connecting and high shock proof;



4 Channel mobile dvr​ Specifications



Item Description
OS Linux
Graphics Operation Interface System parameters can be set through external display and remote controller
Security Management 2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview Video Input, Output 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
Video Compression Format Compression coding. Applying hisilicon hi-performance processor.
Dual-Stream Supported
Preview Function Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images
Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
Resolution CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most
Quality Grade 1 to grade 5 for selection (descending)
Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio Audio Input, Output 4-channel input, 1-channel output
Compression Format G.726 coding
Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;
File Format/ System ASF/FAT32
Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
Video Search Searching by time, type, storage device and other conditions
Video Playback Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm Alarm Input/ Output 6-channel on/off signal alarm input, 1-channel on/off signal alarm output
Alarm Recording Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
Storage Space Alarm Supporting settings for alarm of storage space
Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
Communication Ports RS232, RJ45 10M/100M self-adaptable network interface













Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS 0

Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS 1

It can support remote online monitoring by computer and Mobile APP.



Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS 2

Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS 3

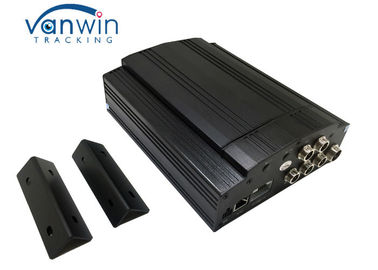

How to install the 4 Channel Mobile DVR?

Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS 4

Application



Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS 5

Compact 4 Channel Mobile DVR H.264 HDD with Panic Button Built - In GPS 6



If you're interested in the 4G HDD MDVR system above or other vehicle security system, please be free to get the high-quality solution and system with us.
