3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD

3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD

    • 3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD
    • 3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD
    • 3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD
    • 3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD
  • 3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW619C-GS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month;
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Sensor Type: Video Counting, 98% Accuracy
    Level: World Class Anti-vibration Technology Operation Interface: OSD With Mouse And Remote Control
    Scanning Style: Video Counting Data Transmission: 3g, GPS, Wifi ,gprs, Rs232/485, HDD Storage
    Camera: Binocular Cameras&Monitoring Cameras Network: 3G/4G/WIFI
    RS232/RS485: Supported Protocol: Support

    3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD



    4CH 720P 3G/4G Realtime Video GPS Tracking Mobile DVR with Bus People Counter all in one system.

    1. The Video Counting Bus People Counter with binocular lens is developed based on advanced Video Counting&image analysis technology.
    2. It judges passenger's number by capturing human characteristics such as head, shoulders, body and body's get-on& get-off Movement characteristics and obtains accurate counting results by high-speed DSP intelligent algorithm.
    3. After many year's improment and development, the core calculation has been successfully used in different application scenarios and vehicles. Normally the accuracy of statistics is over 98% and with crowded circumstances, the accuracy is over 95%.
    4. It can automatically filter backpack, luggage etc.

    Applications:

    Travel agencies passenger vehicles, bus vehicles, the company shuttle vehicles, passenger ships, stores and other vehicles.



    System functions:

    1. The number of passengers on the front and rear doors of the upper and lower passenger flow and the number of cars within the total number of separate statistics.

    2. Users can directly access the number of IE counter, the region, direction, alarm conditions and other settings, the video screen video, capture.

    3. Many people at the same time through the detection area, you can distinguish the direction of each person's flow.

    4. Generate reports on the statistics

    5. Number of counters to support multi-channel simultaneous statistics, 1 video local output, SD card storage, alarm input / output,

    RS485 output.

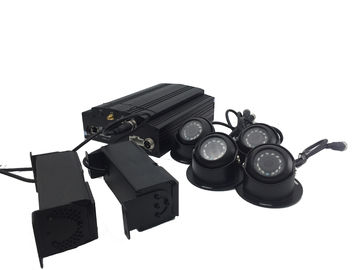

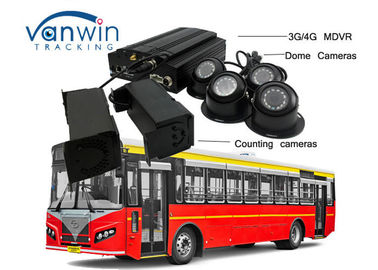

    3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter Kit includes:



    1. Main Unit(below)

    Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g



    2. Binocular Camera

    Mounted on the ceiling of the doors, counts passengers get in or out of the bus.



    3. Door Sensor

    Door open/close sensor, is used for sensing the door open or close status.



    4. 2~4 Monitoring Cameras



    5. One monitor for Option



    3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD

    Parameter
    1.1 Counting camera

    • Image Sensor:1/3 SONY
    • CCD TV System: PAL/NTSC
    • TV Lines:700TVL
    • Image Output: Synchronous sampling
    • output Lens’ Spacing:5MM
    • Len:960*576 Pixel,3.6 mm (2.8mm/3.6mm/4mm/6mm Optional)
    • Viewing Angle:55 degree
    • Installation height Range:2.1M~2.3M(3.6MM len), 1.9M~2.1M(2.8MM len),
    • 2.3M~2.5M(4MM len)
    • Detecting Door Width Range:0.4M~1.2M
    • White Balance: Auto Shutter:1/50-
    • 1/80000(s) 1/60-1/80000(s) Frame
    • rate:25 FTPS
    • Video Output Interface: Composite video output, 75Ω 1Vp-p
    • Aviation Gain: Auto
    • SNR:>48db
    • Power Supply:DC12
    • V Power:≤1W
    • Working Temperature:-30~+55℃
    • Relative Humidity:10%~90% Not condensed
    • Cooling: no active cooling, passive structure with heat
    • dissipation Product Size:155(L)*50(W)*55(H)MM
    • Weight:0.32KG



    3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD

    1.2 Door sensor

    • Contact Way: Connected when touch, disconnected when separate Max Power:10W
    • Min Switch Voltage:100VDC
    • Avalenche Voltage:200VDC Max Switch
    • Current:0.5A Max Load Current:1A
    • Max Contact Resistance:100mΩ
    • Min Insulation Resistance:10~10Ω Moving Time:0.4ms
    • Bounce Time:0.3ms
    • Release Time:0.05ms
    • Max Working Frequency:5000±400HZ Sensitivity:07-10AT
    • Minimum Reset Index:5AT Max Contact
    • Capacity:0.3pF Housing Material: Zinc Alloy
    • Product Color: Gray
    • Working Temperature:-30℃~80℃ Working Relative
    • Humidity:≤95%(40℃)
    • Sense Magnetic /Release Distance:35-45MM 3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD



    3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD



    It's installed closed to the door like the picture shows below:



    3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD

    3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD

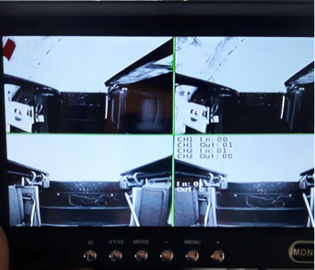

    Platform show



    Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.



    3G / 4G Real-Time Monitoring Camera recorder with Bus People Counter GPS Tracking OSD



    FAQ:



    1)What purpose does the sensor serve?

    The sensor is designed to count the number of bus passengers getting on or off.
    All passengers are counted regardless of their payment method (cash, pass, welfare ticket, or discount ticket).

    2)How is it used?
    The sensor can be used to get information on the usage status and crowding of bus passengers.
    Take advantage of the sensor's abilities to create an optimum time table by knowing the number of passengers getting on or off at a particular stop, at what times, on which lines, and in which zones.
    3)What type of sensor is it?

    The sensor (camera) is installed in the bus ceiling near an entrance and exit.
    It is compact and easy to install.
    A single sensor can count people getting both on and off.



    Please contact us for specific manual in details
