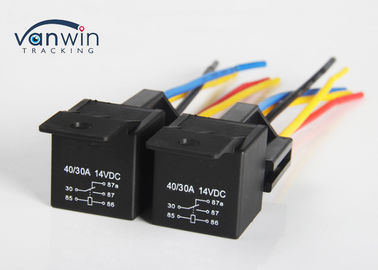

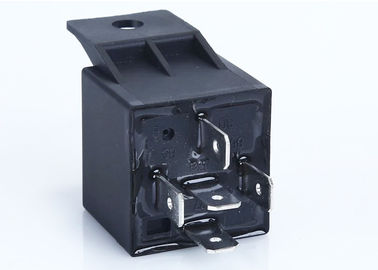

Copper Coil 5 Pin 12V 24V 40amp AgSno2 Car Fuse Relay

Copper Coil 5 Pin 12V 24V 40amp AgSno2 Car Fuse Relay
Copper Coil 5 Pin 12V 24V 40amp AgSno2 Car Fuse Relay Copper Coil 5 Pin 12V 24V 40amp AgSno2 Car Fuse Relay Copper Coil 5 Pin 12V 24V 40amp AgSno2 Car Fuse Relay Copper Coil 5 Pin 12V 24V 40amp AgSno2 Car Fuse Relay

Large Image :  Copper Coil 5 Pin 12V 24V 40amp AgSno2 Car Fuse Relay

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW280-R
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: 25pcs/box, 500pcs/ctn, 32.5*32.5*29.5CM, 19KG/21KG
Delivery Time: 1~3 days for sample and small orders, 5~7 days for big order
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500000 Piece/Pieces per Month

Copper Coil 5 Pin 12V 24V 40amp AgSno2 Car Fuse Relay

Description
Voltage: DC12V/24V Contact Form: 1A, 1B, 1C, 1U, 2A
Rated Voltage: 24V Max.Operating Voltage: 27VDC
Material: AgSno2 Max,Operating Current: 40A
Operate/Release Time: 10ms/10ms Mechanical Llife: 1000000 Cycles
Nominal Operating Power: 1.6W, 1.8W Ambient Temperature: -40°C~+85°C
Car Make: Universal Warranty: 12 Months
High Light:

AgSno2 Auto Relay

,

Copper Coil AgSno2 Motor Relay

5 pin 12volt 24V 40 amp with bracket auto relay for Car, Motor, truck



The Fuse Relay is widely used for fog light, head light, battery control, oil pumb control, fan control, air conditioner, harness

1.Red Copper Coil
2.Cu-AG-Cr alloy Touch Point
3.Red Copper Over-current Protection
4.With Fuse,more safe,more convenient



Relay Features:

  • 40A switching capability

  • 1 form A,I form B,1 form C,

    1 form U,2 form A contact form

  • Various mounting terminations available

  • Sealed IP67 and dust cover types available

  • Outline dimensions: 28.0 X28.0X51.7

Relay Specification:

Contact Form 1A, 1B, 1C, 1U, 2A
Contact Material AgSno2
Max. Operating Current 40A
Max. Operating Voltage 27VDC
Insulation Resistance 100MΩ
Rated Load(Resistive load) 1A:40A 13.5VDC 20A 27VDC 1C:NO/NC 40A/30A 13.5VDC 20A/15A 27VDC
Dielectric Strength(Coil and Contact) 500VAC
Ambient Temperature -40°C~+85°C
Operate/Release Time 10ms/10ms
Mechanical Life 1 X106
Electrical Life(min) 1 X105
Terminal Type Terminal



Copper Coil 5 Pin 12V 24V 40amp AgSno2 Car Fuse Relay 0





Copper Coil 5 Pin 12V 24V 40amp AgSno2 Car Fuse Relay 1
