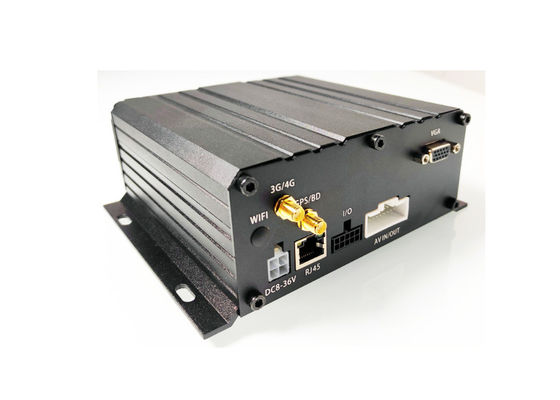

Full HD Rs232 12 Volt 4 Channel 14W H265 Car Dvr Recorder

Full HD Rs232 12 Volt 4 Channel 14W H265 Car Dvr Recorder

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW704HD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month; New 4 channels 1080P HDD Mobile DVR + HDD / SD card + 4G GPS WIFI
Get Best Price Contact Now

Detail Information

Power Supply: 8V-36V Video Format: H265
Mouse Operating: Support Storage Capacity: HDD/SSD, Can Support 2TB
Cameras: 1~4 Analog Or AHD 1080P Cameras Software Support: Client, Server, Playback Software
Product Name: Full HD 12 Volt 4 Channel Car Dvr Recorder Basic Function: 4 1080P Cameras Monitoring With 3G Real Time, GPS Tracking, Wi-Fi
Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets System Upgrading: Supporting SD Card, Hard Drive Upgrading And Remote Upgrading
High Light:

14W Car Dvr Recorder

,

H265 Car Dvr Recorder

,

Rs232 4 Channel Dvr Recorder

Product Description

Full HD 12 Volt 4 channel car dvr recorder with rs232 serial port

1. The MDVR with H265 code supports 4 channel FULL 1080P video recording,

2. 3G/4G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45,            RS232&RS485 serial port, I/O port interface for multiple outer device integration.

3. Its storage (max 2TB) lasts more than 16 days recording.



Main Specification



Operating System Linux
Language English, Chinese or Customized language.
Video Compression H.265
OSD Support time, date, vehicle ID, image, etc.
GUI OSD Interface Can external connect to LCD and set the system specifications by remote
Video Video Input 4CH 1080P/720P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω
  Support 1CH full screen and 4CH division.
Preview Single/4CH Pictures Preview, support full screen of event trigger or back view of car reversing
Recording Resolution Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 720P
Recording Quality Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest.
Video Rate PAL:100 fps,CCIR625line,50 scenes
NTSC:120 fps,CCIR525line,60 scenes
CIF:256Kbps - 1.5Mbps,8 grades image quality for optional
HD1:600Kbps - 2.5Mbps,8 grades image quality for optional
D1:800Kbps - 3Mbps,8 grades image quality for optional
720P:800Kbps - 4Mbps,8 grades image quality for optional
1080P:2Mbps -6Mbps,8 grades image quality for optional
  Recording Mode Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc
Audio Audio Input 4CH Aviation connector inputs
Audio Output 1CH Aviation connector output, Output level:1V - 2V
Compression format G.726, Speed for 8KB/s
Alarm Input 4CH level alarm inputs
Alarm Output 1CH level signal output
Communication Interface Optional for 1CH RS232 or 1CH RS485
Wireless Transmission Support built-in 3G wireless transmission, WCDMA, CDMA2000, TDD-LTE, FDD-LTE.
Location /G-sensor Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route
Video Storage Storage Support a 2T 2.5 -inch HDD and 1 256G SD card storage
Upgrade Method Support SD card local upgrade, remote upgrade automatically
File Format H.264 general video format
File System FAT32 exclusive file system
  Playback Support at max 4 channel synchronous playback, suspend, forward, backward
Support 2/4/8/16 times speed forward or backward
Expansion functions TTS Voice broadcast Support TTS voice broadcast
Series port expansion Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc
Power and Power Management Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc
Consumption Support time setting startup/shutdown, delayed power off function
Power and Consumption Input Voltage DC:+8V - +36V
Output Voltage +12V/1.5A,+5V/1.5A
Power-off Protection UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off.
Consumption Normal working < 14W, standby < 0.5W



Main Features

  1. H.265 video compression, multi code stream.
  1. Support 4CH 1080P/720P HD real-time video inputs. Also, support 4CH analog cameras inputs or compound inputs for 2CH HD cameras and 2CH analog cameras.
  2. 1CH VGA output is optional.
  3. With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
  4. 8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.
  5. Support a 2T 2.5 -inch HDD and 1 256G SD card storage
  6. With watchdog abnormal restart protection function, it can better protect the machine and video.
  7. Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
  8. Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
  9. Support 4CH alarming inputs and 1CH independent alarm input.
  10. Optional for 1CH RS232 Serial port or 1CH RS485 extension.
  11. Support GPS/G-Sensor.
  12. Support remote operation and monitoring by 3G/4G.
  13. Support ministry of communications agreement, support SMS remote configuration and equipment control.
  14. Support voice broadcast, intercom and text schedule dispatch.
  15. Support fuel sensor, temperature sensor, POS, LED advertising screen.
  16. Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
  17. With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
  18. Support all vehicles, including bus, taxi, truck, school bus, etc.

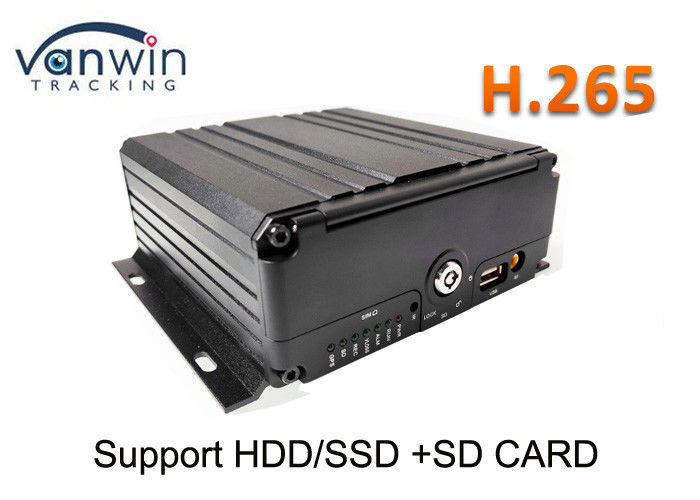

Full HD Rs232 12 Volt 4 Channel 14W H265 Car Dvr Recorder 0

The complete system includes:



1. One 4CH MDVR with 4G/3G GPS WIFI G-sensor for Option
2. 4 1080p / 960p cameras with extension cables
3. One monitor for the driver
4. HDD 500GB/1TB/2TB
5. Extend Functions: Micphone, Talkback device, Panic button, Oil sensor

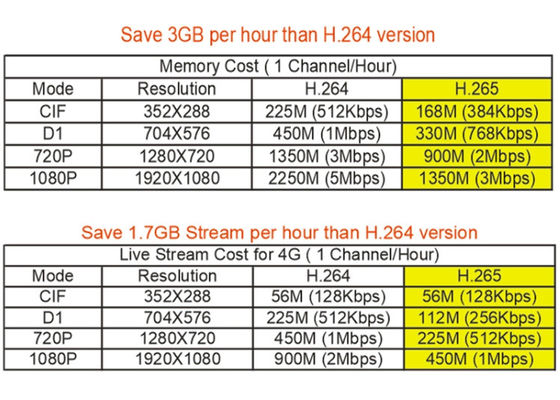

Full HD Rs232 12 Volt 4 Channel 14W H265 Car Dvr Recorder 1



HD Video welcome to view it in the link: https://youtu.be/TfEbHKxrNPQ
