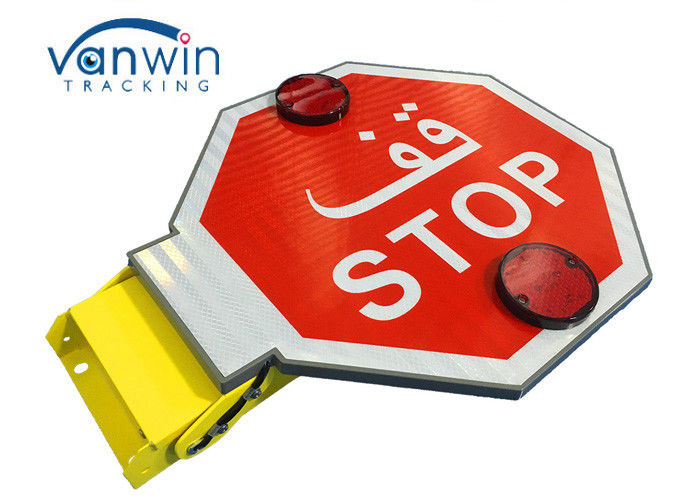

IP54 3M Reflective 450mm 12W Automatic Stop Arm Sign

IP54 3M Reflective 450mm 12W Automatic Stop Arm Sign
IP54 3M Reflective 450mm 12W Automatic Stop Arm Sign IP54 3M Reflective 450mm 12W Automatic Stop Arm Sign IP54 3M Reflective 450mm 12W Automatic Stop Arm Sign

Large Image :  IP54 3M Reflective 450mm 12W Automatic Stop Arm Sign

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-SA01
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $12.9~$16.2 per piece
Packaging Details: it's as the accessory for 3G/4G Mobile DVR
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5,000pcs per month;

IP54 3M Reflective 450mm 12W Automatic Stop Arm Sign

Description
Size: 450mm Weight: 6kg
Material: Shell-Aluminum Voltage: 12V /24V
Temperature: Work Temperature -35-85℃ Waterproof: IP65
High Light:

450mm Automatic Stop Arm Sign

,

12W Automatic Stop Arm Sign

,

IP54 Electric Parking Arm Sign

DVR Accessories 3G Remote real-time intercom / interphone with 4pin connector



The latest design and production of products meets the standards. It is mainly composed of four parts: parking warning sign, controller, parking light and buzzer. The parking signboard is made of retroreflective material on both sides. It has good warning effect, small volume and outer diameter of 450mm.
Easy to install, using international brand reflective film, with super reflective effect, long service life!



Product: school bus stop sign
Power supply:DC 12V.1A/24V.0.5A
Motor Power:12W
Reverse angle:90±5
Brand size:outside circle 450mm
Reflect film:3M reflective film (rank 2)
Surroundings temperature:-35℃~85℃
Water proof level:IP54
Flash light:4 pcs LED light
Weight:<4.5kg
Motor box size:221.5*140
Hole size:201.5*100


Main Features
1. The product meets the latest national school bus standards;
2. The waterproof of the whole machine meets the requirements of IP54 and meets the requirements for outdoor use;
3. Use super-grade GB/T18833 secondary 3M reflective film, in line with the latest school bus standards;
4. Using 4mm aluminum alloy plate and anti-UV engineering plastics, the outdoor quality is not degraded, in line with the outdoor use requirements of passenger cars;
5. The whole machine uses electrophoresis + outdoor lacquer technology, with high-grade lacquer and stainless steel screws, it will not rust in the outdoor for a long time;
6. Using the patented clutch mechanism, it can support more than 80,000 electric flips and more than 1,000 manual flips;
7. After the sign is retracted, it will automatically pick up and not shake. Any bad road conditions will not accidentally pop out. The product is reliable and extremely safe.



The indicator board is fixed on the school bus keep the position with the M8*25 bolt

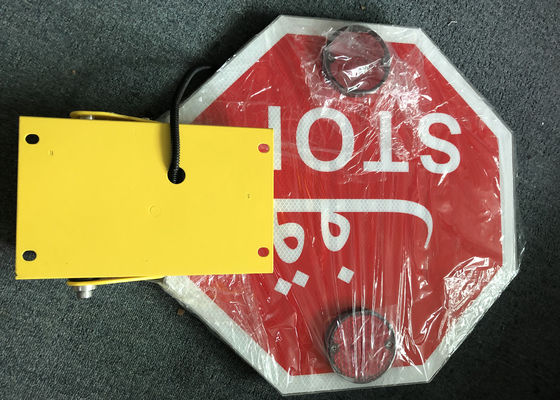

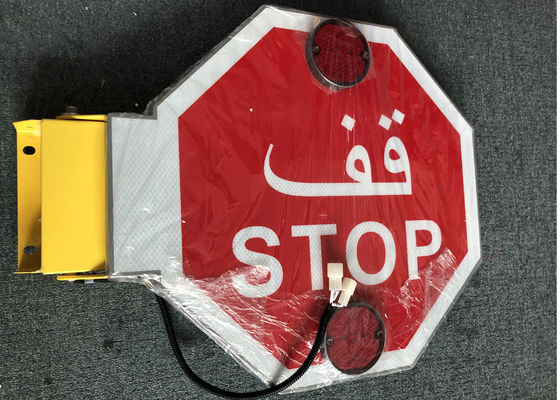

Please refer to below picture:

IP54 3M Reflective 450mm 12W Automatic Stop Arm Sign 0

IP54 3M Reflective 450mm 12W Automatic Stop Arm Sign 1
