Led display 12VDC 22mm Car Beep Parking Sensor 2.5m Cable
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-R22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | $5.9~$7 per piece |
| Packaging Details: | neutral package with box |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500,000 pcs per month; |
|
Detail Information |
|||
| Type: | Parking Sensor, Reversing Radar | Sensor: | Ultrasonic Parking Sensors |
|---|---|---|---|
| Alarm Type: | Bibi Sound | Car Make: | Universal For All Cars |
| Voltage: | 12V DC | Warranty: | 12 Months |
| High Light: | 22mm Car Beep Parking Sensor,12VDC Car Beep Parking Sensor,2.5m Cable Car Reversing Radar |
||
Product Description

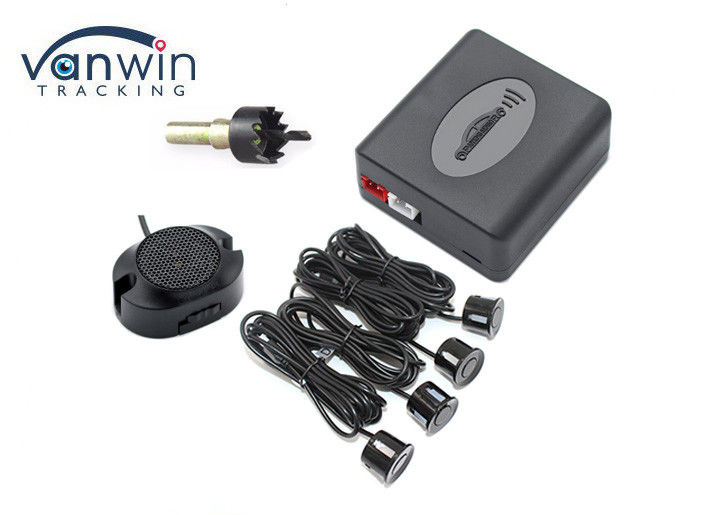

22mm car beep parking sensor system car reversing Radar with 4 sensors
Technical specification:
1,CE and FCC Approved
2,Working Voltage: 9-15V DC
3,Working Temperature : - 30C to + 80C

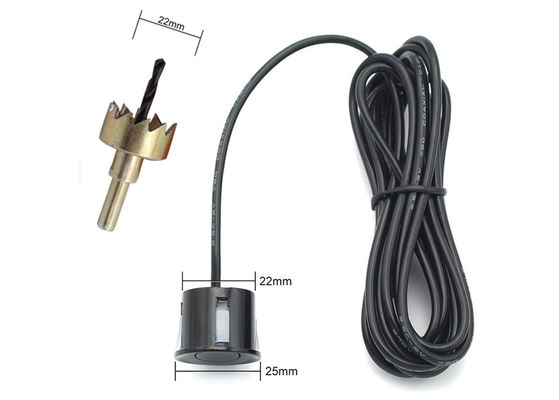

4,Sensor Dimensions:22mm
5,Sensor Detection Range :0.4m - 2.0m
6,Sensor Accuracy: +/- 0.40” (+/- 1.0cm)
7,Sensor Detection Angles: Horizontal: 60 degrees; Vertical: 60 degrees

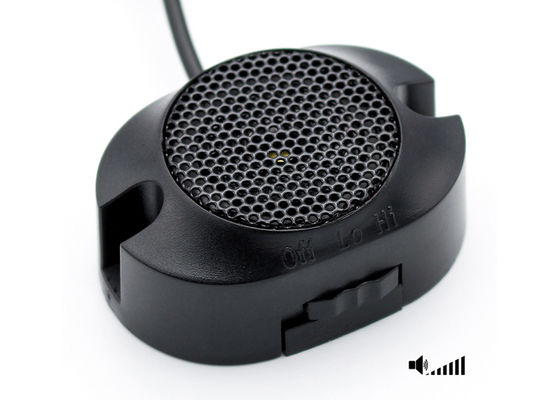

9,Beeper: can be with on/off switch to turn the sound off
11,Sensor Cable Length: 4 Rear Sensors, 2.5m

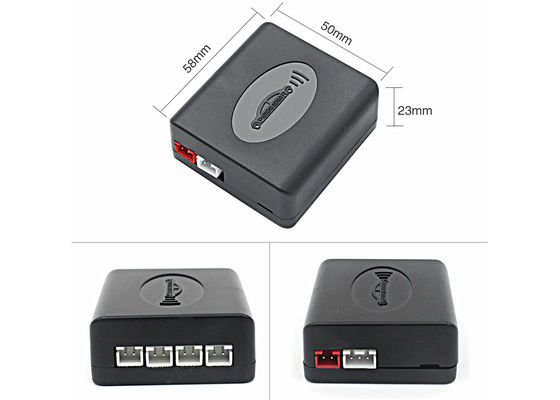

12,The control box, sensors and display connector are all waterproof.
Because of this factor the control box can be installed in places on the vehicle that are not 100% fully protected from the environment.
13, The parking sensor can be installed into your vehicle without sacrificing the beauty and attention you have placed in your vehicle.
14,The sensors come in many different colors so that they blend perfectly with the color of your vehicle.
If you can not find a kit that matches the color of your vehicle, please contact us for more sensor color chart.
Parking Sensor Technical data:
| voltage | 9DCV-15DCV |
| Rated voltage | 12DCV |
| Power cost | Max 1.5W |
| Respond distance | 0.4m2.0m |
| Alarm distance | 0m2.0m |
| error | -10mm, +1mm |
| Display mode | Led display |
| lsb | 0.1m |
| Sensor diameter | 22mm |
| Install mode | drill |
| Sensor angle | XY60 |
| work temperature | -30---+80 |
| Alarm type | Buzzer (Bi Bi.) |
| alarm volume | 65dB |
| Alarm frequency |
1.6-2.0mwhisht1.1-1.5m 1 HZslowness 0.6-1.0m:3 HZcommonly 0-0.4m 7HZhurry |
