Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW812HD-4GSW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month;
Get Best Price Contact Now

Detail Information

Network Port: RJ45 Video Format: H.264
Resolution: 8CH Full 1080P/720P/D1/CIF Storage Capacity: 2.5" SATA 1TB / 2TB HDD Or SSD
Cameras: Analog / AHD 720P / 960P / 1080P Type: 8 Channel Vehicle DVR With Hard Drive
Technology: The World Class Anti-vibration Technology Extended Function: Oil Sensor, RFID, Seat Sensor, Talkback Device, Panic Button
Basic Function: 8 Cameras Monitoring With 4G Real Time,GPS Tracking, WIFI Download Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
High Light:

2TB HDD 8 Channel Vehicle DVR

,

1080P 8 Channel Vehicle DVR

,

256Kbps 8 Channel Dvr Recorder

Product Description

4G GPS WIFI 1080P 8 Channel Vehicle DVR with Hard Drive, Support 8ch Cameras, Oil Sensor, Talkback

How does 8 Channel Vehicle DVR with Hard Drive work?

  • The system that records both the inside and outside of your vehicle to prove what really happened in any situation.
  •
  • The 8 camera device uses 4 regular HD 1080P cameras as well as 4 HD 1080P night/day cameras.
  •
  • The DVR device is a power managed and wide voltage +8V~+36VDC.
  •
  • The model is designed for all commercial vehicles, especially those that carry passengers.



8 Channel Vehicle DVR with Hard Drive Main Features



1. High end Solution, H.264 Compression, Dual Stream, 8CH AHD 1080P Video and 8CH Audio input;

2. High quality real time recording, 1080P/720P/D1/HD1/CIF Optional, quality adjustable;

3. Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection
4. 2TB HDD / SSD ,protect DVR from shock & Dust damage;

5. Exclusive File System protect data completeness;

6. ACC Delay off,can set 3- 255 mins to work;

7. Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.
8. Support GPS/GLONASS,3G/4G Module Optional,WIFI extend;
9. Support Monitoring,Intercom, PTZ, Alarm,Overspeed,Geo Fence etc through remote control platform;
10. 8CH Alarm inputs(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;

11. High level aviation interface,easily installation and better shockproof, more stable;.
12. Easily Smart GUI Interface, saving time in device setting;

13. Support the 3g / 4g network, WIFI, and wired LAN network.

8 Channel Vehicle DVR with Hard Drive​ Main Specifications



Item Description
OS Linux
Graphics Operation Interface System parameters can be set through external display and remote controller
Security Management 2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview Video Input, Output 8-channel video input, 1channel video output; 1.0Vp-p, 75Ω
OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
Video Compression Format Compression coding. Applying Hisilicon hi-performance processor.
Dual-Stream Supported
Preview Function Preview of 1-channle, 8-image stitching, supporting full screen triggered by event and switching of stitched images
Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
Resolution AHD 1080P/ 720P, D1, CIF 8channel
Quality Grade 1 to grade 5 for selection (descending)
Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection                       720P: 2048Kbps~6144Kbps

Audio Audio Input, Output 8-channel input, 1-channel output
Compression Format G.726 coding
Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
File Format/ System Special file system
Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
Video Search Searching by time, type, storage device and other conditions
Video Playback Supporting playback on local device, supporting synchronous playback of up to 8 channels and analysis on vehicle information in the files
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 1-channel on/off signal alarm output
Alarm Recording Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
Storage Space Alarm Supporting settings for alarm of storage space
Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
Communication Ports RS485,RS232, RJ45 10M/100M self-adaptable network interface
Wireless Transmission (Optional) Supporting Wi-Fi;
GPS (Optional) Supporting external GPS
PTZ Control Supporting PTZ control realized by local;
Parameter Configuration Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor Embedded
System Upgrading Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption Power Supply

1. ACC on/off

2. Hard drive lock on/off

3. Delayed shutdown

4. Timed on/off

Input Voltage DC:+8V ~ +36V
Output Voltage +12V@5*0.5A;
Power-off Protection With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
Power Consumption <10W in normal operation; <0.5W in standby mode
Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
Humidity 10% to 95%
Dimensions 160(W) x62(H) x200(D) mm.
Weight Net: 2200g, Gross: 3500g

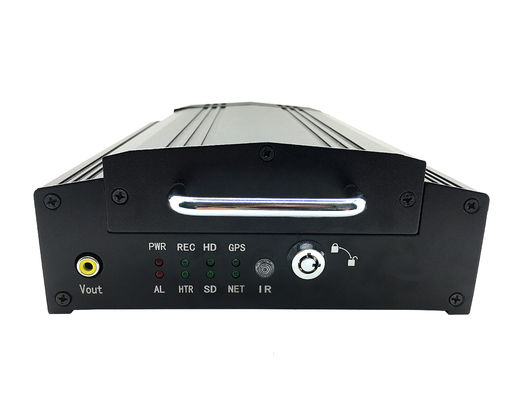

Front View

2TB HDD 1080P 8 Channel Vehicle DVR 4G GPS WIFI 256Kbps With Hard Drive 0

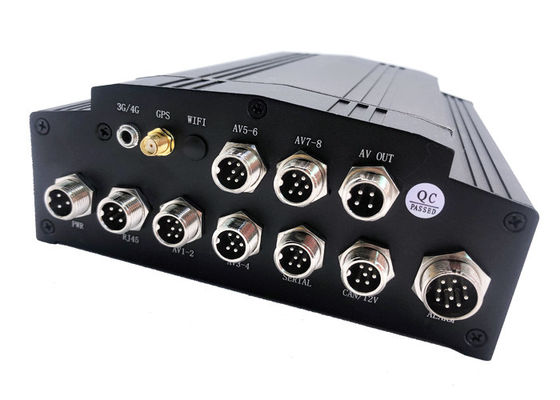

Back View

2TB HDD 1080P 8 Channel Vehicle DVR 4G GPS WIFI 256Kbps With Hard Drive 1

8 Channel Vehicle DVR with Hard Drive includes:

  1. One 8CH 1080P HDD MDVR with 3G/4G GPS WIFI for option
  2. 6-8 pcs 1080p/960P/720P cameras/ 8 Analog cameras with extension cables
  3. One Hard disk or SSD
  4. One Monitor, Sound Pick-up, Talkback device for option
  5. Canbus for option
  6. Oil sensor for Option

8 Channel Vehicle DVR with Hard Drive includes these accessories below:

2TB HDD 1080P 8 Channel Vehicle DVR 4G GPS WIFI 256Kbps With Hard Drive 2

The items is our High-end model which can customize many functions. Welcome to query.
