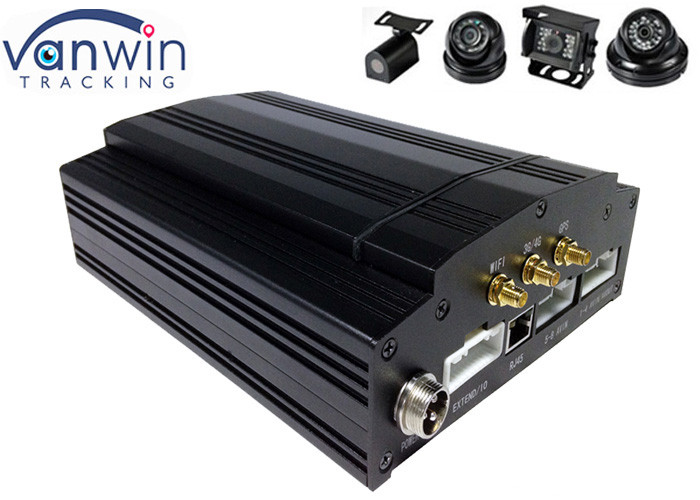

HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management

Certification
China Shenzhen Vanwin Tracking Co.,Ltd certification
China Shenzhen Vanwin Tracking Co.,Ltd certification
Customer Reviews
Your cameras look very sturdy and with good quality, that's why we order thousands of car cameras from you. And with good service. Thank you very much.

—— Juan from Mexico

You are very kind and professional. We are happy to work with you for the 125 sets SD card MDVR system.

—— Rodrigo from Bolivia

Vanwin is very reliable supplier. We have been working for more than 3 years. Last time I helped fit 2 wired MDVR system already from other company here and there but I must say they not good quality like your system.

—— Fritz from South Africa

Very pleasant cooperation with you for 3 years. We have ordered over 600 sets from you, they have worked well, we are the partner and will get bigger.

—— David from UK

The SD card MDVR system are very good. Very happy to work with you and Chinese foods are very delicious.

—— Sergio from USA

You are very professional and we decide to order 50 complete sets 8CH HDD MDVR system from you. Thank you very much

—— Luis from Chile

It has been three years for our cooperation. We like the HD Monitor and customized Cameras system, they are very clear and stable.

—— Nikolas from Ukraine

Nice nice nice, the 3G Video People Counter System is working well. I will test more with the people Counter system in the bus. We have more than 100 buses

—— Marko from Croatia

Vanwin turned out to be very good supplier. Best provider ever!

—— Francisco from Span

I'm Online Chat Now

HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management

HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management
HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management

Large Image :  HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW610GSW
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month ; Car DVR GPS Wifi For 8 Channel Mobile DVR Vehicle Fleeting Management

HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management

Description
Power Supply: 8V-36V Storage Capacity: 1TB HDD Or SSD
Basic Function: 8 Cameras Monitoring With 3G Real Time,GPS Tracking,Wi-Fi Software Support: Client,Server,Playback Software
Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Operation System: Linux
Agents: Negotiable Alarm Inputs: 6ch Alarm Inputs
High Light:

8ch h.264 dvr

,

digital video recorder

HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management





Main Features



1) 8V~36V Wide Range Power Input;

2) 8 Channel Realtime Video/ Audio Recording;

3) Supports max 2TB HDD and SD card;

4) Motion Detect/ G-Sensor/ Alarm Record/ High Speed/ Low Speed Alarm;

5) 6 I/O Alarm Input & 1 Alarm Output;

6) UPS Technology (3~5s Power-off delay after power cut);

7) Max. 4 Hours Power-off Delay after ACC-off;

8) GPS Tracking

9) 3G/ 4G Remote View on PC or Smartphone;

10) Supports talkback function (2 Ways Audio);

11) Geo-Fence/ Remote Engine Stopping/ Remote Oil Cut, etc;

12) 98% Accuracy Passenger Counting (Optional)----NEW technology

13) Welcome OEM ODM for VPN MDVR or 3G DVR with RFID , We Have More Examples for Customization.





Specification



Item

Description

OS

Linux

Graphics Operation Interface

System parameters can be set through external display and remote controller

Security Management

2-level management for user password, administrator password, supporting encrypted transmission

Video and Preview

Video Input, Output

8-channel video input, 1channel video output; 1.0Vp-p, 75Ω

OSD

Character superposition function, information superposition of time and date, device ID and GPS, etc.

Video Compression Format

Compression coding. Applying Hisilicon hi-performance processor.

Dual-Stream

Supported

Preview Function

Preview of 1-channle, 8-image stitching, supporting full screen triggered by event and switching of stitched images

Frame Rate

PAL: 200 frames/s, up to 25 frames/s per channel; NTSC: 240 frames/s, up to 30 frames/s per channel

Resolution

CIF, HD1 and D1 for selection, supporting 2 channels of D1  6 channels of CIF at the most

Quality

Grade 1 to grade 5 for selection (descending)

Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio

Audio Input, Output

4-channel input, 1-channel output

Compression Format

G.726 coding

Recording

Storage Medium

Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;

File Format/ System

ASF/FAT32

Video Strategies

Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

Video Search

Searching by time, type, storage device and other conditions

Video Playback

Supporting playback on local device, supporting synchronous playback of up to 8 channels and analysis on vehicle information in the files

Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

Alarm

Alarm Input/ Output

6-channel on/off signal alarm input, 1-channel on/off signal alarm output

Alarm Recording

Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

Storage Space Alarm

Supporting settings for alarm of storage space

Communication Ports

RS232/485, RJ45 10M/100M self-adaptable network interface

Wireless Transmission (Optional)

Embedded Wi-Fi module;

GPS (Optional)

Supporting

Remote Data Transmission Channel Selection

SupportingWi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

PTZ Control

Supporting PTZ control realized by local;

Parameter Configuration

Supporting parameter configuration functions for mobile DVR coding channel;

G-Sensor

Embedded

System Upgrading

Supporting SD card, hard drive upgrading and remote upgrading

Power Supply and Power Consumption

Power Supply

1. ACC on/off

2. Hard drive lock on/off

3. Delayed shutdown

4. Timed on/off

Input Voltage

DC:+8V ~ +36V

Output Voltage

+12V@8*0.5A; +5V@0.5A

Power-off Protection

With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

Power Consumption

<10W in normal operation; <0.36W in standby mode

Operating Environment

Temperature

Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

Humidity

10% to 95%

Dimensions

160(W) x62(H) x200(D) mm.

Weight

Net: 2200g, Gross: 3500g






Pictures



HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management 0

HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management 1

HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management 2





Installation



HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management 3



About US



HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management 4



HD 1080P Video Recorder 8 Channel Mobile DVR Vehicle Fleeting Management 5





RFQ



1) The server software is free? What are the system requirements to use this software?

Yes, it is free of charge.For server setup, you need to buy a static IP adress from your local network provider, and then the computer should

be with good performance (HDD capacity should be above 500GB, Memory above 4G, CPU above 2G, with dual core,

Network interface should be 100 Mega or 1000 mega.

What Operating system needs to be used? Windows 7 or 8 or Windows server? Can the WIFI auto download

software be placed on the same system?

RE: yes, you could use windows system, 7 or 8 are both okay. Also the wifi auto download software are with the same

system. In fact, our current software are all based on windows system(only Clients is with android system)

3) When we start using your server and after some time we build our own,can the IP address in the

units be changed remote or do we do this by wire?

If you build your own server, then you could change the DVR local settings by manual. After you used your own server,

then you could run the server TOOl software, then you could remotely change the settings of your vehicles, this is no problem.
