4 Channel Basic Mobile DVR with Video Camera School Bus CCTV System
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW618HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Dual Stream: | Support |
|---|---|---|---|
| Software: | Client, Playback Software | Main Feature: | GPS 3G WIFI For Option |
| Resolution: | AHD 720P | Type: | 4 Channel Basic Mobile DVR With Video Camera School Bus CCTV System |
| Storage: | 128GB SD Card *2 Slot | OEM/ODM: | YES .also Can Customize |
| High Light: | 4 camera car dvr,4 channel car dvr |
||
Product Description

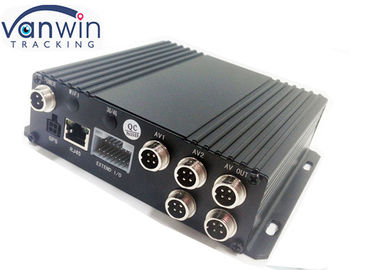

4 Channel Basic Mobile DVR with Video Camera School Bus CCTV System
Specifications
4ch or 8ch CCTV system allow live video for monitoring everything happening in the vehicle ,and store the video in SD card or HDD to playback later .Especially when car accident ,theft happens, the system is the key evidence ,so very necessary for vehicle safety management .
Vehicle company can at the same monitor over 3000 vehicles at the same platform ,check GPS tracking ,what pasengers and drivers are doing ,prevent oil theft and so on.
|
Video |
Video input |
4CH Video Inputs (1.0Vp-p/ 75 Ohms) |
|
Video output |
1CH Video output (1.0Vp-p/ 75 Ohms) |
|
|
Preview |
1 CH/ 4 CH Preview. |
|
|
Recording Ratio |
PAL: 25 Frame/s; NTSC: 30 Frame/s |
|
|
Image Compression |
H.264 Main profile |
|
|
Audio |
Audio input |
1-CH |
|
Audio output |
1-CH |
|
|
Recording mode |
Audio & Video sync. |
|
|
Image processing & Storage
|
Video Quality |
D1/HD1/CIF adjustable for each channel; Highest Video Quality: 4CH 720P |
|
Bit Rate |
D1: 800Kbps~3Mbps, |
|
|
HD1: 600Kbps~2Mbps, CIF: 256Kbps ~ 1.5Mbps; 720P:4Mb per second for one channel |
||
|
8 levels optional. |
||
|
Storage |
two sd cards *128GB SD Card (maximum) |
|
|
Alarm |
G-sensor Alarm |
Yes |
|
Wireless
|
3G |
Built in WCDMA/ CDMA2000 Module (Optional) |
|
Wi-Fi |
Built in Wi-Fi Module (Optional) |
|
|
GPS |
Built-in GPS module |
|
|
G-Sensor |
Yes |
|
|
Upgrade |
Support SD card Firmware Upgrading |
|
|
Operation Environment |
Temperature |
-25 degrees to +70 degrees |
|
Humidity |
10% to 95% |
|
FAQ
1) Can we get our own look and feel for the client when we have our own?
Re: As for the Clients app, we could add your logo or your company name on it if you need, but the others, like menus, functions, structures etc are the same. You could not change the Clients software even you have your own server since the software is developed by our technician, only they could change or decorate.
2) Is it correct that when we want to connect audio, we can connect a camera less to the system?
Re: You mean you want to hear the voice when you see the video? If so, no need to connect less camera, you just need to buy a sound pickup to connect together with one or two of the cameras, then the one or two channel will be with audio.
3) Is it possible to rename the vehicle ID? For example for a name or a licence plate?
(for example: 08-PVP-5)
Re: Yes, of course, it is editable, you could rename and make your own specific vehicle ID or name or license plate etc. if you use our server, you will need us to revise the vehicle ID for you if you set up your own server, there is software for all the configuration, so you could set the vehicle ID by the software config.
Detailed Fuction
