Mini HD 4 channel full 720P WIFI CCTV Camera Kit for Vehicles

Mini HD 4 channel full 720P WIFI CCTV Camera Kit for Vehicles

    • Mini HD 4 channel full 720P WIFI CCTV Camera Kit for Vehicles
    • Mini HD 4 channel full 720P WIFI CCTV Camera Kit for Vehicles
    • Mini HD 4 channel full 720P WIFI CCTV Camera Kit for Vehicles
    • Mini HD 4 channel full 720P WIFI CCTV Camera Kit for Vehicles
  • Mini HD 4 channel full 720P WIFI CCTV Camera Kit for Vehicles

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW618HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month; Mini HD 4 channel full 720P WIFI CCTV Camera Kit for Vehicles
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Storage Capacity: 2 Sd Card Slots, Max Support 256GB
    Software Support: Client,server,playback Software Cameras: 720P/960P/Sony CCD 600/700/800TVL
    Original Factory: YES Resolution: 720P
    OEM / ODM: Support Level: World Class Anti-vibration Tech
    Application: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Language: Chinese/English/Russian/Spanish And Customization

                         Mini HD 4 channel full 720P WIFI CCTV Camera Kit for Vehicles

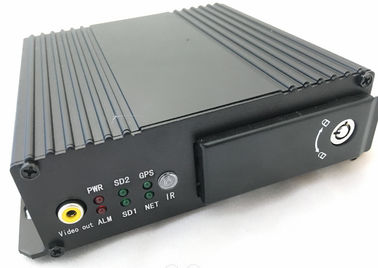

    SD Card Mobile DVR Overview



    The AHD SD Card MDVR is a practical 3G+GPS system for Veihcle mobile serveillance purpose which combines latest high technology such as Audio&Video Coding&Decoding, Mass HD&SD storage, Streaming media network, Audio&Video denoising, Mechanical Shockproof(Anti-vibration), UPS power protection, Flexible wide voltage range and etc.

    Application:
                   A. Road Transportation
                   B. Railway Transportation
                   C. Water Transportation
                   D. Air Transportation
                   E. Other ways with live surveillance purpose

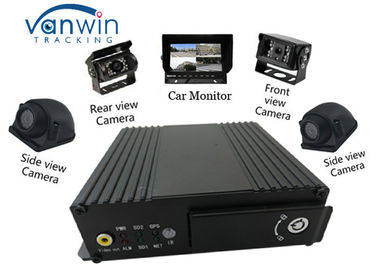

    The DVR system includes:

    1. 4CH SD Card MDVR with 128GB SD card

    2. 2~4 truck cameras with extension cables

    3. 7inch car monitor for Option



    The DVR can support 4 channel inputs with AHD 960P/720P cameras to record what happens at the front, side and back of Truck, also includes a forward facing camera for insurance requirements, combined with a robust system for longevity of life. It Has You Covered What makes this system superior to dash cams is that it records for a cycle of at least one week

    (128GB SD card) allowing the time for footage to be recovered in the event of an accident. A simple forward facing camera with limited recording and storage is simply not enough in the crash for cash age that we live. Having supplied the footage to accident management companies, it has provided vital information. With back-up camera &side camera, it can well help driver better driving and see outside environment very clear from the screen(Car Monitor). It’s very important for vehicle and safe driving.

    Mini HD 4 channel full 720P WIFI CCTV Camera Kit for Vehicles


    SD Card Mobile DVR Main Features



     1. Standard H.264 compression format ensures high rate, less storage space and clear.

     2. SD card support, faster recording speed and easy installation.

     3. Advanced PCB layout&design and reliable SMT processing

     4. 8 - 36 VWide voltage

     5. 5V/0.5A for Input, 12V/2A for output, compatible and easy installation

     6. 6 Alarm in, 2 Alarm out. 4 Video in, 1 Video out. 4 Audio in, 1 Audio out. RS485/232 Support. 720P*4

     7. Professional management platform and PLAY software

     8. Support Brake alarm, Reverse alarm, Motion detect, Door opening alarm,CMS platform,

        Customized Player.

     9. Support Geo fence, Location, Speed alarm, G-sensor etc.

    10. Support oil sensor, Fuel cut, Power cut, SOS alarm, Alarm button, Online tracking, Live talkback,

    11. Live surveillance, Live simultaneous storage, Dispatching system, Camera rotation,                                     PTZ cloud control, SMS function, CMS platform, iOS&Android client(for Apple and Android phone),             Remote control and etc.

    12.World class anti-vibration technology with over 8 years lifetime ,super strong develop ability to customize many projects .Video people counter is our special and unique tech in the market.Welcome you to come to us .



    FAQ

    1. Q: Does the MDVR support Hard drive and SD card?

    A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

    The storage capacity can be from 32GB to 2TB.

    2. Q: Is it difficult to install MDVR into the vehicle?

    A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

    And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.

    3. Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

    is it available?

    A: Definitely yes!

    The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

    In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

    PTZ camera, and so on.

    4. Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

    A: Yes, we have SDK ready and welcome your OEM customized order!



    How to install it?

    Mini HD 4 channel full 720P WIFI CCTV Camera Kit for Vehicles



        The device is designed for all commercial vehicles, especially those that carry passengers. To discover how this system can be constructed to suit your requirements, contact us for a no obligation consultation.
