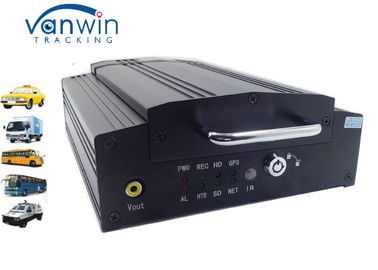

G-sensor portable vehicle digital video recorder 4ch HDD DVR with CE / FCC

G-sensor portable vehicle digital video recorder 4ch HDD DVR with CE / FCC
G-sensor portable vehicle digital video recorder 4ch HDD DVR with CE / FCC G-sensor portable vehicle digital video recorder 4ch HDD DVR with CE / FCC G-sensor portable vehicle digital video recorder 4ch HDD DVR with CE / FCC

Large Image :  G-sensor portable vehicle digital video recorder 4ch HDD DVR with CE / FCC

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW619HD
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month;

G-sensor portable vehicle digital video recorder 4ch HDD DVR with CE / FCC

Description
Storage Capacity: 2.5" SATA Hard Disk, Max Support 2TB Basic Function: 4 Cameras Monitoring With 3G Real Time,GPS Tracking
Resolution: 4CH Full 720P/D1/CIF Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
Technology: The World Class Anti-vibration Tech Warranty: 16 Months
Cameras: Any AHD Cameras Or Analog Cameras Network Port: RJ45
OEM/ODM: Welcomed USB Port: YES
High Light:

mobile digital video recorder

,

video surveillance dvr

G-sensor portable vehicle digital video recorder 4ch HDD DVR with CE / FCC

How does it work?



The system that records both the inside and outside of your vehicle to prove what really happened in any situation.



The 4 camera device uses 2 regular cameras as well as 2 night/day cameras, up to 28 days of footage can be saved to its hard drive to ensure a moment is never missed.



The DVR device is a power managed and wide voltage +8V~+36VDC.



The model is designed for all commercial vehicles, especially those that carry passengers.



Vehicle digital video recorder 4ch Main Features



1. High end  Solution,H.264 Compression, Dual Stream,4CH AHD Video and 4CH Audio input;

2. High quality real time recording, 720P/D1/HD1/CIF Optional, quality adjustable;

3. Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection
4. Max 2TB HDD ,protect DVR from shock & Dust damage;

5. Exclusive File System protect data completeness;

6. ACC Delay off,can set 3- 255mins to work;

7. Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.
8. Support GPS/GLONASS,3G/4G Module Optional,WIFI extend;
9. Strong Network,device configure via IE Web,Support SMS Get device information and configure;
10. Support Monitoring,Intercom, PTZ, Alarm,Overspeed,Geo Fence etc through remote control platform;
11. 6CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;

12. High level aviation interface,easily installation and better shockproof, more stable;.
13. Easily Smart GUI Interface, saving time in device setting;

Vehicle digital video recorder 4ch Main Specifications

Item Description
OS Linux
Graphics Operation Interface System parameters can be set through external display and remote controller
Security Management 2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview Video Input, Output 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
Video Compression Format Compression coding. Applying Hisilicon hi-performance processor.
Dual-Stream Supported
Preview Function Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
Resolution AHD 720P,D1, CIF 4channel
Quality Grade 1 to grade 5 for selection (descending)
Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio Audio Input, Output 4-channel input, 1-channel output
Compression Format G.726 coding
Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
File Format/ System Special file system
Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
Video Search Searching by time, type, storage device and other conditions
Video Playback Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 1-channel on/off signal alarm output
Alarm Recording Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
Storage Space Alarm Supporting settings for alarm of storage space
Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
Communication Ports 485,RS232, RJ45 10M/100M self-adaptable network interface
Wireless Transmission (Optional) Supporting Wi-Fi;
GPS (Optional) Supporting external GPS
PTZ Control Supporting PTZ control realized by local;
Parameter Configuration Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor Embedded
System Upgrading Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption Power Supply

1. ACC on/off

2. Hard drive lock on/off

3. Delayed shutdown

4. Timed on/off

Input Voltage DC:+8V ~ +36V
Output Voltage +12V@5*0.5A;
Power-off Protection With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
Power Consumption <10W in normal operation; <0.5W in standby mode
Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
Humidity 10% to 95%
Dimensions 160(W) x62(H) x200(D) mm.
Weight Net: 2200g, Gross: 3500g




























































































































































The Working Diagram



G-sensor portable vehicle digital video recorder 4ch HDD DVR with CE / FCC 0

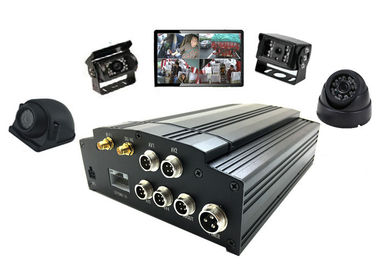

The complete set



One MDVR with 3G GPS WIFI for option

4 AHD cameras/ 4 Analog cameras with extension cables

One Hard disk

One Monitor, Sound Pick-up, Talkback device for option



G-sensor portable vehicle digital video recorder 4ch HDD DVR with CE / FCC 1

Our Advantage



G-sensor portable vehicle digital video recorder 4ch HDD DVR with CE / FCC 2
