3G GPS Tracker 4CH hard disk mobile 1080p dvr recorder security for Vehicle

3G GPS Tracker 4CH hard disk mobile 1080p dvr recorder security for Vehicle
3G GPS Tracker 4CH hard disk mobile 1080p dvr recorder security for Vehicle 3G GPS Tracker 4CH hard disk mobile 1080p dvr recorder security for Vehicle 3G GPS Tracker 4CH hard disk mobile 1080p dvr recorder security for Vehicle

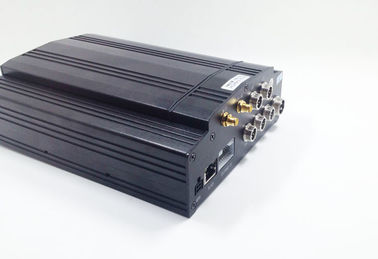

Large Image :  3G GPS Tracker 4CH hard disk mobile 1080p dvr recorder security for Vehicle

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW619HD
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month;

3G GPS Tracker 4CH hard disk mobile 1080p dvr recorder security for Vehicle

Description
Storage Capacity: 2.5" SATA Hard Disk, Max Support 2TB Basic Function: 4 Cameras Monitoring With 3G Real Time,GPS Tracking
Resolution: 4CH Full 720P Technology: The World Class Anti-vibration Tech
Cameras: Any AHD Cameras Or Analog Cameras Network Port: RJ45
Interface: RS232/485 Customization: Welcome
Agents: Welcome
High Light:

mobile digital video recorder

,

video surveillance dvr

3G GPS Tracker 4CH hard disk mobile 1080p dvr recorder security for Vehicle

Main Features



  • High end Solution,H.264 Compression, Dual Stream,4CH AHD Video and 4CH Audio input;
  • High quality real time recording, 720P/D1/HD1/CIF Optional, quality adjustable;
  • Professional Car Power Design,8-36V wide voltage, preverse voltage/overload/short circuit protection
  • Max 2TB HDD ,protect DVR from shock & Dust damage;
  • Exclusive File System protect data completeness;
  • ACC Delay off,can set 3- 255mins to work;
  • Unique UPS Technology ensures the integrality of record when power failure occurs,
  • even can for 8-10s.
  • Support GPS/GLONASS,3G/4G Module Optional,WIFI extend;
  • Strong Network,device configure via IE Web,Support SMS Get device information and configure;
  • Support Monitoring,Intercom, PTZ, Alarm,Overspeed,Geo Fence etc through remote control platform;
  • 6CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc), can linkage kinds of alarm;
  • High level aviation interface,easily installation and better shockproof, more stable;.
  • Easily Smart GUI Interface, saving time in device setting;





Main Specifications

Item Description
OS Linux
Graphics Operation Interface System parameters can be set through external display and remote controller
Security Management 2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview Video Input, Output 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
Video Compression Format Compression coding. Applying Hisilicon hi-performance processor.
Dual-Stream Supported
Preview Function Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
Resolution AHD 720P,D1, CIF 4channel
Quality Grade 1 to grade 5 for selection (descending)
Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio Audio Input, Output 4-channel input, 1-channel output
Compression Format G.726 coding
Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
File Format/ System Special file system
Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
Video Search Searching by time, type, storage device and other conditions
Video Playback Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 1-channel on/off signal alarm output
Alarm Recording Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
Storage Space Alarm Supporting settings for alarm of storage space
Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
Communication Ports 485,RS232, RJ45 10M/100M self-adaptable network interface
Wireless Transmission (Optional) Supporting Wi-Fi;
GPS (Optional) Supporting external GPS
PTZ Control Supporting PTZ control realized by local;
Parameter Configuration Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor Embedded
System Upgrading Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption Power Supply

1. ACC on/off

2. Hard drive lock on/off

3. Delayed shutdown

4. Timed on/off

Input Voltage DC:+8V ~ +36V
Output Voltage +12V@5*0.5A;
Power-off Protection With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
Power Consumption <10W in normal operation; <0.5W in standby mode
Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
Humidity 10% to 95%
Dimensions 160(W) x62(H) x200(D) mm.
Weight Net: 2200g, Gross: 3500g




The Working Diagram





3G GPS Tracker 4CH hard disk mobile 1080p dvr recorder security for Vehicle 0

3G GPS Tracker 4CH hard disk mobile 1080p dvr recorder security for Vehicle 1

3G GPS Tracker 4CH hard disk mobile 1080p dvr recorder security for Vehicle 2
