Focus on Vehicle Security Solution.
Quality is Our Culture! Trust us for Professional!
|Place of Origin:||Shenzhen,China|
|Brand Name:||Vanwin Tracking|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .|
|Delivery Time:||2-3 days for samples,15-30 days for large orders|
|Payment Terms:||T/T or western Union or Paypal|
|Supply Ability:||5,000pcs per month; Hard disk 4 channel HD Mobile DVR car recorder with GPS 4G WIFI support 2TB|
|Power Supply:||8V-36V Wide Voltage||4CH/8CH:||Optional|
|Free Software Supported:||Client, Server, Playback Software||Applicable:||All Vehicles, Like Car, Taxi, Bus And Ect.|
|Resolution:||Real 720P/D1/CIF, Max 4ch 720P Recording||Hard Disk:||2.5 Inch Sata 500GB/1TB/2TB|
|Client Software:||PC And Mobile Phone Supported||Cameras:||720P/960P/1080P AHD Cameras Or Analog Cameras|

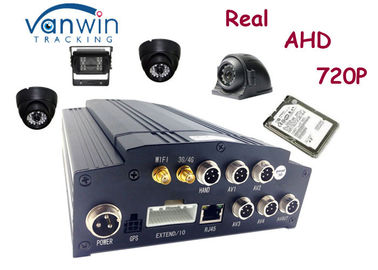

|Product Name:||4 Channel HD Mobile DVR||RS232/RS485:||Support|
Safe & Secure
The device has been developed to keep peace of mind for the vehicle owner,
the driver and above all else the passenger.
The system records exactly what happens in both the inside and outside of your vehicle, protecting you from any false accusations or road collisions. Our system makes drivers happier and feel more secure. Drivers no longer have to deal with difficult insurance claims, false accusations of road rage, inappropriate behavior, fear of passengers jumping fare or putting the drivers safety at risk.
The system protects passengers as it provides a safe and trustworthy environment for travel. Passengers can now step into a vehicle knowing that they, and the driver, are recorded at all times, ensuring they always feel safe and secure.
|4 Channel*720P or 1080P|
|H.264 compression format|
|2.5“ SATA 1TB Hard disk|
|6 alarm input, 2 alarm output|
|Built-in WIFI for option|
|3G remote control|
|2 way intercom|
|Remote oil&power cut-off|
|Mirror recording in SD card|
|Patent UPS continuously working to protect data upon sudden power-off|
|Customized GPS data format sending(optional)|

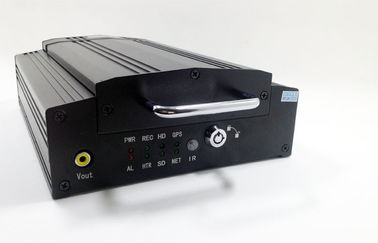

|Lockable, metal HDD handle, protect HDD efficiently|
|Watermark and Time/Date stamp in exported images|
The complete system includes: The main unit(MDVR) with 3G/4G GPS WIFI for Option+4 cameras with extension cables+ HDD/SD for storage+Monitor for the driver+Micphone to pick up the voice (We will send you one micphone with adaptor for free for sample).
The functions of RJ45:
1. It can connect the router with MDVR to Internet as 3G module.
2. When it has issue, our technician can check it via remote login.
3. You can connect the computer via RJ45 cable to set the parameters.
The function of G-sensor: G-sensor function record the crash level in car accident, thus for people to analyse the reason of car accident. I/O cables is to connect other alarm signal to trigger the alarm and send the platform, like reversing with full imgaes, Door Open, Light, Turn direction, brake and etc.
Our client software for PC
The client software for Mobile Phone
With the HD Mobile DVR system, you can monitor your vehicle(Car, Taxi, Truck, Bus) with 360 degree live video and gps tracking at anywhere.
For taxi or small cars, you can use the mini cameras for replace.
It comes with video protection technology, only the manager can log in with password, pull out of the hard disk/SD card with keys and play back with the special player.
Matched AHD cameras or Analog Cameras
Contact Person: Wendy Chen
