960P / 1080P AHD Bus Surveillance Camera , DVR Recorder video surveillance cameras 100W / 130W / 200W
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-203 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month , IR Color CCD Night Vision Truck and Bus Side View Camera , Waterproof video camera |
|
Detail Information |
|||
| Type: | Bus/Truck Surveillance Cameras | Resolution: | 720P/960P/1080P AHD Cameras |
|---|---|---|---|
| TV System: | PAL Or NTSC | Video Output: | 1.0V±0.5Vp-p 75Ω |
| IR Lights: | 24 Pcs | Pixel: | 1.0 Megapixel/1.3 Megapixel/2.0 Megapixel |
| Lens Angle: | 140 Degree Wide Angle | IR Cut: | Yes |
| High Light: | car bumper camera,reverse parking camera |
||
Product Description
720P/960P/1080P AHD Car DVR Recorder Video Camera 100W/130W/200W used for Truck Bus

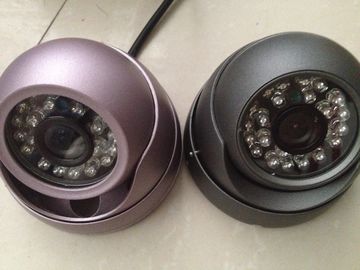

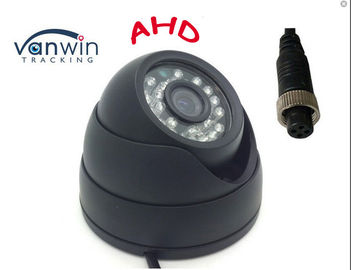

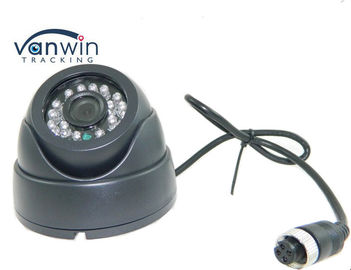

This is a closed circuit television CCTV camera car surveillance HD dome camera. It works with 24pcs F5 infrared LEDs to create 20 meters infrared distance for night vision to monitor in dark environment. It adopts 3.6mm or 6mm fixed focus lens to let you view objects within 20 meters. It can be worked with DVR recorder, quad processor, DVR card. It can be viewed through monitor, TV, PC, smart phone and etc.
Main Features
Plastic/Metal shell, 3 inch, inside car.
Built-in voice pickup.
Image sensor: 1/3’’ or 1/4’’ CMOS
Lens: 3.6mm/ 2.8mm/ 6mm/ Customized optional
Resolutions: 720P(1280*720)/960P(1280*960)/1080P
Pixel: 1.0 megapixel/1.3 megapixel/2.0 megapixel
Signal System: PAL or NTSC
Shutter Speed: 1/50 (1/60) – 1/100,000 Sec.
S/N Ration: ≥48dB
Visual Angle: 90 degree
IR distance: 12 m
Video compound signal: 1.0Vp – p75Ω
Power consumption: DC12V±10% ; 170MA±10%
Working temperature: -20℃~50℃ RH95% MAX
There are three kinds of connectors for option
1. 4-pin connector
2. RAC connector
3. BNC connector
FOQ
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
