4CH Live Video gprs gps passenger counting system bus with gps wifi alarm

4CH Live Video gprs gps passenger counting system bus with gps wifi alarm
4CH Live Video gprs gps passenger counting system bus with gps wifi alarm 4CH Live Video gprs gps passenger counting system bus with gps wifi alarm 4CH Live Video gprs gps passenger counting system bus with gps wifi alarm 4CH Live Video gprs gps passenger counting system bus with gps wifi alarm

Large Image :  4CH Live Video gprs gps passenger counting system bus with gps wifi alarm

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW608C-GPRS
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month

4CH Live Video gprs gps passenger counting system bus with gps wifi alarm

Description
Power Supply: 8V-36V Function: Passenger Counting, Calculation, GPRS Data Sending
Support: Softwares And Technology Support Applicable: School Bus Or Bus Or Any Vehicle
Counter Types: 4 Types For Optional Level: World Class Anti-vibration Technology
Operation Interface: OSD With Mouse And Remote Control Scanning Style: Video Counting
Network: GPRS Camera: Binocular Camera
High Light:

cctv mobile dvr

,

mobile dvr for buses

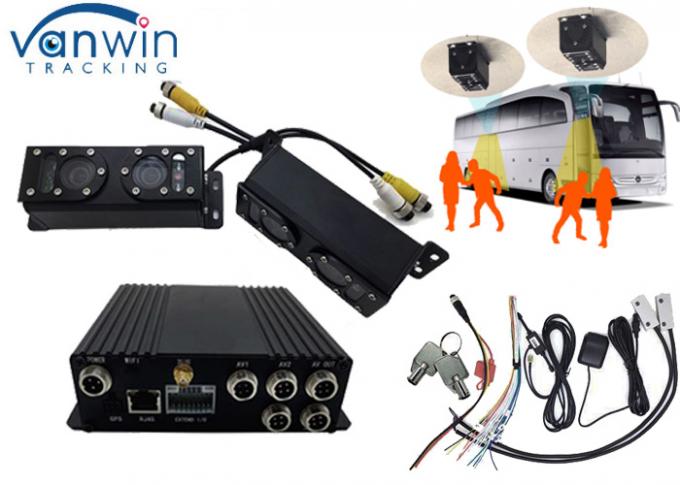

4CH Live Video couting technology based 3g gprs gps bus Passenger counter system mdvr with gps wifi alarm



The 3rd generation of Video counter system has its features below:

  1. with double lens for each counting camera .,add much higher accuracy.
  2. Suitable for 8V-36V power supply.Especially for bus /school bus application.
  3. Just count people not count animals or object.
  4. Developed by ourselves ,with patent protection.
  5. 98% up accurate,High accuracy despite crowded group
  6. Not affected by clothes color and passenger height etc
  7. Accurate counting for On and Off through Front and Back door
  8. Automatically generate statistic report
  9. Easy installation and uninstallation
  10. More accurate surveillance and more effective management on ticket, conductor and driver.

4CH Live Video gprs gps passenger counting system bus with gps wifi alarm 0

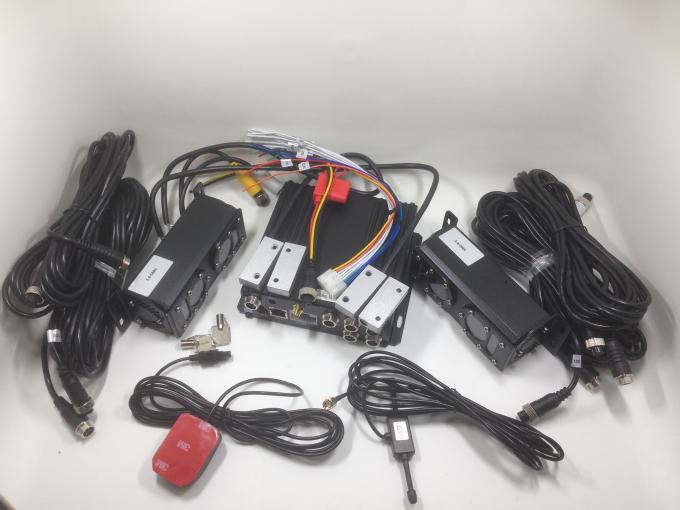

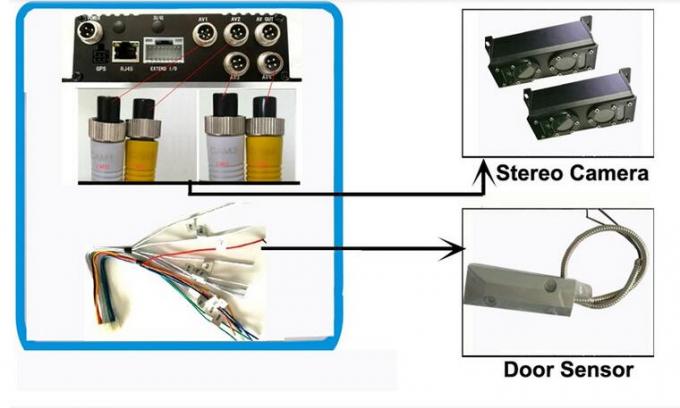

It includes the whole suit  and installation guide below



1. Main Unit

Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to SD card storage or GPRS&3g



2. Binocular Camera

Mounted on the ceiling of the doors, counts passengers get in or out of the bus.



3. Door Sensor

Door open/close sensor, is used for sensing the door open or close status.



4CH Live Video gprs gps passenger counting system bus with gps wifi alarm 1

Product Description&Specification



  • System: Linux
  • CPU: TMS320DM6446
  • Operation Interface: OSD with mouse and remote control
  • Video Counting input: Max 2 channels
  • Video Counting output: 1 channel
  • Accuracy: 95% up
  • Operating voltage: DC 8—36V
  • Operating power: ≤4W
  • Operating temperature: -20°C -- +80°C
  • Operating humidity: 10% -- 95%
  • USB port: Standard 2.0
  • Counting input port: Aviation



Counting camera Parameters

  • Image Sensor:1/3 SONY CCD
  • TV System: PAL/NTSC
  • TV Lines:700TVL
  • Image Output: Synchronous sampling output
  • Lens’ Spacing:5MM
  • Len:960*576 Pixel,3.6 mm (2.8mm/3.6mm/4mm/6mm Optional)
  • Viewing Angle:55 degree

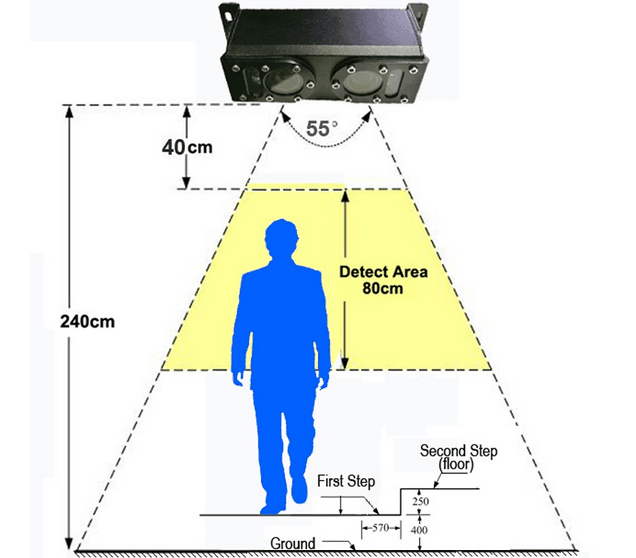

  • Installation height Range:2.1M~2.3M(3.6MM len), 1.9M~2.1M(2.8MM len),
  • 2.3M~2.5M(4MM len)
  • Detecting Door Width Range:0.4M~1.2M
  • White Balance:Auto
  • Shutter:1/50-1/80000(s) 1/60-1/80000(s)
  • Frame rate:25 FTPS
  • Video Output Interface:Composite video output, 75Ω 1Vp-p Aviation
  • Gain:Auto
  • SNR:>48db
  • Power Supply:DC12 V
  • Power:≤1W
  • Working Temperature:-30~+55℃
  • Relative Humidity:10%~90% Not condensed
  • Cooling: no active cooling, passive structure with heat dissipation
  • Product Size:155(L)*50(W)*55(H)MM
  • Weight:0.32KG



Door sensor

  • Contact Way:Connected when touch, disconnected when separate
  • Max Power:10W
  • Min Switch Voltage:100VDC
  • Avalenche Voltage:200VDC
  • Max Switch Current:0.5A
  • Max Load Current:1A
  • Max Contact Resistance:100mΩ
  • Min Insulation Resistance:10~10Ω
  • Moving Time:0.4ms
  • Bounce Time:0.3ms
  • Release Time:0.05ms
  • Max Working Frequency:5000±400HZ
  • Sensitivity:07-10AT
  • Minimum Reset Index:5AT
  • Max Contact Capacity:0.3pF
  • Housing Material: Zinc Alloy
  • Product Color: Gray
  • Working Temperature:-30℃~80℃
  • Working Relative Humidity:≤95%(40℃)
  • Sense Magnetic /Release Distance:35-45MM

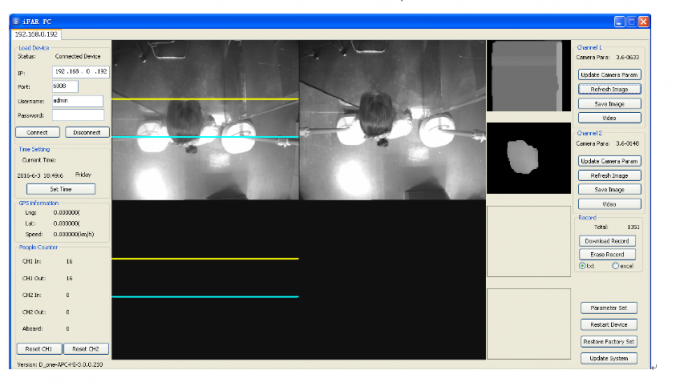

Platform show

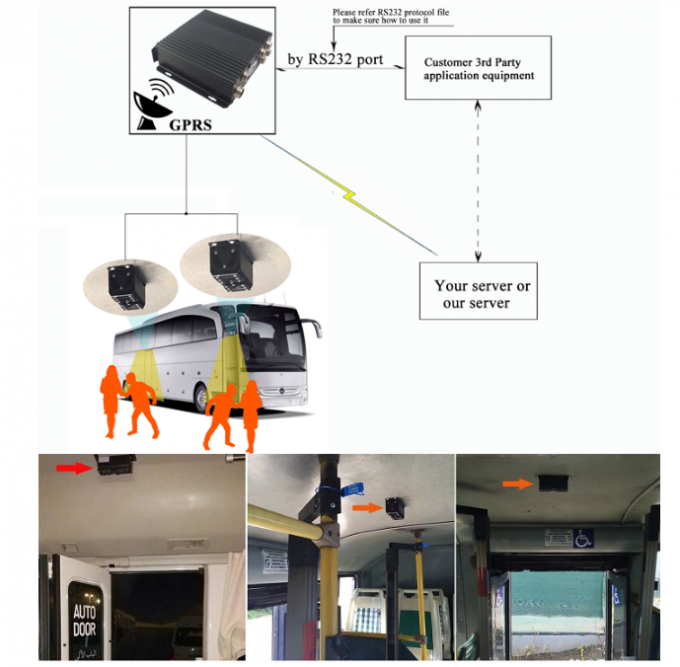

Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.

4CH Live Video gprs gps passenger counting system bus with gps wifi alarm 2

4CH Live Video gprs gps passenger counting system bus with gps wifi alarm 3

4CH Live Video gprs gps passenger counting system bus with gps wifi alarm 4



The GPRS System box:



4CH Live Video gprs gps passenger counting system bus with gps wifi alarm 5



Please contact us for specific manual in details
