Shenzhen Vanwin Tracking Co.,Ltd

4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps

    • 4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps
    • 4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps
    • 4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps
    • 4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps
    • 4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps
  • 4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW618HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month, 4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With GPS
    Contact Now
    Detailed Product Description
    Features: 3G And GPS Optional,basic Monitoring Power Supply: 8V-36V
    CVBS: Support Storage Capacity: 2*128G SD Cards
    I/O Cables: Yes, 6CH Alarm Inputs And 2CH Alarm Output AHD Cameras: 720P/960P
    Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets RJ45 Port: Support
    Dimensions: 141(L)×133(W)×43(H)mm

    4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps



    It is a small device to monitor the vehicles what happens inside and outside.



    1. The MDVR case comes with very strong aluminum alloy, very strong and sturdy.
    2. It can support both AHD/Analog Camera, 720P/D1 recording.
    3. The MDVR increases Video Protection Trchnology, UPS technology and World Class Anti-Vibration Technology to protect the DATA when accident. It's very important for the vehicle security monitoring.
    4. G-sensor function record the crash level in car accident, thus for people to analyse the reason of car accident.

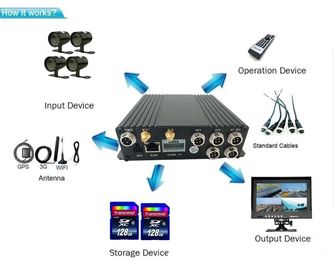

    The complete system:

    1. One MDVR with 3G GPS WIFI G-sensor for Option

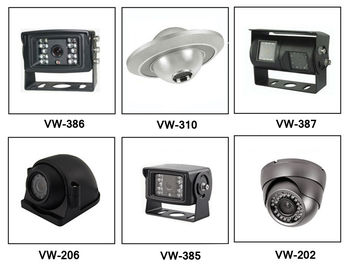

    2. 1~4 cameras with extension cables
    3. One monitor for the driver
    4. Dual SD cards optional, 2*128GB
    5. Micphone, Talkback device, Panic button



    Main Features

    • SD card for storage, max 2*128G
    • GPS tracking  and 3G remote control realtime monitoring optional
    • UPS technology to protect sudden power off
    • The Power and mainboard are integrated with much better quality
    • G-sensor ,RS232/485 interface,RJ45 lan port,6ch alarm input
    • Mini size and light on weight
    • World class anti-vibration technology for over 8 years lifetime
    • High end products for Military dep or government usage



    Specifications





    Item

    Description

    OS

    Linux

    Graphics Operation Interface

    System parameters can be set through external display and remote controller

    Security Management

    2-level management for user password, administrator password, supporting encrypted transmission

    Video and Preview

    Video Input, Output

    4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

    OSD

    Character superposition function, information superposition of time and date, device ID and GPS, etc.

    Video Compression Format

    Compression coding. Applying Hisilicon hi-performance processor.

    Dual-Stream

    Supported

    Preview Function

    Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images

    Frame Rate

    PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

    Resolution

    CIF, HD1 and D1 for selection, max 4*720P

    Quality

    Grade 1 to grade 5 for selection (descending)

    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    Audio

    Audio Input, Output

    4-channel input, 1-channel output

    Compression Format

    G.726 coding

    Recording

    Storage Medium

    Supporting dual SD card, which supports up to 32G

    File Format/ System

    ASF/FAT32

    Video Strategies

    Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

    Video Search

    Searching by time, type, storage device and other conditions

    Video Playback

    Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

    Alarm

    Alarm Input/ Output

    6-channel on/off signal alarm input, 1-channel on/off signal alarm output

    Alarm Recording

    Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

    Storage Space Alarm

    Supporting settings for alarm of storage space

    Function Alarm

    GPS overspeed alarm, acceleration alarm, motion detection alarm

    Communication Ports

    RS232, RJ45 10M/100M self-adaptable network interface

    Wireless Transmission (Optional)

    Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;

    Compatible with GPRS, EDGE;

    Embedded Wi-Fi module;

    GPS (Optional)

    Supporting external GPS

    Remote Data Transmission Channel Selection

    Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

    PTZ Control

    Supporting PTZ control realized by local ad client software;

    Parameter Configuration

    Supporting parameter configuration functions for mobile DVR coding channel;

    G-Sensor

    Embedded

    System Upgrading

    Supporting SD card and remote upgrading

    Power Supply and Power Consumption

    Power Supply

    1. ACC on/off

    2. Delayed shutdown

    3. Timed on/off

    Input Voltage

    DC:+8V ~ +36V

    Output Voltage

    +12V@4*0.5A; +5V@0.5A

    Power-off Protection

    With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

    Power Consumption

    <10W in normal operation; <0.5W in standby mode

    Operating Environment

    Temperature

    Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

    Humidity

    10% to 95%

    Dimensions

    141(L)×133(W)×43(H)mm





    RFQ



    1.Q: Does the MDVR support Hard drive and SD card?

    A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

    The storage capacity can be from 32GB to 2TB.



    2. Q: Is it difficult to install MDVR into the vehicle?

    A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

    And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.

    3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

    is it available?

    A: Definitely yes!

    The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

    In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

    PTZ camera, and so on.



    4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

    A: Yes, we have SDK ready and welcome your OEM customized order!



    How to install the HDD/SD card&SIM Card?



    4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps



    The player software to playback in PC



    4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps



    It can support 3G /4G GPS WIFI for option



    4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps

    CMS for PC&Mobile Phone



    In the CMS platform, you can see the live real-timely video, GPS information, customization,

    alarm logs, speed and ect.



    4ch Multifunctional SD DVR Recorder 720p 3g 4g Wifi Mobile Bus Dvr With Gps



    More details, pls freely contact us.
