4CH 720P Realtime Video Tracking 3G Mobile DVR With Bus People Counter System

4CH 720P Realtime Video Tracking 3G Mobile DVR With Bus People Counter System

    • 4CH 720P Realtime Video Tracking 3G Mobile DVR With Bus People Counter System
    • 4CH 720P Realtime Video Tracking 3G Mobile DVR With Bus People Counter System
    • 4CH 720P Realtime Video Tracking 3G Mobile DVR With Bus People Counter System
    • 4CH 720P Realtime Video Tracking 3G Mobile DVR With Bus People Counter System
  • 4CH 720P Realtime Video Tracking 3G Mobile DVR With Bus People Counter System

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW619C-3G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Sensor Type: Video Counting, 98% Accuracy
    Level: World Class Anti-vibration Technology Operation Interface: OSD With Mouse And Remote Control
    Scanning Style: Video Counting Data Transmission: 3g, GPS, Wifi ,gprs, Rs232/485, HDD Storage
    Camera: Binocular Cameras&Monitoring Cameras Network: 3G/4G
    USB Port: Standard 2.0 City Bus: Support 1/2/3/4 City Buses

    4CH 720P 3G/4G Realtime Video Tracking Mobile DVR with Bus People Counter System for City Bus



      The 3nd generation of Video counter system is based on advanced smart counting technology and attains high accuracy by detecting morphological characteristics of human(head and shoulder) and the human movement situation of getting On&Off the vehicle. 3nd generation is mainly characteristic of its high accuracy, despite crowded group, closthes, colors etc. Each counting camera can detect passenger On and Off, and can distinguish human and object. It becomes important system for public transportation enterprises and governments.



    Features:



    * 98% up accurate

    * High accuracy despite crowded group

    * Not affected by clothes color and passenger height etc

    * Long duration and low maintenance

    * Accurate counting for On and Off through Front and Back door

    * Automatically generate statistic report

    * Easy installation and uninstallation

    * More accurate surveillance and more effective management on ticket, conductor and driver.

    * Supporting 4ch/8ch video recording, SD card& HDD storage.

    * Supporting 3g, gps, wifi, alarm, G-sensor functions.



    Product Description&Specification:

    System: Linux

    CPU: TMS320DM6446

    Operation Interface: OSD with mouse and remote control

    Video Counting input: Max 2 channels

    Video Counting output: 1 channel

    Accuracy: 98% up

    operating voltage: DC 8—36V

    Operating power: ≤4W

    Operating temperature: -20°C -- +80°C

    Operating humidity: 10% -- 95%

    USB port: Standard 2.0

    Counting input port: Aviation



    Item Description
    OS Linux3.0
    Graphics Operation Interface System parameters can be set through external display and remote controller
    Security Management 2-level management for user password, administrator password, supporting encrypted transmission
    Video and Preview Video Input, Output 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
    OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
    Video Compression Format Compression coding. Applying Hisilicon hi-performance processor.
    Dual-Stream Supported
    Preview Function Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
    Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
    Resolution AHD 720P,D1, HD1 ,CIF 4channel
    Quality Grade 1 to grade 8 for selection (1 is the best)
    Bit Rate

    CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection

    HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection

    720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection

    Audio Audio Input, Output 4-channel input, 1-channel output
    Compression Format G.726 coding
    Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
    File Format/ System Special file system
    Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
    Video Search Searching by time, type, storage device and other conditions
    Video Playback Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
    Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 2-channel on/off signal alarm output
    Alarm Recording duration of recording after alarm can be adjusted from 10s ~ 999S
    Storage Space Alarm Supporting settings for alarm of storage space
    Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
    counter Passenger Video counter Two doors Synchronous statistics. the recognizing accuracy was more than 95%
    Communication Ports 485,RS232, RJ45 10M/100M self-adaptable network interface
    Wireless Transmission (Optional) Supporting Wi-Fi;
    GPS (Optional) Supporting external GPS
    PTZ Control Supporting PTZ control realized by local;
    Parameter Configuration Supporting parameter configuration functions for mobile DVR coding channel;
    G-Sensor Embedded
    System Upgrading Supporting SD card, hard drive upgrading and remote upgrading
    Power Supply and Power Consumption Power Supply

    1. ACC on/off

    2. Hard drive lock on/off

    3. Delayed shutdown

    4. Timed on/off

    Input Voltage DC:+9V ~ +36V
    Output Voltage +12V@5*0.5A;
    Power-off Protection With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
    Power Consumption <10W in normal operation; <0.5W in standby mode
    Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
    Humidity 10% to 95%
    Dimensions 160(W) x62(H) x200(D) mm.
    Weight Net: 2020g, Gross: 3500g

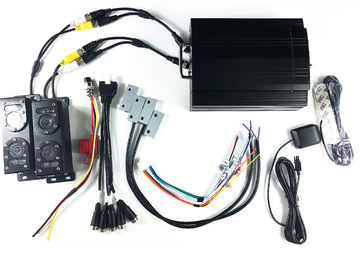

    1. Main Unit(below)

    Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g

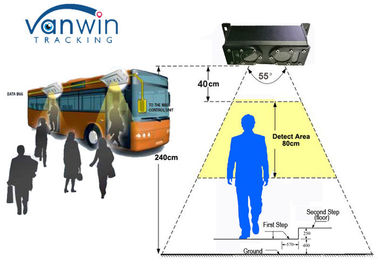

    2. Binocular Camera

    Mounted on the ceiling of the doors, counts passengers get in or out of the bus.



    3. Door Sensor

    Door open/close sensor, is used for sensing the door open or close status.





    4CH 720P Realtime Video Tracking 3G Mobile DVR With Bus People Counter System

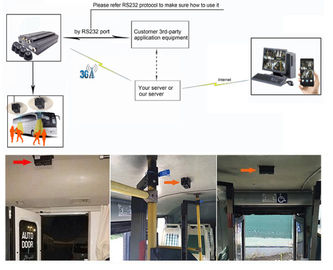

    Platform show

    Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.



    4CH 720P Realtime Video Tracking 3G Mobile DVR With Bus People Counter System

    4CH 720P Realtime Video Tracking 3G Mobile DVR With Bus People Counter System

    4CH 720P Realtime Video Tracking 3G Mobile DVR With Bus People Counter System









    Please contact us for specific manual in details
