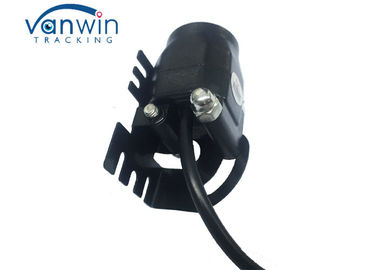

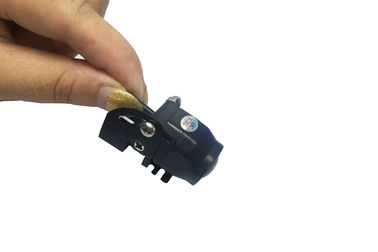

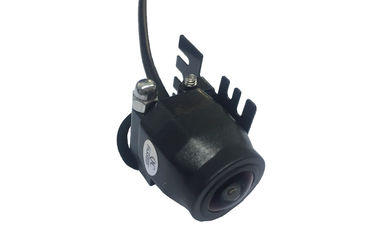

HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera

HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera

    • HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera
    • HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera
    • HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera
    • HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera
  • HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-111

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral giftbox, with foam plastic bag packed
    Delivery Time: 2-3 days for samples, 5-10 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000pcs per month;
    Contact Now
    Detailed Product Description
    Type: Rearview Camera Resolution: 1280*960 Pixels Or CMOS
    Waterproof: IP68 Warranty: 12 Months
    Lens Angel: 170 Degree Operating Temperature(Deg. C): -20~+75(RH95% Max.)
    Power: 9~16V Sensor: CMOS
    TV System: PAL/NTSC

    HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera



    Main Features



    • Waterproof CMOS Camera
    • Anti fog glass.
    • CMOS imaging sensor.
    • Support NTSC/PAL video system.
    • High grade of waterproofing: IP66.
    • High-definition and 150 degree wide viewing angle.
    • Applicable to variety of vehicles: car, truck, RV, etc.
    • Snap-in design, it is easy to install.
    • Its simple and modest design and small size won't draw any attention.
    • It helps to avoid incidents and accidents abrasion well.
    • RAC and Aviation connector for option

    Main Specification



    Image Sensor: CMOS 1/4 960P, 1.3MP

    TV system: NTSC/PAL

    Horizontal Resolution: 960P 1.3MP

    Minimum Illumination: 0.5 Lux

    Lens: 13.5mm

    View Angle: 170 degree

    Sync. System: internal

    S/N Ratio: >48dB

    Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds

    Video Output: 1.0Vpp, 75Ohm

    White Balance: Auto

    Power: DC 12V

    Current Consumption <120mA

    Operating Temperature: -30 to + 70°C

    Storage Temperature: -50 to + 110°C

    Water-proof: IP66



    Guarantee



    1.Guarantee: 12months

    2.Certificates available: CE, RoHs



    After-sale services



    1.one year warranty policy from shipment

    2.the broken parts would be replaced with new parts in the next order

    3.track the order until you get the goods



    HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera

    HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera

    HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera



    Parking effect



    HD Color CMOS Waterproof Vehicle Car Rear View Backup Camera, 170 Degree Viewing Angle Rearview Camera
