| Place of Origin: | China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW9804 |
| Minimum Order Quantity: | 1PC |
| Price: | USD100-USD300 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
| Video Compression: | H. 264 | Storage: | HDD+SD |
|---|---|---|---|
| Resolution: | Support 1080P/720P/D1/CIF | Product Name: | 3G 4G GPS 1080P AHD HDD SD Vehicle CCTV Monitoring System |
| Warranty: | 18 Months | Type: | HDD Mobile DVR |
| Video Input: | 4 Channels AHD 1080P Video | Power Input: | DC 8V~36V |
| Gps: | YES | Playback: | Single/4 Pictures/ Customized |
| Language: | English/Chinese/Russian | Alarm Input: | 3 Alarm Inputs |
| Channel: | 4CH | 4g: | 4G Optional |
| Applicable Vehicles Type: | Vehicle Fleets | ||
| High Light: | HDD SD CCTV Monitoring System,1080P CCTV Monitoring System,GPS CCTV Monitoring System |
||
3G 4G GPS 1080P AHD HDD SD Vehicle CCTV monitoring System
Product introduction
1. General
Language - English/Chinese/Russia
OSD - Graphic User Interface (OSD menu)
Password - User password/Administrator password
2. Video
Input - 4CH composite video input
Output – 1CH VGA video output, 1CH CVBS video output
Display - 1CH/2CH/4CH/9CH display
Standard - PAL/NTSC
Image Compression - H.264 Main profile, 120fps
3. Audio
Input - 4CH audio input
Output – 1CH Audio Output (CVBS)
Recording Mode - Synchronous recording in audio & video
4. Image Processing & Storage
Video format - 1080P/720P/960H/D1/CIF optional
Video Stream - ISO14496- 10
Video Bit Rate (kbps) D1:2048 ~ 400kbps HD1: 2048 ~ 400kbps CIF: 1536 ~ 128kbps
8 levels settings optional, highest: level 1; lowest: level 8 Audio Bit Rate - 8KB/s
Storage - Support 2.5” HDD, Max.2TB; Support 1*SD card, Max 256GB
5. Alarm
Input - 6CH alarm input
Output - 2CH alarm output, high level 12V output]
6. Communication Port
RS485 Interface - Support 1 RS485 interface
RS232 Interface - Support 1 RS232 interface
RJ45 Interface – N/A
USB Interface - Support 1*USB interface for software upgrading and record file copy
7. Extended Interface
Control Panel - Connect to bus station reporter or control panel
Audio Power amplifier - Support 2CH audio power amplifier output
8. Wireless
3G - 3G (HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) module optional
4G - 4G (FDD-LTE/TDD-LTE) module optional
WIFI - WIFI module (2.4/5.8GHz) optional
GPS - Support built-in GPS module, Geographical co- ordinates, driving speed can be written in coding flow, and uploaded via wireless
G-Sensor - Build-in G-Sensor
9. Software
PC Playback - Play back video on computer and analyze vehicle information from recording file
CMS - Video preview, GPS uploading, alarm uploading, central command parameter configuration etc. via wireless
Software Upgrading - Support USB upgrading, HDD upgrading, SD card upgrading and CMS remote upgrading

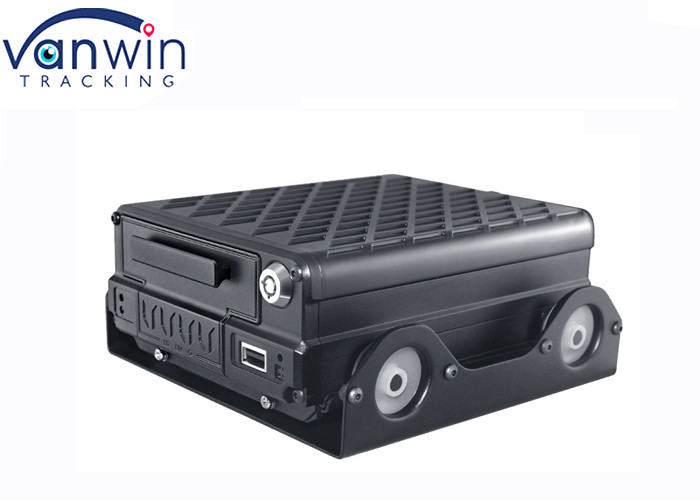

PRODUCT PHOTO
Platform Sceenshot
