4Channel HDD DVR 5G GPS Tracking 1080P HD Moblie DVR Video System Support OEM / ODM For Car Truck Bus MDVR Car Black Box

4CH HDD DVR 4G GPS ADAS DMS 1080P HD Support OEM / ODM MDVR Video System For Car Truck Bus MDVR Car Black Box

4CH 5G Mobile DVR with GPS Tracking Main Features

Next-Gen Fleet Monitoring

4CH 1080P HD Recording + H.265+ Storage Optimization

5G Ultra-Fast Live Streaming & Real-Time GPS Tracking

AI-Powered (ADAS/DMS) for Collision & Fatigue Alerts

-30°C~70°C Operation & IP67 Waterproof

Proven Performance

✔️ 40% Safer - Top Choice for EU/LATAM Fleets

✔️ OEM/ODM Ready - Customized for Your Brand

Upgrade Your Fleet Now!

4CH 5G Mobile DVR with GPS Product Specifications:

• Specification
  Item		specification
  OS		Linux
  Language		Chinese/English/Russian/Others (can be customized)
  Video Compression		H.265 H.264
  OSD		Character overlay function,Overlays information such as date time and vehicle ID
  GUI	Graphical User Interface	System parameters can be set through an external display screen and remote control operation
  Video Record System	Video Input	4CH:1080P,720P,D1
  		8CH:1080P,720P,D1
  	Video Output	1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels
  	Preview	support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function
  	Resolution	Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel.
  	Video Quality	0-8 levels video recording available, 0 is the best level, 8 is the lowest level.
  	Video Standard	PAL: 100 frames per second, CCIR625 line, 50 fields
  		NTSC: 120 frames per second, CCIR525 line, 60 fields;
  		CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional;
  		HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional;
  		D1: 800Kbps ~ 3Mbps, multi levels video quality optional;
  		720P : 1Mbps~2Mbps, multi levels video quality optional;
  		1080P: 1Mbps~4Mbps, multi levels video quality optional;
  	Record Mode	Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc
  Audio	Audio Input	4 or 8 channel aviation Plug
  	Audio Output	1channel
  	Compression	G.711A compression, 8KB/s speed
  Alarm Input		4CH IO Alarm Input, pulse speed input,support alarm linkage function
  Alarm Output		2-channel switch output, linked with sound and light alarm, oil and power outage, etc
  Communication Interface		1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc
  		1CH 485 interface, can connect PTZ,etc.
  Wireless transfer		Built-in 4G network wireless transmission, TD-LTE, FDD-LTE
  Position		Support built-in GPS/BD module, can report to the CMSV7 standard platform
  Storage	Storage	SD card supports up to 512GB, hard drive supports 2TB; SD card can be used as a mirror recording to ensure data security.IPC MDVR max to 4TB.
  	Update Mode	Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade
  	Storage Mode	Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry
  	USB	Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video
  Video Playback	Video Search	Search video by Record Time/Record Mode etc
  	Playback	Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind
  		Support x 2,x4,x8,x16. fast forward or fast backward play
  Voltage &Power Consumption	Power Management	Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection;
  		Support timed power on/off and delayed shutdown functions.
  	Voltage Input	DC:+12V ~ +36V
  	Voltage Output	+12V@2.5A,+5V@2A
  	Power Consumption	Normal Working ＜5W
  Working Environment	Temperature	-20℃ to +70℃
  	Humidity	20% to 80%
  Safety Management	Password Access	Two level management of user password and administrator password
  others	Size	20.5*21 *6.2cm or IPC MDVR 22.5CM (D)* 18.7CM(W)* 6.2CM(H)
  	Net Weight	2.5 Kg

•

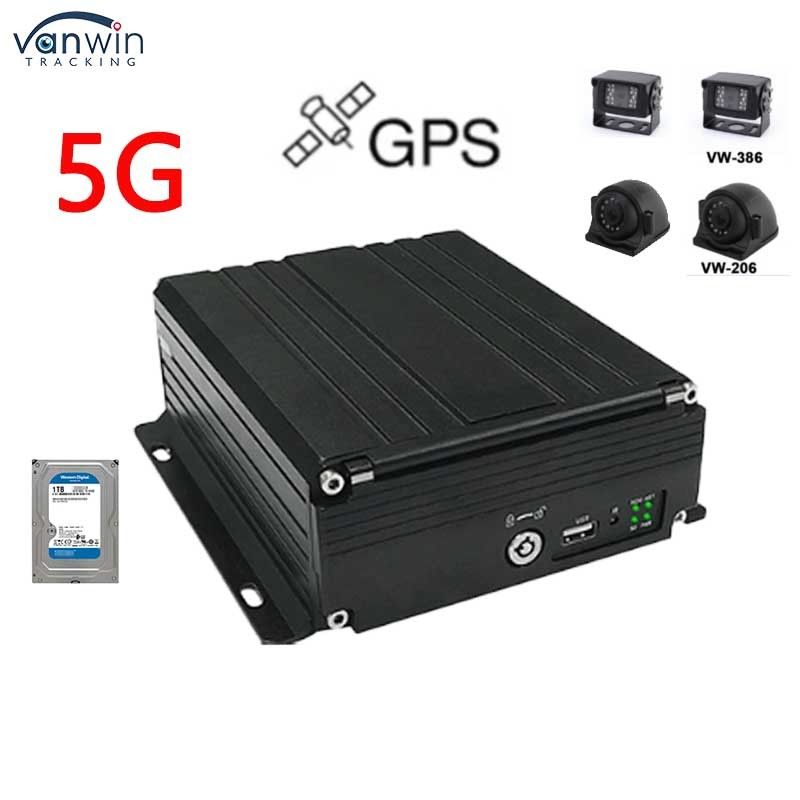

4CH HDD MDVR 5G GPS Tracker Product Pictures

4CH HDD MDVR 5G GPS Tracker Application:

Our Mission
Make drivers safe, make vehicles safe, make passengers safe, make thousands of families safe.Make the roads safer place by providing our drivers with the highest quality &most personalized safety solutions!
