| Place of Origin: | Shenzhen,Guandong |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-7599M |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiated |
| Packaging Details: | Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 pcs per month; 7 inch TFT car dashboard monitor with Pillow, 2 cameras inputs for Truck Reversing |
| Power Supply: | 12V-24V DC Optional | Screen Size: | Car Dashboard Monitor |
|---|---|---|---|
| Resolution: | 800xRGBx480 | Speaker: | YES |
| Inputs: | 2 Way Video Inputs | Car Make: | Bus, Car, Truck, Van |
| Aspect Ratio: | 16:9 Image | Dimension: | 172*115*22mm |
| High Light: | car video monitors,car reverse lcd monitor |
||

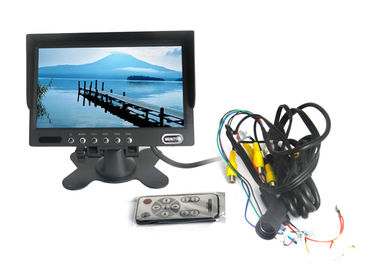

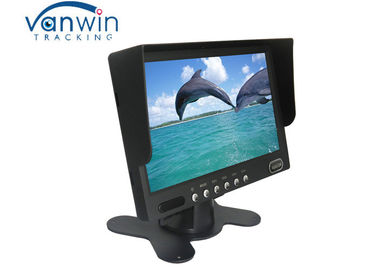

7 inch TFT car dashboard monitor with Pillow, 2 cameras inputs for Truck Reversing
Car dashboard monitor Features
1. 7'' quad monitor or normal monitor for optional ,5 inch or 7 inch ,9 inch ,10 inch on stock.

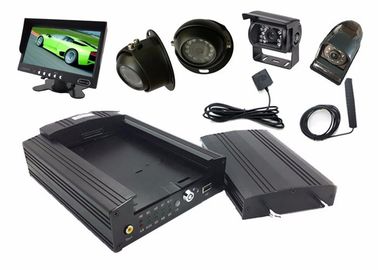

2. work with 4 cameras alone or together with mobile dvr system
3. very strict testing over 48 hours with very good quality
4. one year warranty
Car dashboard monitor Specification
| Screen Ratio | 16:9 |
| Back Light Luminance | LED, 300cd/m² |
| Resolution | 480xRGBx234 |
| Compatible system | NTSC & PAL (automatically) |
| OSD control |
Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
| View angle | Hor. L(60) R(60) Ver. UP(40) DOWN(60) |
| Image reversion | UP/Down and Left/Right |
| Power requirement | 12V DC (12-24V DC optional) |
| Power consumption | 5W |
| Storage temperature | -30 to 80℃ |
| Working temperature | -20℃ to 70℃ |
| Size | 172x115x22 mm |
| Weight | 356g |
| Key color | Silvery color |
| AV Inputs | 2 way video input, 1 way audio input |
| Number of Trigger and display | 2 triggers |
| Optional functions | Built-in speaker, 4 PIN connector suitable |
| Accessories | Remote controller, Power supply cable , User manual, Bracket |
| Package | 10pcs/box net weight:8.8KGS gross weight:9.6KGS M: 54.7*36*21.6cm |
