Place of Origin: | Shenzhen,China |
---|---|
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW619HD-GSW |
Minimum Order Quantity: | 1pc |
Price: | negotiated |
Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
Delivery Time: | 2-3 days for samples,15-30 days for large orders |
Payment Terms: | T/T or western Union or Paypal |
Supply Ability: | 5,000pcs per month; H.264 HDD AHD 4 channel car dvr recorder with SSD SD card storage |
Power Name: | HDD Mobile DVR | Storage Capacity: | HDD / SSD, Can Support 2TB HDD |
---|---|---|---|
Functions: | 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 6CH Alarm Input, Lan Port | Software Support: | Client, Server, Playback Software |

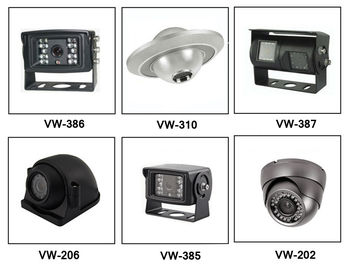

Accessories: | HDD, Cameras, Extension Cables, Monitor, Sound Pik-up | Customization: | RFID, APN, IR Port, Softwares, LOGO And Ect. |
Network: | WCDMA, CDMA2000, TDD-LTE, FDD-LTE | IR Remote Cotrol: | Support |
Tackback Device: | Support | Weight: | Net: 2200g, Gross: 3500g |
High Light: | car digital video recorder,hd car dvr |

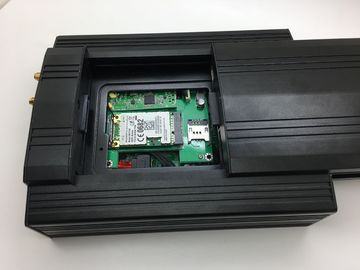

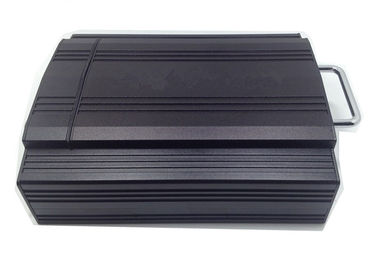

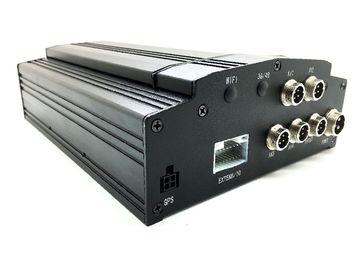

H.264 HDD AHD 4 channel car dvr recorder with SSD SD card storage
Main Features

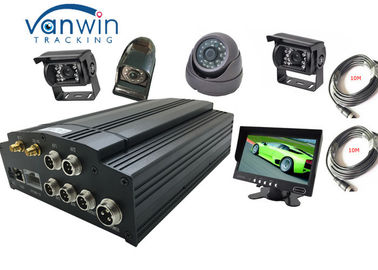

The complete kit:
Specification
Item |
Description |
||
OS |
Linux |
||
Graphics Operation Interface |
System parameters can be set through external display and remote controller |
||
Security Management |
2-level management for user password, administrator password, supporting encrypted transmission |
||
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
|
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, etc. |
||
Video Compression Format |
Compression coding. Applying hisilicon hi-performance processor. |
||
Dual-Stream |
Supported |
||
Preview Function |
Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images |
||
Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
||
Resolution |
CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most |
||
Quality |
Grade 1 to grade 5 for selection (descending) |
||
Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
||
Audio |
Audio Input, Output |
4-channel input, 1-channel output |
|
Compression Format |
G.726 coding |
||
Recording |
Storage Medium |
Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology; |
|
File Format/ System |
ASF/FAT32 |
||
Video Strategies |
Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
||
Video Search |
Searching by time, type, storage device and other conditions |
||
Video Playback |
Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files |
||
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time |
|||
Alarm |
Alarm Input/ Output |
6-channel on/off signal alarm input, 1-channel on/off signal alarm output |
|
Alarm Recording |
Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min |
||
Storage Space Alarm |
Supporting settings for alarm of storage space |
||
Function Alarm |
GPS overspeed alarm, acceleration alarm, motion detection alarm |
||
Communication Ports |
RS232, RJ45 10M/100M self-adaptable network interface |
||
Wireless Transmission (Optional) |
Supporting Wi-Fi; |
||
GPS (Optional) |
Supporting external GPS |
||
PTZ Control |
Supporting PTZ control realized by local; |
||
Parameter Configuration |
Supporting parameter configuration functions for mobile DVR coding channel; |
||
G-Sensor |
Embedded |
||
System Upgrading |
Supporting SD card, hard drive upgrading and remote upgrading |
||
Power Supply and Power Consumption |
Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
|
Input Voltage |
DC:+8V ~ +36V |
||
Output Voltage |
+12V@4*0.5A; +5V@0.5A |
||
Power-off Protection |
With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure |
||
Power Consumption |
<10W in normal operation; <0.5W in standby mode |
||
Operating Environment |
Temperature |
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
|
Humidity |
10% to 95% |
||
Dimensions |
160(W) x62(H) x200(D) mm. |
||
Weight |
Net: 2200g, Gross: 3500g |
It can support remote online monitoring by computer and Mobile APP.
If you're interested in the system above or other vehicle security system,
please be free to get the high-quality solution and system with us.
