9 Inch HD rear view camera monitor with 3CH 1080P / 720P / Analog Cameras
Product Details:
| Place of Origin: | Shenzhen,Guandong |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-910HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Color Neutral Box ; Neutral Color box,white box and customize box for your option Packing details: 10pcs/box net weight: 10.42KGS gross weight:11.22KGS M: 62.4*46*24cm |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 pcs per month ; 9 Inch HD rear view camera monitor with 3CH 1080P / 720P / Analog Cameras |
|
Detail Information |
|||
| Size: | 9 Inch Screen | Resolution: | 1024xRGBx600 |
|---|---|---|---|
| Screen Type: | 9inch LCD, 16:9 | Connector: | 4 Pin Or RCA Connector |
| Image Reversion: | UP/Down And Left/Right | Video Input: | 3 Channel HD Video Input |
| Camera: | Front/side/rear Optional | Power Supply: | 12~24V |
| Compatible System: | NTSC & PAL (automatically) | Warranty: | 12 Months |
| High Light: | car reverse lcd monitor,car rear view monitor |
||
Product Description

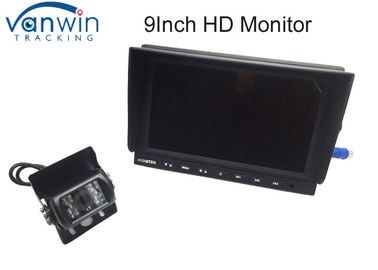

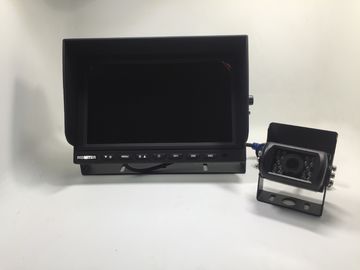

9 Inch HD Car rear view camera monitor with 3CH 1080P / 720P / Analog Cameras
Car rear view camera monitor Main Functions
1.The AHD monitor have 3 HD video input ,it means it can connect 3 AHD cameras for monitoring in the vehicle DC12-24V.
2. Also have normal monitor for optional ,like 5inch ,7 inch ,9 inch ,10.1 inch with quad or non-quad.
Also with 7inch and 9inch monitor DVR for choice .
3. We would like to provide one full set for your testing with best price as we can .
You will like us and our products so much .
4. Professional manufacture for MDVR system and different kinds of car monitors and cameras for optional.
5. We also have our own SMT factory with all kinds of chips production
6 All monitors and cameras and MDVR have been tested over 48 hours before sending .Quality and credit is our credit firstly .
7. We are very honest and kind to serve you well .
8. Your money is safe here.
Car rear view camera monitor Specification
| Screen Ratio | 16:09 |
| Back Light Luminance | LED, 300cd/㎡ |
| Resolution | 1024xRGBx600 |
| Compatible system | NTSC & PAL (automatically) |
| OSD control | Brightness, Contrast, Saturation, Volume, Language |
| (English, Simplify Chinese) | |
| View angle | Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
| Image reversion | UP/Down and Left/Right |
| Power requirement | DC 12-24V |
| Power consumption | 5W |
| Storage temperature | -30〜80℃ |
| Working temperature | -20℃ to 70℃ |
| Size | 285mm*184mm*34mm |
| Weight | About 900g |
| Key color | Black |
| AV Inputs | 3 channel HD video input, single image display, support 720P@25/30, 720P@50/60, 1080P@25/30 |
| Number of Trigger and display | 3 triggers |
| Optional functions | 4 PIN connector or RCA connector |
| Other features | OSD menu, Remoter control, Sunshade design around |
| Accessories | Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench |
| Package | 10pcs/ctn net weight:15.08KGS gross weight:15.88KGS M: 45.8*44.3*38.5cm |
