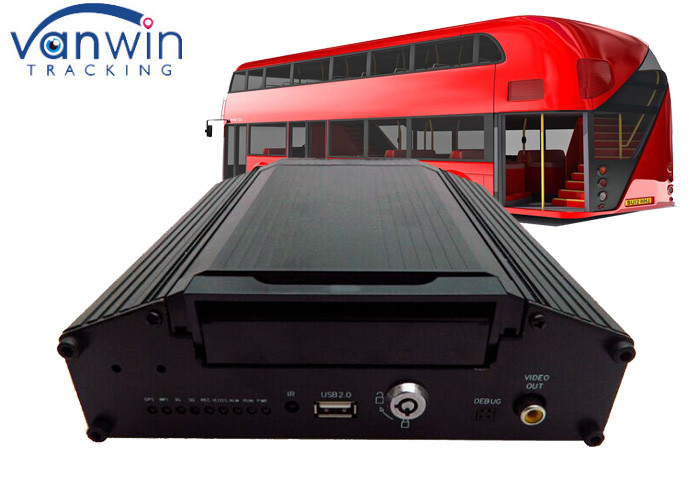

H.264 8 Channel Mobile DVR with Anti shock G-Sensor GPS 3G full 1080P MDVR camera

Basic Information
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW613B
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month; 8ch H.264 Mobile DVR with Anti shock G-Sensor GPS 3G full 1080P MDVR camera solution for Bus
Power Supply: 8V-36V Storage Capacity: HDD/SSD, Can Support 2TB
Basic Function: 8 Cameras Monitoring With 3G Real Time, GPS Tracking,Wi-Fi Software Support: Client, Server, Playback Software
Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Quality: The World Class Anti-vibration Technology
System Upgrading: Supporting SD Card, Hard Drive Upgrading And Remote Upgrading Cameras: 1~8 AHD Cameras
WIFI Download: Support Dimensions: 150*137*60MM
Video Recording: Full 720P Recording Weight: 1.4KG
High Light:

car camera dvr


digital video recorder

8ch H.264 Mobile DVR with Anti shock G-Sensor GPS 3G full 1080P MDVR camera solution for Bus

The MDVR supports 8 channel FULL 720P video recording, 3G/4G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45, RS232&485, I/O port interface for multiple outer device integration. Its storage (max 2TB) lasts more than 80 days recording.

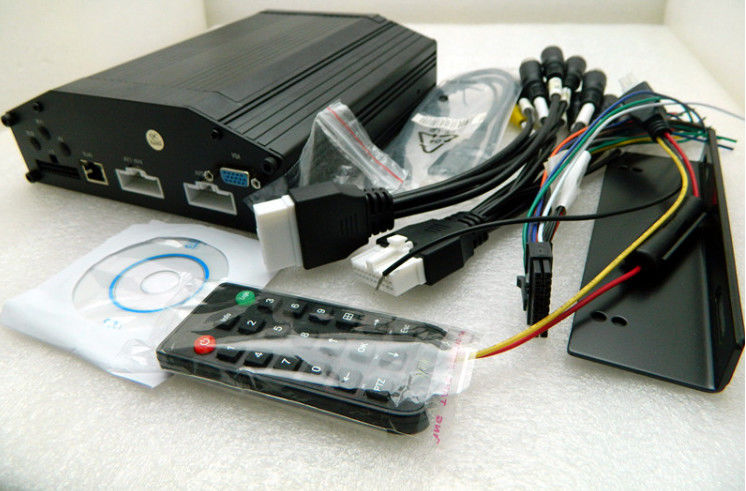

The complete system includes:

1. One MDVR with 3G GPS WIFI G-sensor for Option
2. 8 cameras with extension cables
3. One monitor for the driver
4. HDD 500GB/1TB/2TB
5. Micphone, Talkback device, Panic button

Main Features

1. H.264 video compression, multi code stream.

2. Support 8CH 720P HD real-time video inputs. Also, support 8CH analog cameras inputs or compound inputs for 4CH HD cameras and 4CH analog cameras.

3. 1CH VGA output is optional.

4. With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.

5. 8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.

6. Support a 1T 2.5 -inch HDD and 1 256G SD card storage

7. With watchdog abnormal restart protection function, it can better protect the machine and video.

8. Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).

9. Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.

10. Support 8CH alarming inputs and 1CH independent alarm input.

11. Optional for 1CH RS232 Serial port or 1CH RS485 extension.

12. Support GPS/G-Sensor.

13. Support remote operation and monitoring by 3G and 4G.

14. Support Wifi and automatic data download.

15. Support ministry of communications agreement, support SMS remote configuration and equipment control.

16. Support voice broadcast, intercom and text schedule dispatch.

17. Support fuel sensor, temperature sensor, POS, LED advertising screen.

18. Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.

19. With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.

20. Support all vehicles, including bus, taxi, truck, school bus, etc.

H.264 8 Channel Mobile DVR with Anti shock G-Sensor GPS 3G full 1080P MDVR camera 0

H.264 8 Channel Mobile DVR with Anti shock G-Sensor GPS 3G full 1080P MDVR camera 1


Operating System



English, Chinese or Customized language.

Video Compression



Support time, date, vehicle ID, image, etc.


OSD Interface

Can external connect to LCD and set the system specifications

by remote

Video and Recording

Video Input

4CH 1080P/720P AHD/Analog/Compound video input, aviation connector,

1.0Vp-p, 75Ω

Video Output

1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω.

Support 1CH full screen and 4CH division.


Single/4CH Pictures Preview, support full screen of event trigger or

back view of car reversing


Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 720P



Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest.


Video Rate

PAL:100 fps,CCIR625line,50 scenes

NTSC:120 fps,CCIR525line,60 scenes

CIF:256Kbps - 1.5Mbps,8 grades image quality for optional

HD1:600Kbps - 2.5Mbps,8 grades image quality for optional

D1:800Kbps - 3Mbps,8 grades image quality for optional

720P:800Kbps - 4Mbps,8 grades image quality for optional

1080P:2Mbps - 6Mbps,8 grades image quality for optional

Recording Mode

Default automatic video recording, support ignition video recording,

schedule video recording, alarm video recording, etc


Audio Input

4CH Aviation connector inputs

Audio Output

1CH Aviation connector output, Output level:1V - 2V

Compression format

G.726, Speed for 8KB/s

Alarm Input

4CH level alarm inputs

Alarm Output

1CH level signal output

Communication Interface

Optional for 1CH RS232 or 1CH RS485

Video Storage


Support a 2T 2.5 -inch HDD and 1 256G SD card storage


Support SD card local upgrade, remote upgrade automatically


File Format

H.264 general video format

File System

FAT32 exclusive file system

Video Playback

Video Search

Search recorded video files by recording time and recording method


Support at max 4 channel synchronous playback, suspend,

forward, backward

Support 2/4/8/16 times speed forward or backward

Security Management

User Password or administrator password management,

support screen locked

Expansion functions

TTS Voice broadcast

Support TTS voice broadcast

Series port expansion

Support external equipment connecting for advertising screen,

PTZ control, fuel sensor, etc

Power and

Power Management

Self-adaptive wide voltage input, with protect functions for overload,

undervoltage, short circuit, reversing connection, etc


Support time setting startup/shutdown, delayed power off function

Power and


Input Voltage

DC:+8V - +36V

Output Voltage


Power-off Protection

UPS technology to protect all recorded information automatically

and make sure the files undamaged in case of sudden power off.


Normal working < 14W, standby < 0.5W

Working environment


-20℃ - +70℃


20% - 80%

SD Card Type Series
