High resolution MINI Sony CCD taxi night vision camera with audio optional
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-108 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default; |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; High resolution MINI Sony CCD taxi night vision camera with audio optional |
|
Detail Information |
|||
| Type: | Taxi Camera | Sensor: | Sony CCD |
|---|---|---|---|
| TV System: | PAL Or NTSC | Voltage: | DC12 |
| Connector: | 4 Pin Aviation, Square, BNC Connector | Warranty: | 12 Months |
| Resolution: | CCD 600TVL/ 720P AHD | View Angle: | 140 Degree |
| Application: | Taxi, Small Car, Bus, Van | IR Lights: | 4 Pcs |
| Highlight: | small hidden cameras,security monitor camera |
||
Product Description

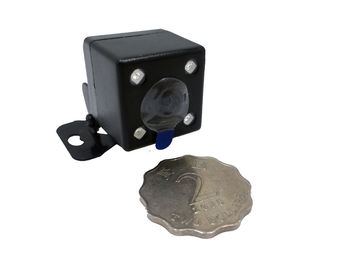

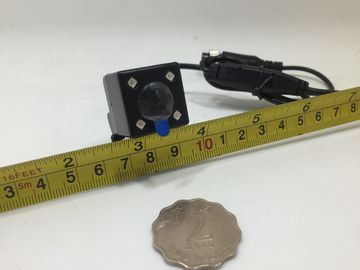

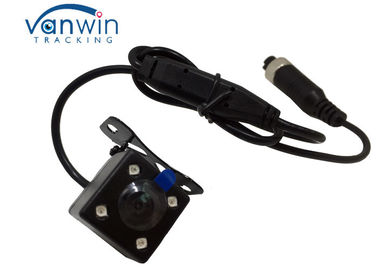

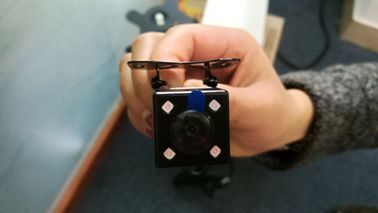

High resolution MINI Sony CCD taxi night vision camera with audio optional
It can be used with mobile DVR system or reversing system for frontview or rearview. It's very welcomed with its good night vision, wide degree, and mini size.
Taxi camera inside or outside
Lens: 1.8mm/2.2mm
Lens Angle: 140°
Infrared LED light: Yes, 4pcs
Anti-electromagnetic interference, excellent video output
Low power consumption, wide temperature working
Easy installation, vehicle surface or flush mount
PAL/NTSC optional, DC12V power supply;
Specifications:
| Image Sensor | 1/3" 600TVL SONY CCD |
| Video System | PAL/NTSC |
| Pixels | PAL:752(H)×582(V) |
| NTSC:768(H)×494(V) | |
| Horizontal Resolution | 600 TVL |
| Min Illumination | 0.01LUX(0 Lux IR on) |
| SNR | ≥46dB |
| Electronic Shutter | 1/50-1/10000(S) |
| Video Output | 1.0V±0.5Vp-p 75Ω |
| View Angle | 140° |
| Working Voltage | DC12V±0.5V |
| Consumption | 100mA±10% |
| Display image | Mirror/normal optional |
| MIC | Optional |
| Camera Len | f:3.6mm |
Application:
1. Taxi or small car, bus
2. MDVR or rearview camera system
