High Quality Car Waterproof COMS SHARP SONY CCD 600tvl side back view security camera for truck
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-399 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; High Quality Car Waterproof COMS SHARP SONY CCD 600tvl side back view security camera for truck |
|
Detail Information |
|||
| Product Name: | Bus / Truck Cameras | Sensor: | 1/3 Sharp Sony Car Camera |
|---|---|---|---|
| TV System: | PAL Or NTSC | Voltage: | DC12/24V |
| Waterproof: | IP68/IP69 | Body Size: | 7*5*5.8CM |

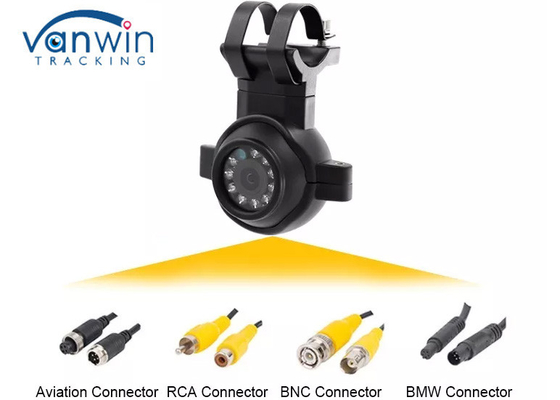

| Connector: | 4 Pin Aviation, Square, BNC Connector | Resolution: | 600TVL/700TVL; AHD 720P / 960P / 1080P |
| Application: | For Trailer / Bus / Truck / Heavy Duty | Special Features: | Waterproof, Private Mold, Wide Angle |
| Type: | Analog Camera,IP Camera | Lens: | Hd 3mp 2.8/3.6/6mm Fixed Lens |
| Highlight: | mobile surveillance cameras,cctv surveillance camera |
||
Product Description

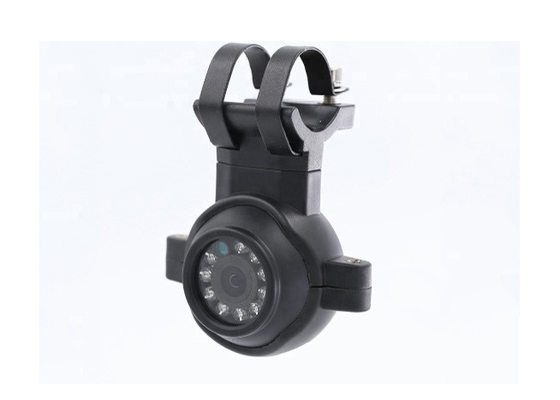

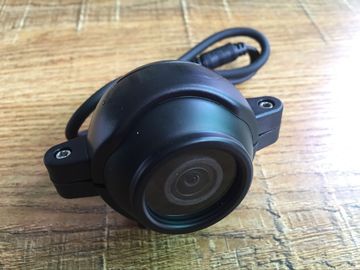

High Quality Car Waterproof COMS SHARP SONY CCD 600tvl side back view security camera for truck
Main Features:
- Bus/Truck front/ side view Camera
- High resolution 700TVL/600TVL, AHD 720P/960P/1080P for Option
- Waterproof, IP68, 10 IR leds(It's working well even without IR lights)
- Vandal-proof housing.

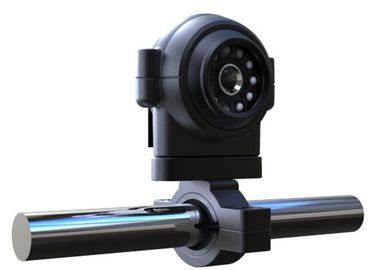

- With bracket for option
Technical parameters:
| Image Sensor | 1/3" Sony Color CCD | |||
| Horizontal Resolution | 700TV lines | |||
| TV System | PAL/NTSC | |||
| Effective Pixels | PAL:976(H) x 582(V) NTSC: 976(H) x 494(V) | |||
| Minimum Illumination | Color 0.001Lux;IR ON 0 Lux | |||
| S/N Ratio | ≥60dB(AGC OFF) | |||
| DAY&NIGHT MODE | COLOR MODE/AUTO MODE/B&W MODE | |||
| Auto Gain Control | AUTO/MANUAL,8 Value settings | |||
| Back Light Comp | Back light compensation, high light suppression | |||
| White Balance | Multi- mode selection | |||
| Noise Reduction | 3D | |||
| WDR | High/Middle/Low | |||
| Lens | 2.8MM | |||
| Electronic shutter | AUTO/1/50(1/60)-1(100,000Sec) | |||
| Video Out | 1.0V p-p 75, BNC connector | |||
| Control mode | OSD manual,support 8 languages | |||
| Synchronization System | Internal | |||
| Scanning System | 2:1 Interlaced | |||
| PRIVACY | 8 areas,freely set up position,size and 8 colors | |||
| Motion Detection | Grid tracking,4 areas,freely set up positions and size | |||
| IR LEDs | 10PCS | |||
| IR distance | 5~10M | |||
| Waterproof level | IP66 | |||
| Working temperature | -20°C~+70°C | |||
| Power supply | DC12V±10% | |||
| Power consumption | ≤3W | |||
| Dimension | 72*50*58mm | |||
Application:
- Outside car camera(inside vehicle installation or outside vehicle installation)
- Used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.special for truck.
