Spy multi angle car front rear view camera with 3M Sticker VHB Mount for car interior
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-530 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default; |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; Spy multi angle car front rear view camera with 3M Sticker VHB Mount for car interior |
|
Detail Information |
|||
| Type: | Taxi Camera | Sensor: | CMOS |
|---|---|---|---|
| TV System: | PAL Or NTSC | Voltage: | DC12 |
| Connector: | 4 Pin Aviation, RCA | Warranty: | 12 Months |
| Resolution: | CMOS 1099 HD Solution | View Angle: | 110 Degree |
| Usage: | Any Place | Application: | Taxi, Small Car, Bus, Van |
| High Light: | small hidden cameras,security monitor camera |
||
Product Description
Spy multi angle car front rear view camera with 3M Sticker VHB Mount for car interior
It can be used with mobile DVR system or reversing system for frontview or rearview.
It's very welcomed with its samll size and easy installation.
Main Features:
1. Rearview or Monitoring for optional
2. Over 110 degree wide angle monitoring
3. Very small size with private mould, only we can produce it
4. Easy installation
5. One of best selling cameras
6. Cabale jack: aviation/BNC/RCA optional;
7. PAL/NTSC optional, DC12V power supply;
Specifications:
| Image Sensor | 1/3inch CMOS PC1099 |
| Video System | PAL/NTSC |
| Horizontal Resolution | 600 TVL |
| Min Illumination | 0.01LUX(0 Lux IR on) |
| Waterproof | IP67 |
| Video Output | 1.0V±0.5Vp-p 75Ω |
| View Angle | 1.9mm 110° |
| Working Voltage | DC12V±0.5V |
| Consumption | 100mA±10% |
| Display image | Mirror/normal optional |
| Output signal | Analog |
| Working Temperature | —20℃～75℃ RH95％ MAX |
Application:
1. Taxi or small car, bus
2. MDVR or rearview camera
Installation cases:
It's very easy to install with 3M VHB sticker and no need to drill a hole or with screws.
As its small size, it can be installed at any place especially the dead zone for driver,
especially for private car or taxies.

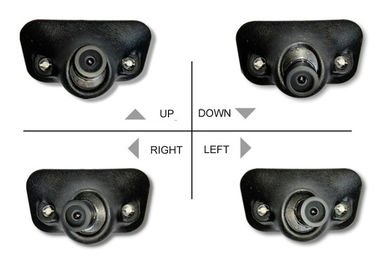

Dead zone like the pictures above:
That's why you need to install the mini camera to view dead zone clearly.
