Mini 15M IR Metal Car Dome Camera Night Vision AHD 720P 140 Degree Wide Angle
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-C200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month , Night Vision AHD 720P 15M IR Metal interior Mini dome camera for bus car van truck |
|
Detail Information |
|||
| TV System: | PAL Or NTSC | Type: | HD Car Camera |
|---|---|---|---|
| IR LED: | 12pcs | Night Vision: | Yes |
| Resolution: | Analog / AHD/ HD | Lens Angle: | 140 Degree Wide Angle |
| Application: | Inside For Any Vehicle | Sensor: | CMOS / CCD |
| High Light: | security monitor camera,reverse parking camera |
||
Product Description

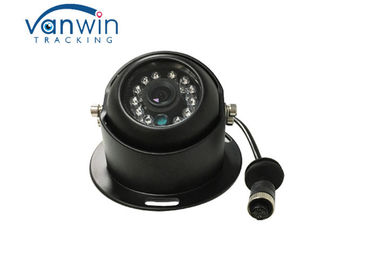

Night Vision AHD 720P 15M IR Metal interior Mini dome camera for bus car van truck
Overview
This is a closed circuit television CCTV camera car surveillance HD dome camera. It works with 12pcs F5 infrared LEDs to create 15 meters infrared distance for night vision to monitor in dark environment. It adopts 2.8mm, 3.6mm or 6mm fixed focus lens to let you view objects within 10~15 meters. It can be worked with DVR recorder, quad processor, DVR card. It can be viewed through monitor, TV, PC, smart phone and etc.
Technical Specifications
| Image Sensor | 1/4＂AHD CMOS, 720P, 0.01Lux/F1.2 | 1/3＂AHD CMOS, 960P, 0.01Lux/F1.2 | 1/3＂AHD CMOS, 1080P, 0.01Lux/F1.2 |
| Video System | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Pixels | PAL/NTSC: 1280*720 | PAL/NTSC:1280*960 | PAL/NTSC:1920*1080 |
| Min Illumination | 0.01LUX(0 Lux IR on) | 0.01LUX(0 Lux IR on) | 0.01Lux (0 Lux IR on) |
| SNR | ≥46dB | ≥46dB | ≥48dB |
| Electronic Shutter | 1/50-1/10000(S) | 1/50-1/10000(S) | 1/50(1/60) - 1/100000 (S) |
| Video Output | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω |
| View Angle | 140° | 140° | 140° |
| Working Voltage | DC12V±0.5V | DC12V±0.5V | DC12V±0.5V |
| Consumption | 2.2W | 2.2W | 2.2W |
| Display image | Mirror/normal optional | Mirror/normal optional | Mirror/normal optional |
| MIC | Optional | Optional | optional |
There are three kinds pof connectors for option
1. 4-pin connector
2. RAC connector
3. BNC connector
Applications
FAQ
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
