| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-C407 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral box, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; Sturdy truck front rearview Camera with 10 IR lights, CCD 600TVL / 720P AHD supported |
| Type: | 3MP 1080P HD Bus / Truck Camera | Resolution: | CCD 600TVL / AHD 720P / AHD 960P / AHD1080P Optional |
|---|---|---|---|
| TV System: | PAL Or NTSC | IR Cut: | YES |
| Test Time: | Over 48 Hours | Mode: | AHD Camera Or Analog Camera |
| Waterproof: | IP68 | Lens: | 2.8mm/3.6mm/6.0mm For Option |
| IR Lights: | 10 Pcs | Connector: | Aviation / RCA Connector |
| High Light: | mobile surveillance cameras,cctv surveillance camera |
||

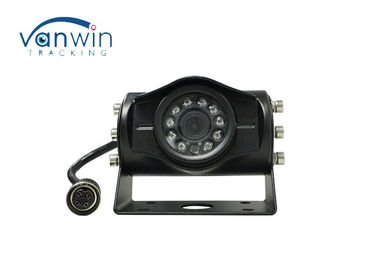

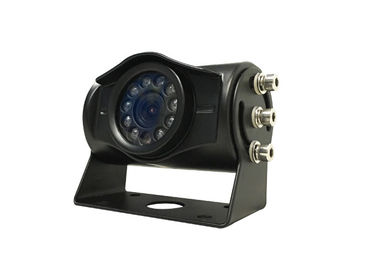

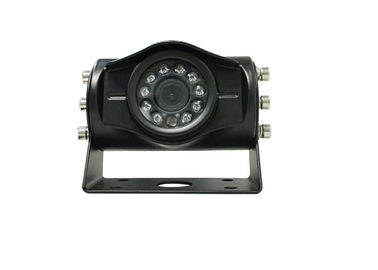

Sturdy truck front rearview Camera with 10 IR lights, CCD 600TVL / 720P AHD supported
1. 720P/960P/1080P AHD Camera for optional ,also analog chips like CMOS/CCD to choose
2. We also have our own SMT chip factory ,who provides all kinds of chips and mainboard for cameras and MDVR suppliers.
3. We can give you best price as we can ,and also very good quality products.
4. Please trust on us that many clients have ordered over 100 sets after samples testing .
5. We provide of all kinds of cameras and monitors for choice .
Welcome you to test strictly .
Main Specification (1080P for example)
| Sensor | 1/3" AHD 1080P, |
| TV System | PAL / NTSC |
| Effective Resolution | 1920(H)×1080(V) |
| Minimum Illumination | 0.01 LUX / F1.2 |
| Horizontal Resolution | AHD: 2.0 MP 1080P,Analog: 2000 TVL |
| Day&Night Mode | External control (default)/automatic/color/black and white |
| Frame Rate | 1080P@25fps / 1080P@30fps |
| Synchronization Method | inter-sync |
| Shutter | AUTO /1/50～1/５0000s |
| SNR | >46dB |
| Video Output | AHD/TVI/CVI/CVBS Switchable |
| Working Temperature | -20 º C to 60 º C |
| Working Humirity | less than 90 % |
| Power | DC12V (±10%) |
Application
