4G 4 Channel GPS Video vehicle dvr system with 2 Tera HDD Storage 4 Cameras RS232 MDVR

4G 4 Channel GPS Video vehicle dvr system with 2 Tera HDD Storage 4 Cameras RS232 MDVR

4G 4 Channel GPS Video vehicle dvr system with 2 Tera HDD Storage 4 Cameras RS232 MDVR

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW619HD-GSW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 1~3 days for samples,7~15 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month;
Contact Now
Detailed Product Description
Power Name: 4G 4 Channel GPS Video Recorder, Mdvr Storage Capacity: HDD / SSD, Can Support 2TB HDD
Functions: 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 6CH Alarm Input, Lan Port Software Support: Client, Server, Playback Software
Accessories: HDD, Cameras, Extension Cables, Monitor, Sound Pik-up Customization: RFID, APN, IR Port, Softwares, LOGO And Ect.
Network: WCDMA, CDMA200, TDD-LTE, FDD-LTE Weight: Net: 2200g, Gross: 3500g
SD Card: Support Power Supply: 8~32V Wide Voltage
RS232 / RS485: Supported Panic Button: Support
High Light:

3g cctv dvr

,

car mobile dvr

4G 4 Channel GPS Video vehicle dvr system with 2 Tera HDD Storage 4 Cameras RS232 MDVR



Vanwin offer a wide selection of mobile digital video recorders for Taxi, bus, truck, ship and ect.

Our mobile DVRs are designed to withstand the rigors of continuous use in a range of vehicles, on the road and off it.

And with advanced features like built-in GPS, G-sensor, anti-shock housing, Overvoltage protection, 4G, Hotspot and ect.

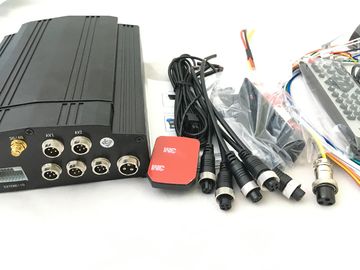

The complete kit:


1. One MDVR with 3G GPS WIFI G-sensor for Option

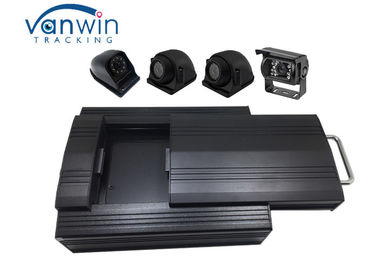

2. 1~4 cameras with extension cables
3. One monitor for the driver
4. HDD 500GB/1TB/2TB
5. Micphone, Talkback device, Panic button

1. Standard configuration
MDVR host 1pc
Power cable 1pc
I/O Cable 1pc
Standard cables 5pcs

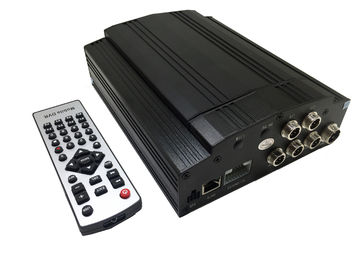

Remote control 1pc
keys 1pc
3G/4G Antenna 1pc
WIFI Antenna 1pc
GPS Antenna 1pc
User manual 1pc

2. Optional configuration
Monitoring Cameras 1~4 pcs
LCD monitor
Extension cables
Storage card
Talkback device/Micphone
Oil sensor/People Counter and ect.


Vehicle dvr system​ Main Features&Specifications



1. H.264 Video Compression, multiple steam recording, Support 4CH 720P HD video recording, Support

4CH 720P AHD input/ 4CH analog SD camera input/ 2CH HD + 2CH SD mixed input;
2. High quality real time recording, 720P/CIF/HD1/D1 Optional, quality adjustable;
3. Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit

protection, to meet kinds of car application;

4. Support 12VDC/2.5Amp output voltage, power supply for Camera/Screen etc;

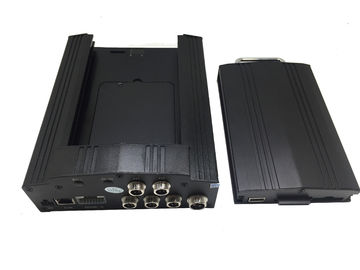

5. 1SSD/HDD+1SD Card Support, each max 2TB+128GB,,protect DVR from shock & Dust damage;
6. Watchdog abnormal restart function, protect SD Card and Record;
7. Exclusive File System protect data completeness,prevent SD Card fragment;
8. ACC Delay off, can set 24 hours;
9. Auto Record/Manual Record/Alarm Record/Timed Record etc working mode to meet different

requirements;
10. Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
11. Support GPS/ G-sensor Optional;
12. Optional single RS232 serial port or single RS485 extension
13. 6CH Alarm input (Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
14. 2CH Alarm Output;
15. Support picture snap when alarm
16. Easily Smart GUI Interface, saving time in device setting;
17. Can upgrade the software via SD card/HDD.
18. Stability Aviation plug, easily connecting and high shock proof;



tem Description
OS Linux
Graphics Operation Interface System parameters can be set through external display and remote controller
Security Management 2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview Video Input, Output 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
Video Compression Format Compression coding. Applying hisilicon hi-performance processor.
Dual-Stream Supported
Preview Function Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images
Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
Resolution CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most
Quality Grade 1 to grade 5 for selection (descending)
Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio Audio Input, Output 4-channel input, 1-channel output
Compression Format G.726 coding
Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;
File Format/ System ASF/FAT32
Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
Video Search Searching by time, type, storage device and other conditions
Video Playback Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm Alarm Input/ Output 6-channel on/off signal alarm input, 1-channel on/off signal alarm output
Alarm Recording Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
Storage Space Alarm Supporting settings for alarm of storage space
Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
Communication Ports RS232, RJ45 10M/100M self-adaptable network interface






4G 4 Channel GPS Video vehicle dvr system with 2 Tera HDD Storage 4 Cameras RS232 MDVR

How to install the 4G 4 Channel GPS Video vehicle DVR?

4G 4 Channel GPS Video vehicle dvr system with 2 Tera HDD Storage 4 Cameras RS232 MDVR



It can support remote online monitoring by computer and Mobile APP.



4G 4 Channel GPS Video vehicle dvr system with 2 Tera HDD Storage 4 Cameras RS232 MDVR

4G 4 Channel GPS Video vehicle dvr system with 2 Tera HDD Storage 4 Cameras RS232 MDVR



Application

4G 4 Channel GPS Video vehicle dvr system can be used for any vehicle, like bus, truck, van, mini bus, taxi,

police car, ship and ect.





If you're interested in the 4G HDD MDVR system above or other vehicle security system,

please be free to get the high-quality solution and system with us.
