| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-388 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |

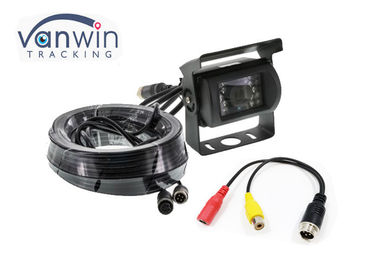

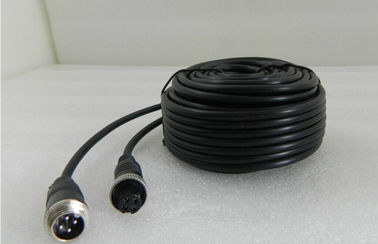

| Supply Ability: | 5,000pcs per month; 1080P HD Waterproof Bus Surveillance Backup Camera with 10m extension cables and adapter |
| Type: | Trailer Camera | Resolution: | CCD600TVL/720P/960P/1080P Optional |
|---|---|---|---|
| TV System: | PAL Or NTSC | IR Cut: | YES |
| Test Time: | Over 48 Hours | SMT Factory: | YES |
| Mode: | AHD Camera Or Analog Camera | Waterproof: | Yes |
| Lens: | 2.8mm/3.6mm | IR Lights: | 24 Pcs |
| High Light: | mobile surveillance cameras,cctv surveillance camera |
||
Main Features:
Image sensor specifications:
Feature | Bus Track VAN Cameras |
Image Type | 1/3" 1/4 Color CCD/CMOS |
Night vision | With IR lamp |
LED | 18pcs |
TV System | NTSC/PAL |
Lens Angle (Deg.) | 140 degree |
IP Rating | IP69K |

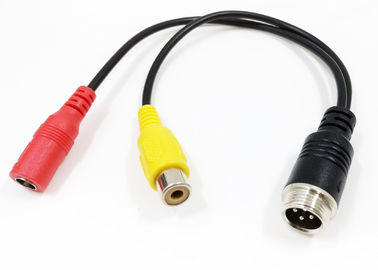

Connector | 4P connector or RCA connector for selection |
Effective Pixels | 648*512 /640*480 |
Horizontal Resolution | 420TVL/600TVL/720/960p/1080p |
B.L.C | Back light Compensation (Auto) |
White Balance | Auto White Balance (Auto) |
Minimum Illumination | 0Lux (LED ON) |
S/N Ratio | ≥48dB |
Electronic Shutter | 1/60~1/100,000 Sec |
Power consumption | <3W |
Built-in Lens | f:1.8mm |
Power Consumption | DC 5-20V |
Audio | without |
Operation Temperature | -30℃~+70℃.RH95% Max |
Storage Temperature | -40℃~+80℃.RH95% Max |
Certificate | FCC,CE,ISO9001,IATF16949, RoHs |
Weight/Package | 4Pin connection diagram:0.3KG |
