| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-119 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; Waterproof Car Camera 360 degree All Round Rear View Camera System for Bus |
| Type: | 360 Degree Mini Camera | TV System: | PAL Or NTSC |
|---|---|---|---|
| Voltage: | DC8~35V | Connector: | 4 Pin Aviation,square, BNC Connector, BWM |
| Warranty: | 12 Months | Resolution: | CCD 600TVL/960P For Option |
| View Angle: | Horizontal Angle 180°±5° | IR Lights: | 9pcs |
| Waterproof: | Yes | View Angle: | 180 Degree In Horizontal |
| High Light: | small hidden cameras,security monitor camera |
||

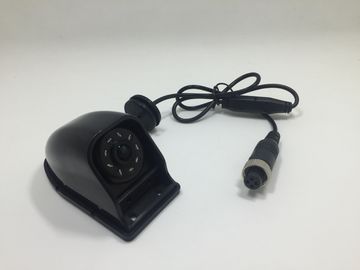

Waterproof Car Camera 360 degree All Round Rear View Camera System for Bus
1. Max Sony CCD 600TVL/960P for optional
2. 180 horizontal angle monitoring
3. Very small size with private mould
4. Very strong and stable quality
5. One of best selling cameras
6. Cabale jack: aviation/BNC/RCA optional;
7. PAL/NTSC optional, DC12V power supply;
8. mini size with good quality
9. Waterproof
10. shockproof
It can be used with mobile DVR system or reversing system for front view, side view and rearview. It's very welcomed with its good night vision, wide degree, and special mold. It's very sturdy and not easily broken.
Main Specifications:
| Image Sensor | 1/3 AR0130 CMOS |
| Video System | PAL/NTSC |
| Pixels | PAL:1280(H)×960(V) |
| NTSC:1280(H)×960(V) | |
| Horizontal Resolution | 600 TVL/960P |
| Min Illumination | 0.0001 LUX / F1.2 |
| SNR | ≥46dB |
| Electronic Shutter | 1/50-1/10000(S); 1/60～1/100000s |
| Video Output | 1.0V±0.5Vp-p 75Ω |
| View Angle | 1.9/850 horizontal angle 180°±5° |
| Working Voltage | DC8-35V |
| Consumption | 100mA±10% |
| Display image | Mirror/normal optional |
| MIC | Optional |
| Camera Len | f:3.6mm |
Application:
1. Taxi or small car, bus, truck, van and ect.
2. Frontview, sideview, backview
2. MDVR, Reversing system
