Product Details:

Place of Origin: Shenzhen,Guandong
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW110-MQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiated
Packaging Details: Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn
Delivery Time: 3-7 working days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 5000 pcs per month;
Get Best Price Contact Now

Detail Information

Power Supply: 12V-24V DC Optional Screen Size: 10.1 Inch TFT LCD
AV Inputs: 4 Way Video Input,1 Way Audio Input For V2 Resolution: 1024xRGBx600
Monitor Types: 3 Inch,5 Inch,6 Inch,7 Inch,9 Inch,10 Inch,15 Inch For Optional Color: Black
Multi Languages: YES Function: Rack Mount 10 Inch HD Car TFT LCD On-board Monitor Display With Quad Pictures
Warranty: 12 Months Speaker: Yes, Built-in
Weight: 1080g Application: All Cars,coach,buses,Bus, Truck
High Light:

car video monitors

,

car reverse lcd monitor

Product Description

10.1 Inch TFT LCD backup camera monitor with 4 Cameras inputs, 1024 x 600 Resolution



Advantages



1. 4ch quad monitor for optional, different size to choose

2. Professional factory with better service and good price.

3. They are used for rear view system or vehicle monitoring system.

4. One year warranty

5. We have full set for monitors, car mobile dvr, cameras



Main Feartures



Specifications Model number: VW110-MQ
Screen Ratio 16:9
Back Light luminance 250–300cd/m2
Resolution 1024xRGBx600
Compatible system NTSC & PAL (automatically)
OSD control

Color, Brightness, Contrast, Volume, Language

(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)

View angel Hor. L(60) R(60) Ver. UP(40) DOWN(60)
Image reversion UP/Down
Power requirement 12V DC (12-24V DC optional)
Power consumption 5W
Storage temperature -30 to 80 ºC
Working temperature -20 to 70 ºC
Size 285x183x74 mm
Weight 1080g
AV Inputs 4 way video input,1 way audio output
Number of Trigger and display 4 trigger
Optional functions Built-in Dual transmitter
Other features Built-in TF/USB slot(OPTIONAL), TV(OPTIONAL) Built-in speaker, Remoter control, OSD menu

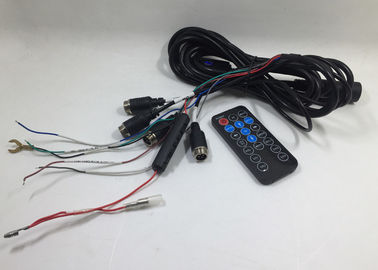

Accessories

Remote controller, Power supply cable , user manual, bracket, headrest frame& plug-in card, USB line
