4pin HD waterproof backup Camera for Truck / Bus / Van with 18 pcs IR lights 4pin HD waterproof backup Camera for Truck
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; 4pin HD waterproof backup Camera for Truck / Bus / Van with 18 pcs IR lights |
|
Detail Information |
|||
| Type: | Trailer Camera | Resolution: | CCD600TVL/720P/960P/1080P Optional |
|---|---|---|---|
| TV System: | PAL Or NTSC | IR Cut: | YES |
| Test Time: | Over 48 Hours | SMT Factory: | YES |
| Mode: | AHD Camera Or Analog Camera | Waterproof: | Yes |
| Lens: | 2.8mm/3.6mm | IR Lights: | 24 Pcs |
| High Light: | mobile surveillance cameras,cctv surveillance camera |
||
Product Description

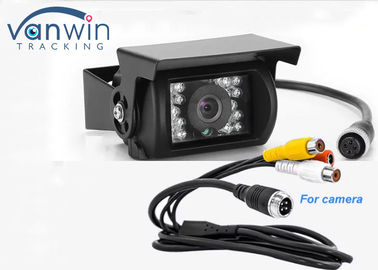

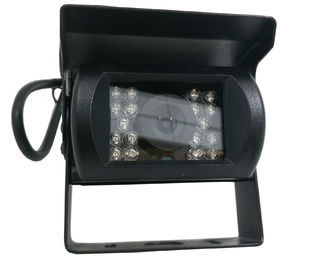

4pin HD waterproof backup Camera for Truck / Bus / Van with 18 pcs IR lights
Main Features:
- Commercial type back up camera with infrared illumination
- Aluminum Alloy housing with powder coated finish
- Reverse image for rear view use
- 1/4" CCD/CMOS Image Sensor
- IR Infrared 18 LEDs for Night Vision 32 ft distance
- Adjustable vertical axis with 2 retaining screws

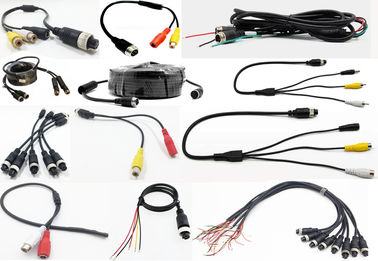

- Includes 50 foot 4-pin cable
- 4 Pin Connector - RCA Adapter is included
- Parking grid lines with cut wire to turn them off
- Operates on 12-24V DC
Image sensor specifications:
- CMOS 420TVL/CCD 600TVL/CCD 700TVL/ 720P/960P/1080P
- 170° Wide Angle Camera - Blind Spot reduced
- Minimum Illumination: 0 Lux with IR LED's On
- Operating Temperature: -20° ~ +70° C (RH 95% Max)
- Power Supply: DC 12V-24V
- Waterproof Rating: Ip68
|
Feature
|
Bus Track VAN Cameras
|
|
Image Type
|
1/3" 1/4 Color CCD/CMOS
|
|
Night vision
|
With IR lamp
|
|
LED
|
18pcs
|
|
TV System
|
NTSC/PAL
|
|
Lens Angle (Deg.)
|
140 degree
|
|
IP Rating
|
IP69K
|
|
Connector
|
4P connector or RCA connector for selection
|
|
Effective Pixels
|
648*512 /640*480
|
|
Horizontal Resolution
|
420TVL/600TVL
|
|
B.L.C
|
Back light Compensation (Auto)
|
|
White Balance
|
Auto White Balance (Auto)
|
|
Minimum Illumination
|
0Lux (LED ON)
|
|
S/N Ratio
|
≥48dB
|
|
Electronic Shutter
|
1/60~1/100,000 Sec
|
|
Power consumption
|
<3W
|
|
Built-in Lens
|
f:1.8mm
|
|
Power Consumption
|
DC 5-20V
|
|
Audio
|
without
|
|
Operation Temperature
|
-30℃~+70℃.RH95% Max
|
|
Storage Temperature
|
-40℃~+80℃.RH95% Max
|
|
Certificate
|
FCC,CE,ISO9001,IATF16949, RoHs
|
|
Weight/Package
|
4Pin connection diagram:0.3KG
|
