Surveillance System Vehicle Security Camera Working With MDVR

Surveillance System Vehicle Security Camera Working With MDVR

Product Details:

Place of Origin: China
Brand Name: Vanwin Tracking
Certification: CE ROHS
Model Number: VW383

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: 5-70USD
Packaging Details: Carton Box
Delivery Time: 5-15 days
Payment Terms: T/T Western union, paypal
Supply Ability: 1000pcs/Month
Get Best Price Contact Now

Detail Information

Power Supply: DC12V Operating Temperature: -20°C~+60°C
Waterproof: IP69K Nightvision: Supported
Connector Type: 4pin Air Port/RCA Image Sensor: CMOS
Function: For Bus/truck's Backup View, Can Work With Mdvr Or Car Monitor Material: Metal Housing
Resolution: 720P/960P/1080P/ 700TVL/600TVL/500TVL
Highlight:

Surveillance System Vehicle Security Camera

,

MDVR Vehicle Security Camera

,

MDVR Car Security Camera

Product Description

Surveillance System Vehicle Security Camera Working With MDVR



Vehicle AHD IP 720P 1080P camera Working with MDVR for Security & Surveillance system




Product Description:

The Bus Surveillance Camera is a backup camera for vehicles, ideal for use on buses, trucks and other vehicles. It is designed for durability and is made with a metal housing that is waterproof rated at IP69K. The camera has a wide viewing angle of 90-170 degrees, and uses either PAL or NTSC TV system for optimal performance. It also features night vision capabilities, making it perfect for night driving. The power supply is a DC12V, making it easy to use with existing power sources. The Bus Surveillance Camera is the ideal choice for any vehicle in need of a reliable, high-quality camera.




Product Feature:

Type:Reverse Camera, Backup camera
Car Fitment:TOYOTA TRUCK, Toyota Lift Truck, Toyota - Europe Truck
View Angle:90°-120°
Function:Waterproof, NIGHT VIEW, Parking Line
Power:1W ~2W
Voltage:DC 12V
Warranty:2 years
Place of Origin:China
Model Number:EC-901AHD
Product name:car Backup camera
Pixel:1920 x 1080
Image sensor:1/3" CMOS
Resolution:1080 P
Waterproof:IP68
View angle:135°
Consumption:180mA
power:DC 12v
connector:4p aviator connector
certificate:E9 CE



Applications:

Surveillance System Vehicle Security Camera Working With MDVR 0Surveillance System Vehicle Security Camera Working With MDVR 1


Technical Parameters:

Camera

Sensor 1/3 CMOS
  TV System NTSC/PAL
  Camera Ir LED 9pcs IR lamp with excellent night vision
  Min IIIumination 0.1Lux@(F1.2,AGC ON);
  Electronic Shutter Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s
  Focus 2.4mm
  Lens Interface M12
  F.O.V 133° (D),106°(H),76°(V)
  Backlight Compensation Auto
  Resolution 700TVL(AHD 720P)
  Signal to Noise ratio Better than 48dB

Interface

Connect 4 Pin Aviation Female Interface
  Video Output 1Vp-p Composite Output(75Ω)
  Audio Input NONE
  Audio Output NONE

General

Material Metal&Plastic
  Operating Temperature -30℃~70℃
  Usage For passenger vehicles
  Operating Voltage DC 9-36V±10%(or From Reversing Monitor DC12V)
  Waterproof IP69K
  External Dimensions 82.6*60.5*56.5mm(L*W*H)


.

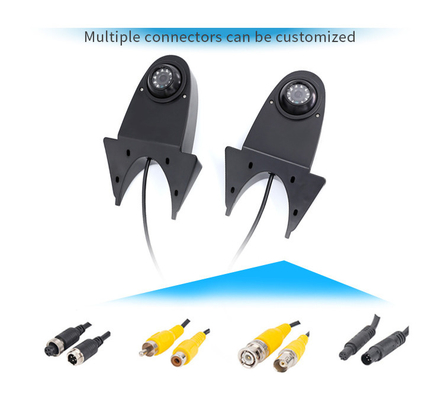

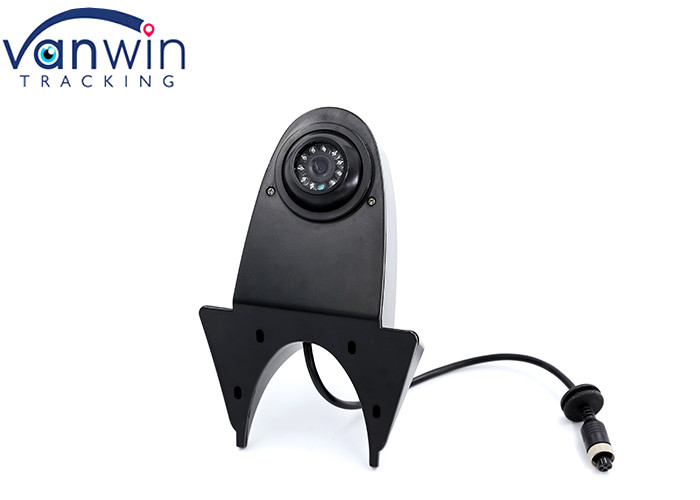

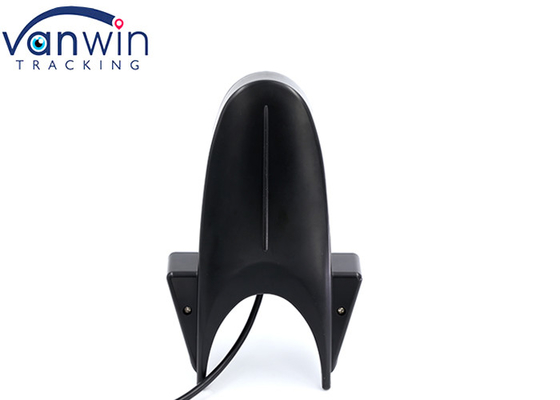

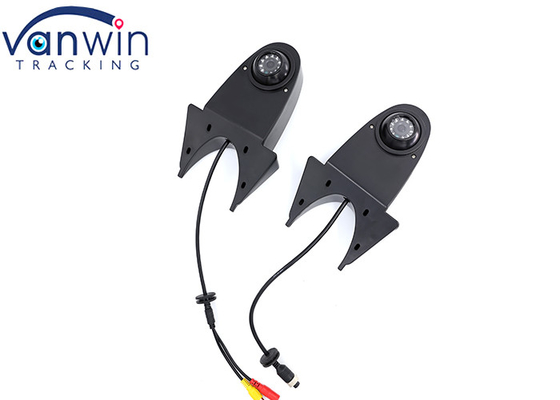

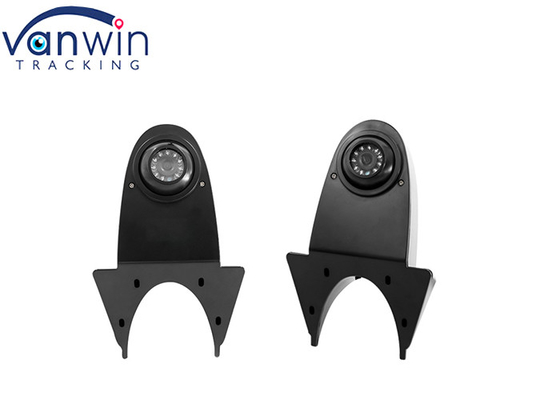

Product photos



Surveillance System Vehicle Security Camera Working With MDVR 2Surveillance System Vehicle Security Camera Working With MDVR 3Surveillance System Vehicle Security Camera Working With MDVR 4Surveillance System Vehicle Security Camera Working With MDVR 5
