| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-381 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; 4 Way System Waterproof Video Truck Side View Security 4G Vehicle Camera system |
| Type: | Truck Side View Rearview Camera | Application: | Side View Or Rearview Camera For Bus, Truck, Van |
|---|---|---|---|
| TV System: | PAL Or NTSC | Voltage: | DC 12V/24V |
| Connector: | 4 Pin Aviation, RCA | Warranty: | 12 Months |
| Resolution: | CCD 600TVL / 720P /960P /1080P | View Angle: | 110 Degree In Horizontal |
| High Light: | mobile surveillance cameras,cctv surveillance camera |
||

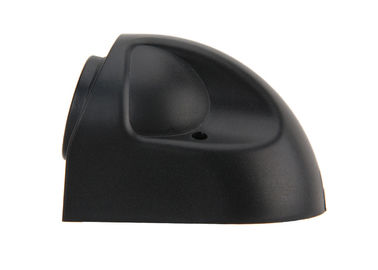

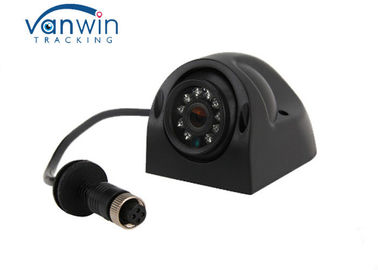

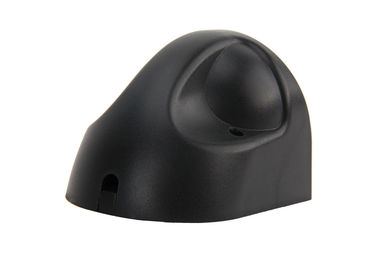

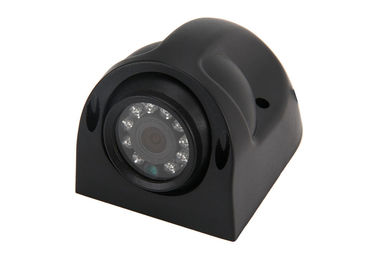

1/3" CMOS1080P Bus security wide side view camera for surveillance or reversing
It can be used with mobile DVR system or reversing system for side view, rearview.
It's very welcomed with its good night vision, sturty housing, and special mold. It's very sturdy and not easily broken.
wide side view camera Main Specifications
|
Technology
|
infrared |
| Sensor | AHD 1080P |
| Shape | Streamlined camera |
| Types | wide view camera |
| Waterproof | IP67 |
| Audio | Optional audio |
| Lens | 2.8MM/3.6MM |
| IR LED | 5PCS |
| Power | DC12V/24V |
| Color | Black |
| Connector | 4 PIN or RCA connector |
| Material | aluminium alloy |
| Effective Pixels | 720P 1.0MP/ 960P 1.3MP/1080P 2.0MP |
| Operating Temperature | -25℃~70℃ |
| Warranty | 1 Years |
| Chip Technical Parameters | |||
| Image Sensor | 1/2.9" IMX323 200W | Video Out | 1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
| Image System | PAL/NTSC | WDR | auto |
| Resolution | 1920 (H)×1080(V) | SNR | >45db |
| Min.illumination | 0.01Lux full color | White Belance | AWB |
| Electronic Shutter | 1/25s~1/100,000s | DR | 76db |
| Video Standard | AHD | Advanced Function | 2D_DNR |
| Frame Rate | 1920×1080@25 fps; 1920×1080@30 fps; |
Working Environment | -25℃~+70℃,Humidity 95% |
| Lens | 2.1/2.8/3.6 | Power supply | DC 12V +/-15%, |
Other side cameras for option
