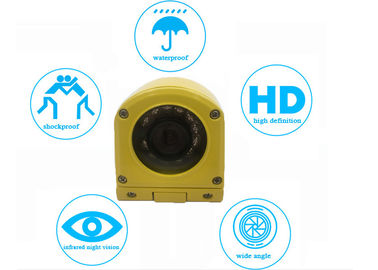

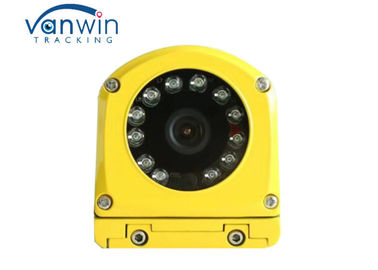

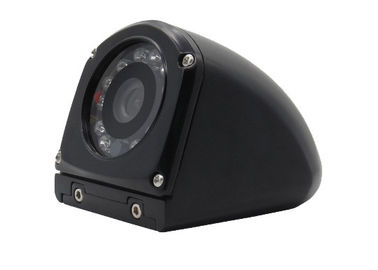

Private mold 12 Infrared LED lights SONY 700 TVL CCD Car Side Rear View Camera for School Bus

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-107
Minimum Order Quantity: 5 pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5,000pcs per month
Type: Side View Camera Resolution: CCD 600TVL/700TVL/720P/960P/1080P
Feature: Waterproof, Dustproof Color: Housing Black
Viewing Angle: 120 Degree TV System: PAL Or NTSC
Power: DC12 Or 24V Special Features: Waterproof / Weatherproof
Lens: 3.6mm,2.8mm,2.5mm Fixed Lens Sensor: CMOS And CCD
Ir Led: 12PCS Connector: 4 PIN Connector Or RCA Connector Or BNC
High Light:

mobile surveillance cameras


cctv surveillance camera

Private mold 12 Infrared LED lights SONY 700 TVL CCD Car Side Rear View Camera For School Bus


The camera is used with Mobile DVR / Car DVR (with 3G, 4G, GPS,WiFi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, school, bus, truck, police car, tour bus, tanker truck, escort car etc.


Side View camera Main Features:

  1. Side View Camera for Heavy-duty or Bus
  2. 600TVL/700TVL/720p/960p/1080p for options
  3. 12PCS Infrared LED lights
  4. CE,FCC,RoHS Certificates
  5. Antifog shock, wide voltage, low power design can meet vehicle environment and transient current .
  6. Cameras are made of special resistant materials, even in bad weather can work properly .
  7. Infrared light board with constant current circuit design, can control the amount of heating lamp plate effectively, prolong the life of infrared light.
  8. Shell Material : Aluminum Alloy, waterproof.

Main Specifications: (1080P 2.0MP for example)


Image Sensor AHD
Horizontal Resolution 1080P
IR LED 12pcs
IR Distance 15m-20m
Lens 2.1mm/2.8mm/3.6mm options
Scanning System PAL/NTSC Options
Minimum Illumination: 0Lux/IR On
S/N Ratio ≥48dB (AGC OFF)
Video Out Composite Signal (1.0Vp-p, 75Ω), BNC
Operation Temperature -20℃~ + 70℃
Sync System Internal Synchronization
White Balance Auto
Power Supply DC 12-24V
1/3 AHD 1080P
Chip Technical Parameters
Image Sensor 1/2.9" IMX323 2.0MP Video Out


output, Support


Image System PAL/NTSC WDR auto
Resolution 1920 (H)×1080(V) SNR >45db
Min.illumination 0.01Lux full color






1/25s~1/100,000s DR 76db






Frame Rate 1920×1080@25 fps;
1920×1080@30 fps;




Humidity 95%

Lens 2.1/2.8/3.6



DC 12V +/-15%,


Why you need the side vide cameras?


Private mold 12 Infrared LED lights SONY 700 TVL CCD Car Side Rear View Camera for School Bus 0



Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white or netural color gift boxs. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q: What is the MOQ ?
A: 1 piece

Q: How fast for sample delivery?
A: 1-3 days

Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.

Q: How about the warranty period?
A: One year!

Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E.

We have a QC team with 8 years’ experience.

All of the products will run through over 4 times’ 100% testing before being delivered.
