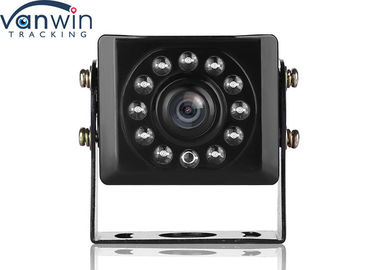

AHD 1080P HD IR Night Vision 3W Bus Surveillance Security Camera

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-348
Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month
Type: 130 Degree Wide Angle Truck Bus Car Camera AHD 1080P HD Resolution: CMOS CCD Analog/720P/960P/1080P Optional
TV System: PAL Or NTSC Test Time: Over 48 Hours
Advantage: SMT Factory Plus Strict Production Mode: AHD Camera Or Analog Camera
Waterproof: IP68 Lens: 2.8mm/1.9mm
High Light:

mobile surveillance cameras

,

cctv surveillance camera

AHD 1080P HD IR Night Vision 3W Bus Surveillance Security Camera
Image sensor specifications:
The below is only for reference,there are different chips for optional like analog CCD or CMOS chip ,AHD 720P/960P/1080P .

Feature
Bus Track VAN Cameras
Image Type
1/3" 1/4 Color CCD/CMOS
Night vision
With IR lamp
LED
18pcs
TV System
NTSC/PAL
Lens Angle (Deg.)
140 degree
IP Rating
IP69K
Connector
4P connector or RCA connector for selection
Effective Pixels
648*512 /640*480
Horizontal Resolution
420TVL/600TVL
B.L.C
Back light Compensation (Auto)
White Balance
Auto White Balance (Auto)
Minimum Illumination
0Lux (LED ON)
S/N Ratio
≥48dB
Electronic Shutter
1/60~1/100,000 Sec
Power consumption
<3W
Built-in Lens
f:1.8mm
Power Consumption
DC 5-20V
Audio
without
Operation Temperature
-30℃~+70℃.RH95% Max
Storage Temperature
-40℃~+80℃.RH95% Max
Certificate
FCC,CE,ISO9001,IATF16949, RoHs
Weight/Package
4Pin connection diagram:0.3KG



Our advantages:
We are different from other suppliers.Welcome you to test and compare .
1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.

2. Careful production Process: Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been coorperating with us all the time .
4.We explore some wide angle or special cameras to meet your requirements that others don't have.

AHD 1080P HD IR Night Vision 3W Bus Surveillance Security Camera 0
