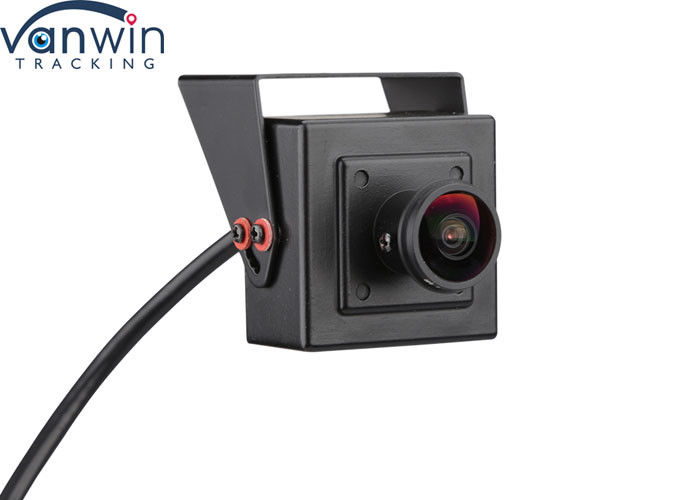

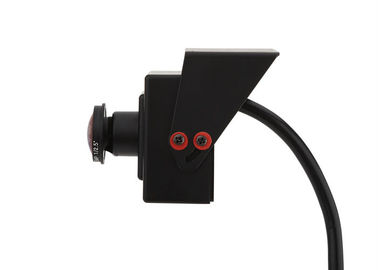

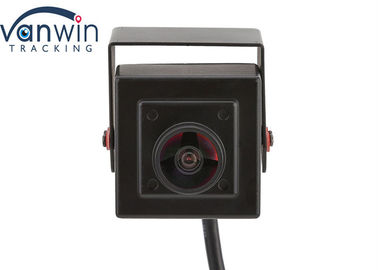

Vehicle Full HD 1080p 2.8mm Lens Mobile Surveillance Cameras
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-601 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Full HD 1080p Resolution Mobile Surveillance Cameras | Resolution: | CMOS CCD Analog/720P/960P/1080P Optional |
|---|---|---|---|
| Angle: | 130 Degree | Advantage: | SMT Factory Plus Strict Production |
| Mode: | AHD Camera Or Analog Camera | Lens: | 2.8mm/1.9mm |
| High Light: | mobile surveillance cameras,cctv surveillance camera |
||
Product Description
Full HD 1080p Resolution Mobile Surveillance Cameras Interior Camera for Vehicle
| Sensor | 1/3 AR0130 CMOS | |
| TV System | PAL | NTSC |
| Effective Resolution | PAL:1280(H)×960(V) | NTSC:1280(H)×960(V) |
| Minimum Illumination | 0.0001 LUX / F1.2 | |
| Horizontal Resolution | AHD:1.3 Mega Pixels 960P,Analog:1200 TVL | |
| Scanning Frequency | 50Hz 60Hz | |
| Gamma Value | 0.45 | |
| Electronic Shutter | 1/50～1/100000s | 1/60～1/100000s |
| SNR | >46dB | |
| Video Output | 1.0V p-p | |
| Operating Temperature | ‘-20℃ to 50 ℃ | |
| Operating Humidity | Relative humidity less than 95 % | |
| Power | DC12V (±10%) | |
The below is only for reference,there are different chips for optional like analog CCD or CMOS chip ,AHD 720P/960P/1080P .
For any same chip ,its specification is nearly the same just camera len ,camera hull ,IR different.Please tell the angle you need before order.Their price is different.
Our advantages:
We are different from other suppliers.Welcome you to test and compare .
1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.
2. Careful production Process: Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been coorperating with us all the time .
4.We explore some wide angle or special cameras to meet your requirements that others don't have.
