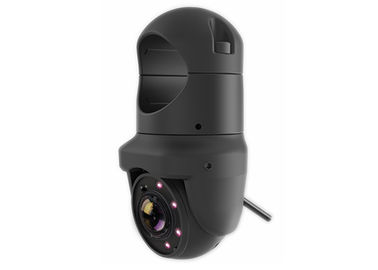

Wide View Angle 1080P 360 Degree Fisheye Car Reversing Camera
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-773 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Car Make: | Truck, Bus, Heavy Duty, Trailer And Ect. | Image Sensor: | CMOS, CCD, CMOS And CCD, AHD 1080P, 1/3" 1.3 Mega Pixels CMOS |
|---|---|---|---|
| Feature: | Waterproof, Dustproof | Waterproof: | Yes, IP69K |
| Color: | Black | IR Lights: | 6 IR Lights |
| TV System: | PAL Or NTSC | Dimensions: | 47.8*41.9*91.4(mm) |
| High Light: | mobile surveillance cameras,cctv surveillance camera |
||
Product Description
★ Support Coaxial HD output, high resolution achieve to 720P/960P/1080P
★ 3M IR Distance, Auto color to black switching function,achiveing the day and night surveillance
★ super wide angle 170°,no adjustment, no blind spot
★ Conform to IP69K waterproof grade desigh, high reliability

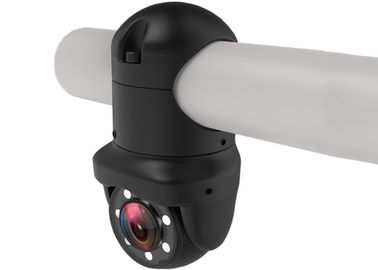

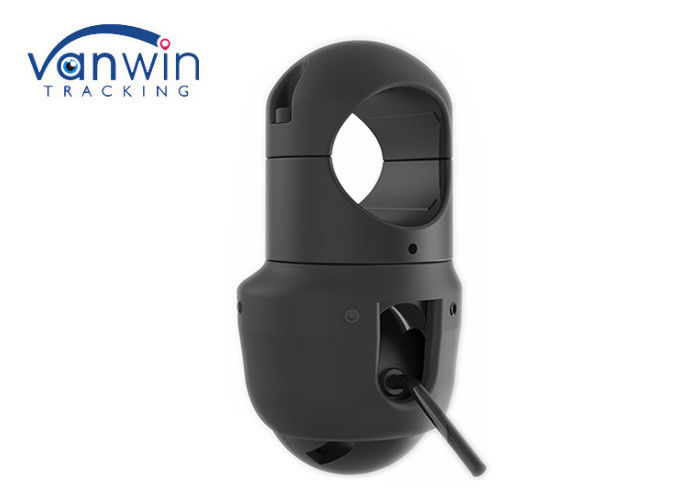

★ Side view camera which with mirror arm mount bracket and without drilling installation, commonly use in school bus,van, harvester, excavator etc
| Product Technical Parameters | |||
| Image sensor | CMOS | Starlight CMOS | CMOS |
| Horizontal Resolution | 1.3Megapixel | 1.3Megapixel | 2.0Megapixel |
| TV system | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Effective Pixel | 1280(H)*960(V) | 1280(H)*960(V) | 1920(H)*1080(V) |
| Minimum Illumination | Color 0.1Lux,0 Lux with IR | Color 0.01Lux,0 Lux with IR | Color 0.05Lux,0 Lux with IR |
| S/N ratio | ≥45dB | ≥60dB | ≥56dB |
| Day/Night mode | EXT(default),AUTO,COLOR,B/W,Support IR CUT switching | ||
| sync system | Internal | ||
| Backlight compensation | AUTO | ||
| White balance | AUTO | ||
| Electronic shutter | AUTO/1/50(1/60)-1(50,000Sec) | ||
| WDR function | ﹨ | Digital WDR | ﹨ |
| Video output | AHD(default)Standard,720P output | AHD(default)Standard,1080P output | |
| lens | 170°/150°/120°/More optional | 150°/120°/More optional | |
| IR leds Qty | 6pcs LEDs | ||
| IR distance | ≤3 meters | ||
| waterproof grade | IP69K | ||
| Operating Temp. | -20°C~+70°C, RH95%MAX | ||
| Storage Temp | -30°C~+80°C, RH95%MAX | ||
| Power supply | DC12V±10% | ||
| Power consumption | ≤2W | ||
| Dimension | 47.8*41.9*91.4(mm) | ||
How to connect the Car Camera?
Notes:
(1)Make sure the power is off before installation.
(2)Check and confirm the availability of right power supply. Wrong voltage will inflict
damage to component(s) in camera.
(3)Do not use camera in overheated and humid environment. Keep a good
ventilation so as to reduce fire and outrage.
(4)Only the professional technicians are entitled for installation and repair. By no
means, this camera shall not be repaired or dismantled on customer's own.
Manufacturer holds no responsibility in case of unauthorized repair, and use of
uncertified spare parts.
(5 )If abnormal conditions are found,please turn off the power supply and contact us.
