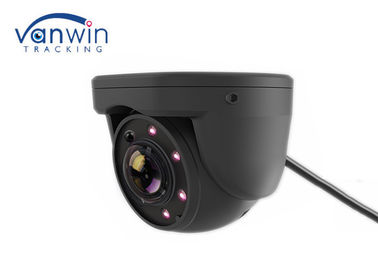

6 IR Lights Mini Coaxial HD 1.3MP Night Surveillance Dome Camera

6 IR Lights Mini Coaxial HD 1.3MP Night Surveillance Dome Camera

6 IR Lights Mini Coaxial HD 1.3MP Night Surveillance Dome Camera

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-359

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Car Make: Truck, Bus, Heavy Duty, Trailer And Ect. Image Sensor: CMOS, CCD, CMOS And CCD, AHD 1080P, 1/3" 1.3 Mega Pixels CMOS
Feature: Waterproof, Dustproof, Anti-corrosion Waterproof: Yes, IP69K
Color: Black IR Lights: 6 IR Lights
TV System: PAL Or NTSC Dimensions: 47.8*41.9*91.4(mm)
Sensor: CMOS And CCD Warranty: 12 Months
High Light:

mobile surveillance cameras

,

cctv surveillance camera

6 IR Lights Mini Coaxial HD 1.3MP Night Surveillance Dome Camera
Main Feature:

★ Support Coaxial HD output, high resolution achieve to 720P/960P/1080P
★ 3M IR Distance, Auto color to black switching function,achiveing the day and night surveillance
★ super wide angle 170°,no adjustment, no blind spot
★ Conform to IP69K waterproof grade desigh, high reliability

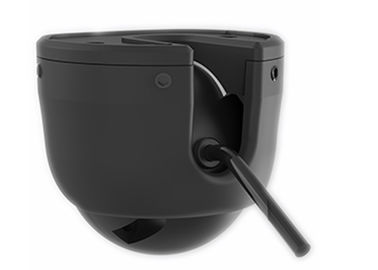

★ Side view camera which with mirror arm mount bracket and without drilling installation,

    commonly use in school bus,van, harvester, excavator etc.



Main Specifications

Image sensor CMOS Starlight CMOS CMOS
Horizontal Resolution 1.3Megapixel 1.3Megapixel 2.0Megapixel
TV system PAL/NTSC PAL/NTSC PAL/NTSC
Effective Pixel 1280(H)*960(V) 1280(H)*960(V) 1920(H)*1080(V)
Minimum Illumination Color 0.1Lux,0 Lux with IR Color 0.01Lux,0 Lux with IR Color 0.05Lux,0 Lux with IR
S/N ratio ≥45dB ≥60dB ≥56dB
Day/Night mode EXT(default),AUTO,COLOR,B/W,Support IR CUT switching
sync system Internal
Backlight compensation AUTO
White balance AUTO
Electronic shutter AUTO/1/50(1/60)-1(50,000Sec)
Video output AHD(default)Standard,720P output AHD(default)Standard,1080P output
lens 170°/150°/120°/More optional 150°/120°/More optional
IR leds Qty 6pcs LEDs
IR distance ≤3 meters
waterproof grade IP69K
Operating Temp. -20°C~+70°C, RH95%MAX
Storage Temp -30°C~+80°C, RH95%MAX
Power supply DC12V±10%
Power consumption ≤2W
Dimension 47.8*41.9*91.4(mm)



The package per box:



It includes one car camera, 3pcs screws, 2pcs L hexagon wrenchs and one user manual.

6 IR Lights Mini Coaxial HD 1.3MP Night Surveillance Dome Camera 0

Notes:

(1)Make sure the power is off before installation.
(2)Check and confirm the availability of right power supply. Wrong voltage will inflict
damage to component(s) in camera.
(3)Do not use camera in overheated and humid environment. Keep a good
ventilation so as to reduce fire and outrage.
(4)Only the professional technicians are entitled for installation and repair. By no
means, this camera shall not be repaired or dismantled on customer's own.
Manufacturer holds no responsibility in case of unauthorized repair, and use of
uncertified spare parts.
(5 )If abnormal conditions are found,please turn off the power supply and contact us.
