H.265 4CH Camera 1080P 256GB digital video recorder sd card DVR

H.265 4CH Camera 1080P 256GB digital video recorder sd card DVR

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW504HD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month, Google map GPS car tracking system 4 channel 1080P mobile dvr support dual sd cards 256g
Get Best Price Contact Now

Detail Information

Features: 4G, WIFI, GPS Optional, Basic Monitoring Power Supply: 8V-36V
CVBS: Support OEM/ODM: Support
Weight: 0.75kg Video Format: H265
Dimensions: 140*116*35MM Alarm Inputs: 4CH Level Alarm Inputs
Storage: Support Max 2*256G Cameras: Analog/720P/960P/1080P
Video Compression: H.265 Compression Mode Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
High Light:

4 Channel Car Dvr Recorder


H.265 Sd Card Dvr Recorder

Product Description

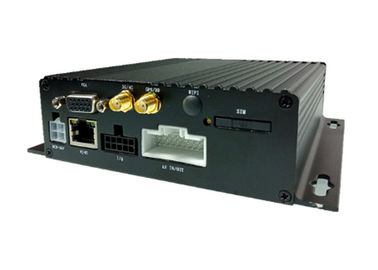

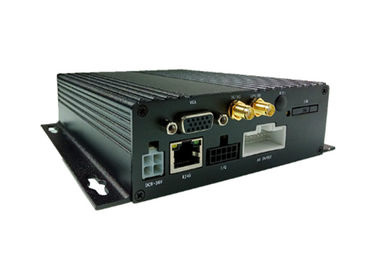

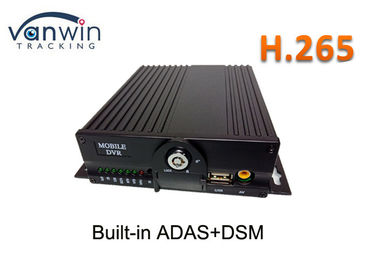

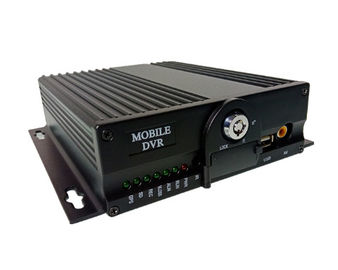

H.265 4CH Camera 1080P 256GB digital video recorder sd card DVR
It is a small device to monitor the vehicles what happens inside and outside.

1. The MDVR case comes with very strong aluminum alloy, very strong and sturdy.
2. It can support both AHD/Analog Camera, 1080P/720P/D1 recording.
3. The MDVR increases Video Protection Trchnology, UPS technology and World Class Anti-Vibration Technology to protect the DATA when accident. It's very important for the vehicle security monitoring.
4. G-sensor function record the crash level in car accident, thus for people to analyse the reason of car accident.
5. support ADAS+DSM
The complete system includes
1. One 4CH 1080P SD Card Mobile DVR with 4G GPS WIFI for Option
2. 4PCS 1080P/960P/720P Car cameras
3. Extension cables
4. Car monitor for Option

Main Features


1. H.265 video compression, multi code stream.

2. Support 4CH 1080P/720P HD real-time video inputs or mixed inputs.

3. 1CH VGA output is optional.

4. With exclusive pre-allocated type vehicle file system technology.

5. 8-36V wide voltage power supply, super low power consumption.

With overload/ under voltage/ short-circuit/ reversing protection, support all vehicles.

6. Support dual SD cards, at maximum 256G for single SD card

7. With watchdog abnormal restart protection function, it can better protect the machine and video.

8. Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).

9. Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.

10. Support 4CH alarming inputs and 1CH independent alarm input.

11. Optional for 1CH RS232 Serial port or 1CH RS485 extension.

12. Support GPS/G-Sensor. 13.Support remote operation and monitoring by 3G.

14. Support ministry of communications agreement, support SMS remote configuration and equipment control.

15. Support voice broadcast, intercom and text schedule dispatch.

16. Support fuel sensor, temperature sensor, POS, LED advertising screen.

17. Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.

18. With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.

19. support ADAS+DSM

20. Support all vehicles, including bus, taxi, truck, school bus, etc.

Main Specifications

Operating System Linux
Language English, Chinese or Customized language.
Video Compression H.265
OSD Support for time, date, vehicle ID, image, etc.
GUI OSD Interface Can external connect to LCD and set the system specifications by remote

and Recording

Video Input

4CH 720P AHD/Analog/Compound video input, aviation connector,
1.0Vp-p, 75Ω

Video Output

1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω.
Support 1CH full screen and 4CH division.


Single/4CH Pictures Preview, support full screen of event trigger or
back view of car reversing


Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 1080P


Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest.
Video Rate

PAL:100 fps,CCIR625line,50 scenes
NTSC:120 fps,CCIR525line,60 scenes
CIF:256Kbps - 1.5Mbps,8 grades image quality for optional
HD1:600Kbps - 2.5Mbps,8 grades image quality for optional
D1:800Kbps - 3Mbps,8 grades image quality for optional
720P:800Kbps - 4Mbps,8 grades image quality for optional

Recording Mode

Default automatic video recording, support ignition video recording,
schedule video recording, alarm video recording, etc

Audio Audio Input 4CH Aviation connector inputs
Audio Output 1CH Aviation connector output,
Compression format G.726, Speed for 8KB/s
Alarm Input 4CH level alarm inputs
Video Storage Storage Support at maximum 1*256G high capacity SD card


Support SD card local upgrade, remote upgrade automatically
File Format H.265 general video format
File System FAT32 exclusive file system
Video Playback Video Search Search recorded video files by recording time and recording method
Playback Support at max 4 channel synchronous playback, suspend, forward, backward
Support 2/4/8/16 times speed forward or backward
Security Management User Password or administrator password management, support screen locked
Expansion functions Series port expansion Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc

Power and

Power Management

Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc

Power and Consumption Input Voltage DC:+8V - +36V
Output Voltage +12V/1.5A,+5V/1.5A
Consumption Normal working < 14W, standby < 0.5W
Working environment Temperature -30℃ - +70℃
Humidity 20% - 80%
SD Card Type Series Dimension 140*116*35MM
