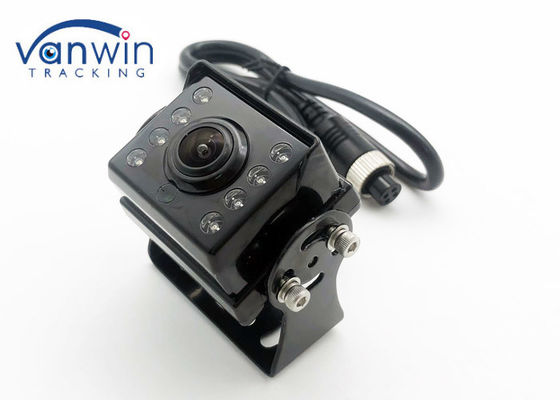

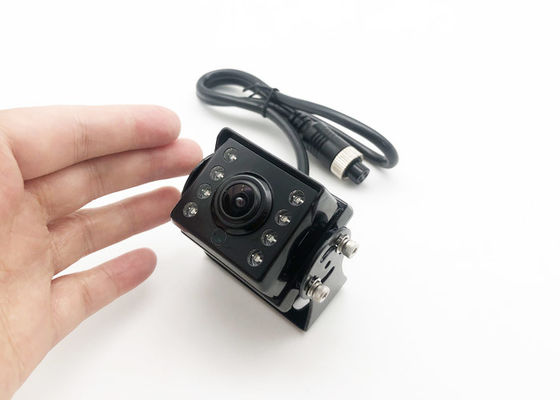

BNC Connector 1.3MP CMOS 3.6mm Lens Truck Reverse Camera

BNC Connector 1.3MP CMOS 3.6mm Lens Truck Reverse Camera

BNC Connector 1.3MP CMOS 3.6mm Lens Truck Reverse Camera
BNC Connector 1.3MP CMOS 3.6mm Lens Truck Reverse Camera

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-345

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Type: Truck Reverse Camera Lens: 2.1mm/2.8mm/3.6mm
TV System: PAL Or NTSC Test Time: Over 48 Hours
Waterproof: IP68 IR Lights: 8pcs
Style: Mini Waterproof Camera Connector: 4 PIN Or RCA BNC Connector
Mode: AHD Camera Or Analog Camera Advantage: SMT Factory Plus Strict Production
Sensor: AHD 1080P,1/3" 1.3 Mega Pixels CMOS Resolution: CMOS CCD Analog/720P/960P/1080P Optional
High Light:

3.6mm Lens Truck Reverse Camera

,

1.3MP CMOS Truck Reverse Camera

,

BNC Connector Car Reversing Camera

Private mold 1080P mini 130 degree Truck Reverse camera with 4PIN, BNC, RCA connector

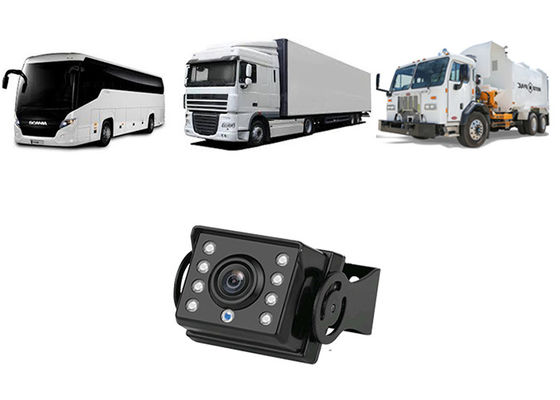

VW-345 with mini size and wide angle is widely used for ligger vehicle like truck, bus, van as the reversing/front camera.

It can support Analog CCD 600TVL/700TVL or AHD 720P/960P/1080P for option with 4pin/BNC/RCA connector.

There is also different lens and chips to meet different customers' requirement.



Our advantages



We are different from other suppliers.Welcome you to test and compare.


1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.

2. Careful production Process:

Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing


3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been coorperating with us all the time .


4.We explore some wide angle or special cameras to meet your requirements that others don't have.

Our 1080P Truck reverse camera main features for 1080P chip:

  • Adopt 1080P 2.0MP San CMOS, can capture moving images

  • Support AHD / TVI / CVI coaxial HD output, with clear and delicate image

  • Illumination 0.01Lux @ (F1.2, AGC ON), 0LUX with IR

  • Support IR-CUT switch, CDS external control, realize day and night monitoring

  • Support OSD menu control, suitable for users to define settings

  • Support Digital Wide Dynamic

  • Adapt to digital noise reduction, 3D-DNR, 2D-DNR

  • Support UTC function

  • Video 6KV lightning protection, power capacitor design

  • Support DC 6-15V wide voltage supply

  • 32x32/38x38 (mm )

  • SIZE :(mm / 0.3mm)

BNC Connector 1.3MP CMOS 3.6mm Lens Truck Reverse Camera 0

Main Specifications



Technology infrared
Sensor AHD 1080P
Shape Box camera
Types rear view camera
Waterproof IP67
Audio Optional audio
Lens 2.1MM/2.8MM/3.6MM
IR LED 8PCS
Power DC12V/24V
Color Black
Connector 4 PIN connector or RCA connector
Material aluminium alloy
Effective Pixels 720P 1.0MP/960p 1.3MP/ 1080P 2.0MP
Operating Temperature -25℃~70℃
