700TV Lines Tractor 1080P 2.8MM Lens Bus Surveillance Night Vision Car Camera with 4pin
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-228 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |

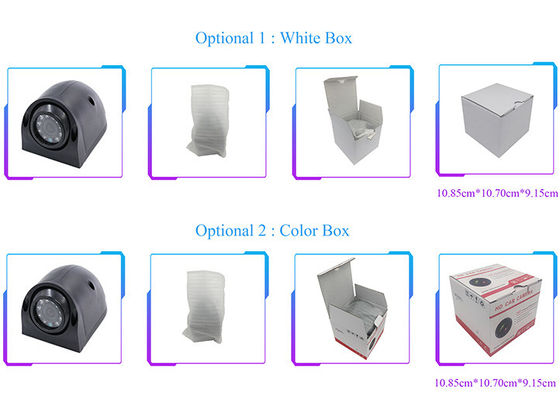

| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Night Vision Car Camera | Resolution: | 720P / 960P / 1080P |
|---|---|---|---|
| Power: | DC12 Or 24V | TV System: | PAL Or NTSC |
| Camera Lens: | 2.1MM/ 2.8MM / 3.6MM | Connector: | BNC Or RCA Or 4pin |
| Feature: | Waterproof, Dustproof | Angle Lens: | Can Be Adjusted |
| Viewing Angle: | 120 Degree | Warranty: | 12 Months |
| Highlight: | 2.8MM Lens Bus Surveillance Camera,BNC Connector Bus Surveillance Camera,700TV Lines Tractor Dvr Camera |
||
Product Description

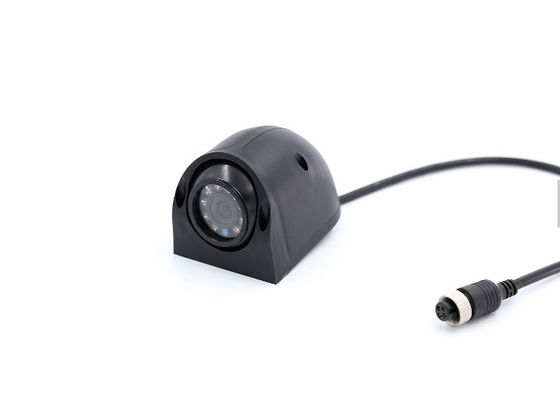

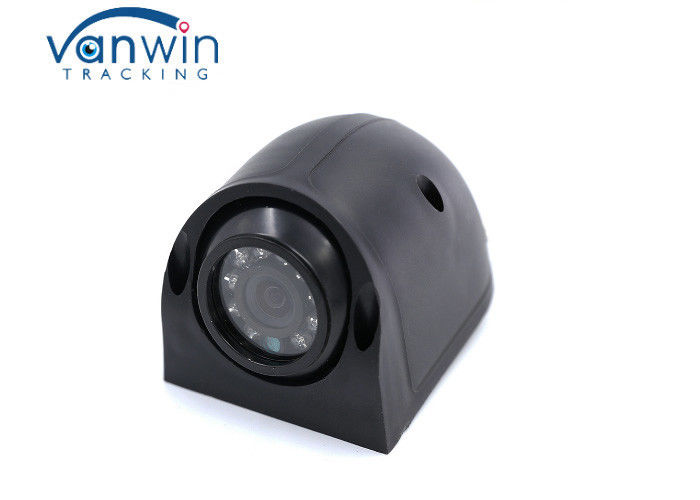

700TV Lines Tractor 1080P 2.8MM Lens Bus Surveillance Night Vision Car Camera with 4pin
The night vision car camera is our private mold. It's hot selling with wide angle, adjustable lens, strong quality which can be used for left and right side for many vehicles, like bus, truck, van and ect.
- Side / Rear View Camera for Heavy-duty or Bus
- Analog 600TVL/700TVL/800TVL or AHD 720P/960P/1080P for options
- 10 PCS Infrared LED lights
- CE,FCC,RoHS Certificates
- Private Mold
- Angle can be adjusted
- Wide horizontal angle degree
- BNC / 4PIN / RCA connector for Option
Technical Specification
| AHD Cameras:VW-208 | |
| Technology | infrared |
| Sensor | AHD 1080P |
| Shape | Streamlined camera |
| Types | side view camera |
| Waterproof | IP67 |
| Audio | Optional audio |
| Lens | 2.1MM/ 2.8MM / 3.6MM |
| IR LED | 10PCS |
| Power | DC12V/24V |
| Color | Black |
| Connector | 4 PIN connector or RCA connector |
| Material | aluminium alloy |
| Effective Pixels | 720P/960P/1080P |
| Operating Temperature | -25℃~70℃ |
| Warranty | 1 Years |
1/3 AHD 1080P
| Chip Technical Parameters | |||
|
Image Sensor |
1/2.9" IMX323 2.0MP |
Video Out |
1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
|
Image System |
PAL/NTSC | WDR | auto |
| Resolution | 1920 (H)×1080(V) | SNR | >45db |
|
Min. illumination |
0.01Lux full color |
White Belance |
AWB |
|
Electronic Shutter |
1/25s~1/100,000s | DR | 76db |
|
Video Standard |
AHD |
Advanced Function |
2D_DNR |
|
Frame Rate |
1920×1080@25 fps; 1920×1080@30 fps; |
Working Environment |
-25℃~+70℃, Humidity 95% |
| Lens | 2.1/2.8/3.6 |
Power supply |
DC 12V +/-15%, |

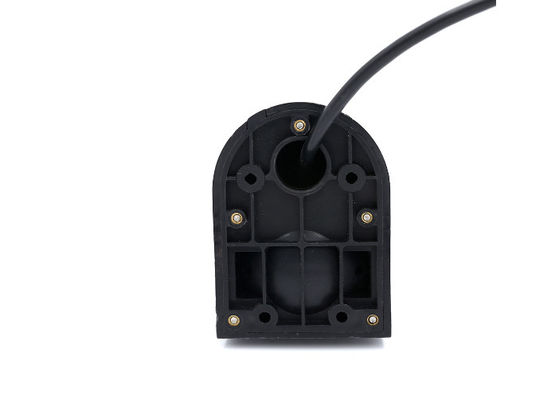

Product details
Installation Cases
