| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-380 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; Waterproof Bus / Truck HD Car Side Surveillance Camera 1080P with Good night Vision |
| Type: | IP Side Camera | TV System: | PAL Or NTSC |
|---|---|---|---|
| Power: | DC12 Or 24V | LED: | 10 IR Lights |
| Color: | Black | Waterproof: | Yes |
| Image Sensor: | CMOS CCD AHD IP For Optional | Sensor: | 1/3＂AHD CMOS 1080P, 0.01Lux/F1.2 |
| Application: | For Mobile NVR | Warranty: | 12 Months |
| High Light: | 2.8mm Megapixel CCTV Security Camera,CMOS CCD CCTV Security Camera,0.5Lux IP Rear view Camera |
||
| Main Stream | HD 1920*1080P 1-25fps |
| Megapixel Lens | 2.8mm/3.6mm |
| IR LED & Visible Range | IR LED 18pcs Φ5mm (850nm/60°), Max.10-15m |
| Day & Night System | Mechanical ICR |
| Min. Illumination | 0.5Lux(Color) / 0 Lux IR On |
| Brightness | Auto/Manual |
| Mirror | Yes |
| Heatbeat Message | Yes |
| Compression | H.264/MJPEG |
| Code Stream | 128Kbps~8Mbps, VBR/CBR |
| Audio | N/A |
| Protocol | HTTP, TCP/IP, UDP, SMTP, DDNS, DNS, SNTP, DHCP, FTP, RTP, RTSP, UPNP, ONVIF |
| DDNS | |
| Yes | |
| LAN Interface | Ethernet 10/100 base-T, RJ45 x1 |
| Support P.o.E | POE: 802.3a/f , Transmission distance <100m (Optional) |
| After Event Process | Upload JPEG via FTP, Email or specified alarm center |
| ONVIF Standard Access | ONVIF V2.0/V.2.2/V.2.3/V2.4 |
| Motion Detection | Yes, Support Multiple Setting Areas |
| System Upgrade | Yes, Firmware upgrade |
| PTZ Control | Not Applicable for Fixed Cameras |
| Power | DC12V, 0.3A |

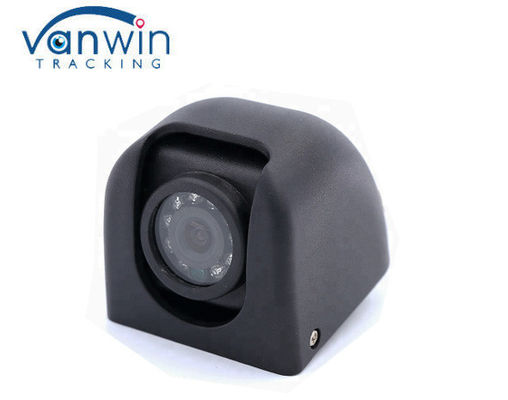

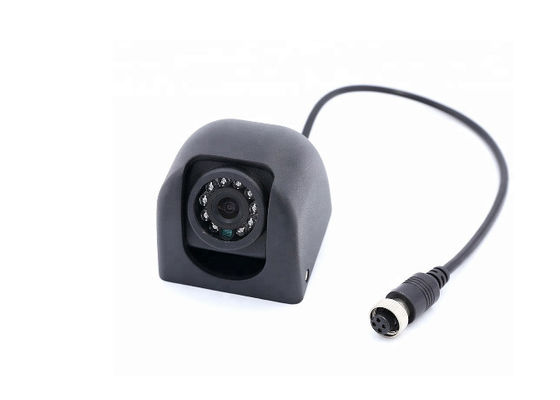

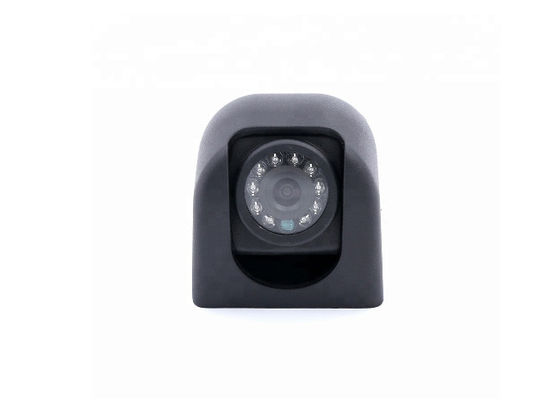

CCTV Security Camera Mental Housing IP Side / Rear view Camera for Truck
The bus / truck side camera is new arrival which can be used for many vehicle, like van, truck, school bus, city bus with good night vision and special design. It can work with mobile dvr, dvr, monitor or other monitoring/reversing system.
Main Features
Specifications
| Main Stream | HD 1920*1080P 1-25fps |
| Megapixel Lens | 2.8mm/3.6mm |
| IR LED & Visible Range | IR LED 10pcs Φ5mm (850nm/60°), Max.10-15m |
| Day & Night System | Mechanical ICR |
| Min. Illumination | 0.5Lux(Color) / 0 Lux IR On |
| Brightness | Auto/Manual |
| Mirror | Yes |
| Heatbeat Message | Yes |
| Compression | H.264/MJPEG |
| Code Stream | 128Kbps~8Mbps, VBR/CBR |
| Audio | N/A |
| Protocol | HTTP, TCP/IP, UDP, SMTP, DDNS, DNS, SNTP, DHCP, FTP, RTP, RTSP, UPNP, ONVIF |
| DDNS | Yes |
| LAN Interface | Ethernet 10/100 base-T, RJ45 x1 |
| Support P.o.E | POE: 802.3a/f , Transmission distance <100m (Optional) |
| After Event Process | Upload JPEG via FTP, Email or specified alarm center |
| ONVIF Standard Access | ONVIF V2.0/V.2.2/V.2.3/V2.4 |
| Motion Detection | Yes, Support Multiple Setting Areas |
| System Upgrade | Yes, Firmware upgrade |
| PTZ Control | Not Applicable for Fixed Cameras |
| Power | DC12V, 0.3A |
Applications
It can be installed for any vehicle especially truck, bus.
