CMS Platform 9~32V H265 4CH Dual SD Card MDVR With USB Mouse

Basic Information
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW504HD-GSW
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month, 9~32V H265 4CH Basic Dual SD card MDVR with USB Mouse Operation for Vehicle
Power Supply: 8V-36V CVBS: Support
AHD Cameras: Analog/720P/960P/1080P Video Compression: H 265
Battery: Rechargable Mouse Operation: Support
AVI Format: Support VGA Input: Support
Storage Capacity: Dual SD Card, Max Support 2*256G SD Cards Application: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
High Light:

4CH Dual SD Card MDVR


H265 Dual SD Card MDVR


CMS Platform Vehicle Mobile DVR

9~32V H265 4CH Basic Dual SD card MDVR with USB Mouse Operation for Vehicle


It is a small device to monitor the vehicles what happens inside and outside. H.265 compression 4 channel 1080P Mobile DVR, it works with 2pcs 128GB/256GB sd cards memory, support VGA/CVBS video output. This DVR works with AHD and analog cctv camera.


Main Features:
Max support 2pcs 128GB sd card memory used
Support 128GB SD card ( only used for upgrade software )
1080P (1920X1080) video resolution
PAL 100F/S. NTSC 120F/S
Works with AHD and analog cameras
Support VGA/CVBS video output
6 channel alarm input and 2 outputs
Built in capacitor,used for save the last video file when power off suddely
Support Fuel inspection monitoring (Need pay extra)
Support intercom with CMS platform ( Need pay extra )
Support WIFI for view online video no support download video file ( Need pay extra )
8V-36V power input

The complete system:
1. One MDVR with 3G GPS WIFI G-sensor for Option
2. 1~4 Analog/ AHD cameras with extension cables
3. One monitor for the driver
4. Dual SD cards 2*128GB/256GB

Highlighted features with 3G/4G/WIFI network

l Remotely Live view & GPS tracking on Google Map;

l GPS track playback;

l Geo-fencing with optional GPS receiver;

l One picture will be sent to server as well as email alert when an alarm is triggered;

l Reports for Speed, Alarm, Stop, Geo-fencing, Data flow, etc.

WIFI auto download


The small size 4-Channel SD Card DVR

Size of the 4CH HD MDVR is very compact, only 175mm(L)*150mm(W)*40m(H), allowing for exceptional versatility in mounting and installation. With a compact footprint and design, the 1080P High Definition Bus Camera Recorder can be mounted almost anywhere in any orientation.



l 1080P/720P High Definition DVR with WiFi and G-Force Sensor built-in (no extra cost)

l Up to 4 1080P/720P High Definition Cameras

l Extension Cable (5m and 10m for option, or customized-made length according to your application)

l Class 10 SD Card


Reliable Partnerof Your Mobile Video Solution

Vanwin Tracking has been in the industry of Mobile DVRs & Cameras since 2008. With more than 10-year industry & engineering experience in this industry, you will be guaranteed with reliable products at reasonable pricings, fast technical supports & good after service.

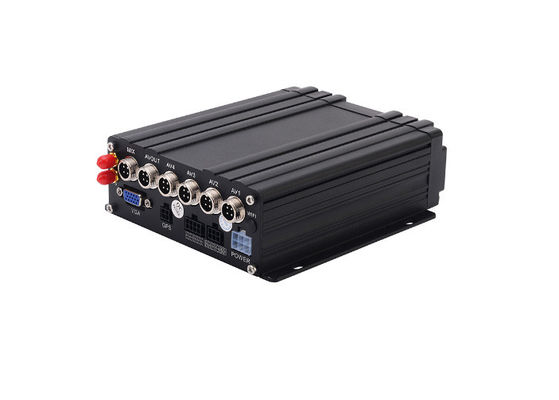

CMS Platform 9~32V H265 4CH Dual SD Card MDVR With USB Mouse 0

Main Specifications


Item Data
System Linux
TV Mode Pal / NTSC
Compression H.265
Resolution 1920x1080
Frame Pal: 25f/s each channel
NTSC: 30f/s each channel
Special function 4G/GPS/WIFI
CMS Software Offered for free
Recording mode Power up, manual, scheduled,
motion detection, alarm
Memory type SD card. (Class 10)
Max. memory 2pcs 128GB sd card
Video input 4 channel
Audio output 1 channel
System upgrade Support (SD card only for upgrade)
Power input 8V-36V
Power output 12V
Working temperature -40℃ to 80℃

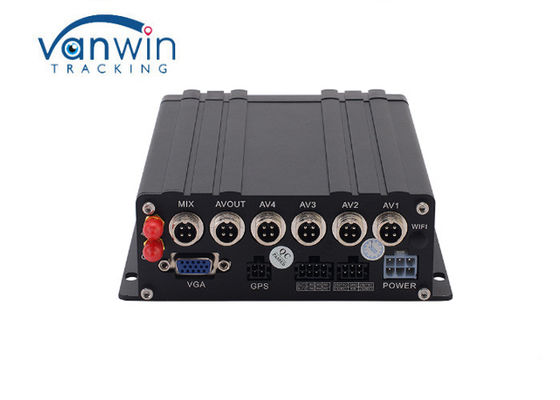

CMS Platform 9~32V H265 4CH Dual SD Card MDVR With USB Mouse 1

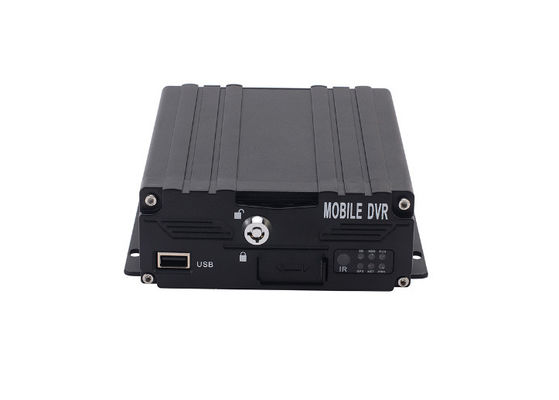

CMS Platform 9~32V H265 4CH Dual SD Card MDVR With USB Mouse 2
