NTSC 1080P CVBS 3.6mm 6.0mm Lens Side View Camera 4 PIN
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-206 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Side View Camera | Resolution: | 720P / 960P /1080P |
|---|---|---|---|
| Lens: | 2.8MM / 3.6MM / 6.0MM | Feature: | Waterproof, Dustproof |
| Material: | Metal Housing | Color: | Housing Black |
| Viewing Angle: | 120 Degree | TV System: | PAL Or NTSC |
| Power: | DC12 Or 24V | Service: | OEM/ODM |
| High Light: | 6.0mm Lens Side View Camera,CVBS Side View Camera,NTSC 4 PIN Surveillance Camera |
||
Product Description

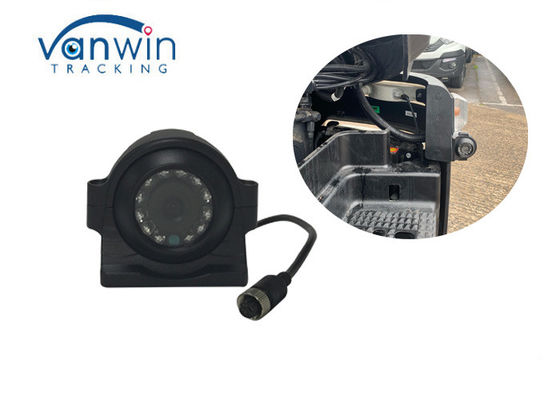

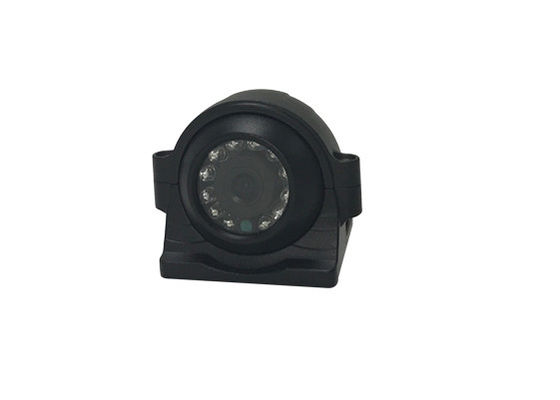

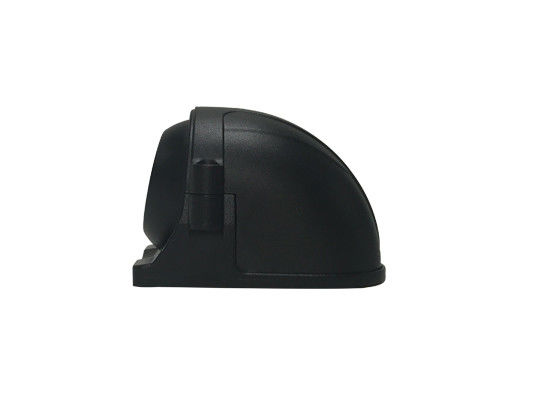

Sturdy Metal Housing Sony 1080P side view AHD Camera 3.6mm, 6.0mm lens with 4PIN
The camera is used with Mobile DVR / Car DVR (with 3G, 4G, GPS,WiFi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, taxi, school, bus, truck, police car, tour bus, tanker truck, escort car etc.
Main Specifications
| Chip Technical Parameters | |||
|
Image Sensor |
1/2.9" IMX323 2.0MP |
Video Out |
1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
|
Image System |
PAL/NTSC | WDR | auto |
| Resolution | 1920 (H)×1080(V) | SNR | >45db |
|
Min. illumination |
0.01Lux full color |
White Belance |
AWB |
|
Electronic Shutter |
1/25s~1/100,000s | DR | 76db |
|
Video Standard |
AHD |
Advanced Function |
2D_DNR |
|
Frame Rate |
1920×1080@25 fps; 1920×1080@30 fps; |
Working Environment |
-25℃~+70℃, Humidity 95% |
| Lens | 2.1/2.8/3.6/6.0MM |
Power supply |
DC 12V +/-15% |
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white or netural color gift boxs.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the MOQ ?
A: 1 piece
Q: How fast for sample delivery?
A: 3-7 days
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the price.
Q: How about the warranty period?
A: 12 Months.
Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E.
We have a QC team with 8 years' experience.
All of the products will run through over 4 times' 100% testing before being delivered.
Timely after sales service.
Wide Applications
